CFD Optimized Francis Hydro Turbine Generator Customizable 100KW to 20MW Power Output Achieving 90 Percent Efficiency

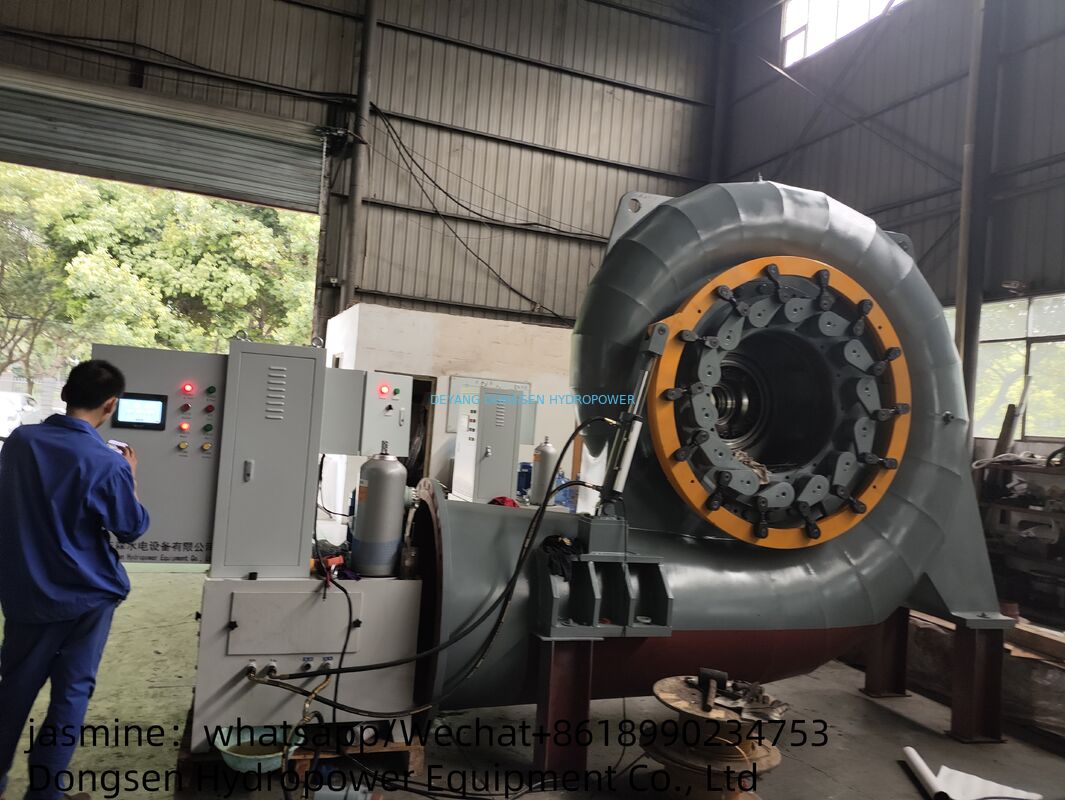

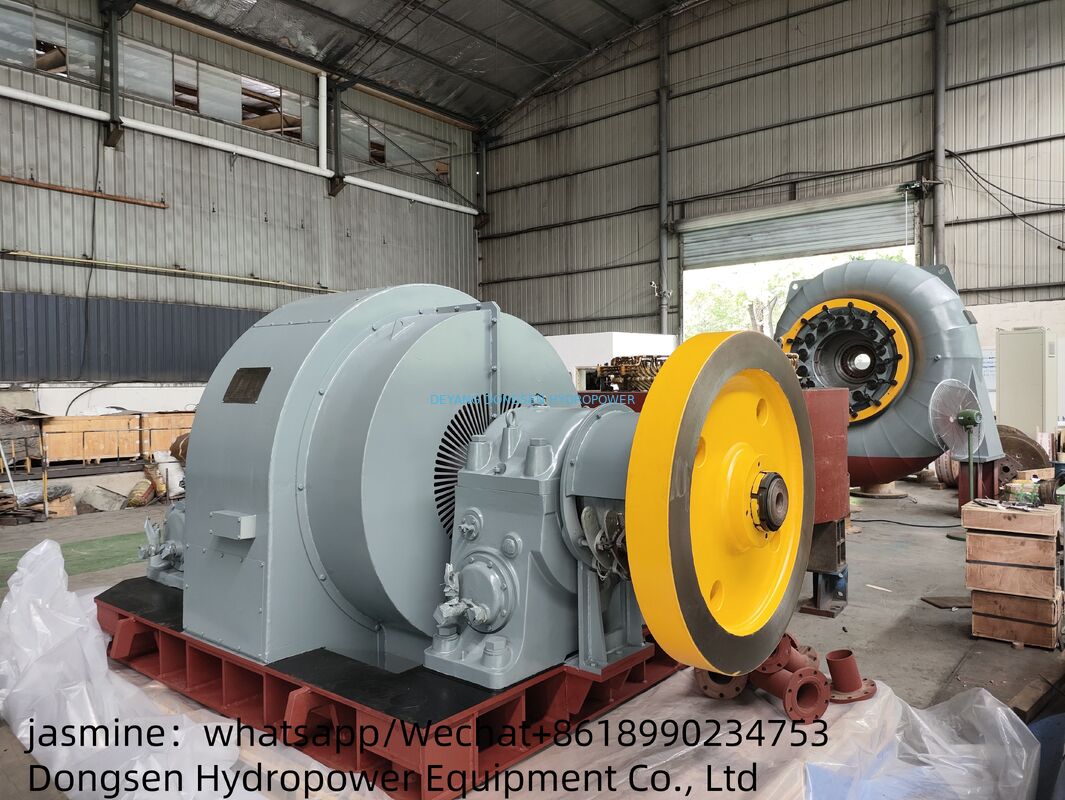

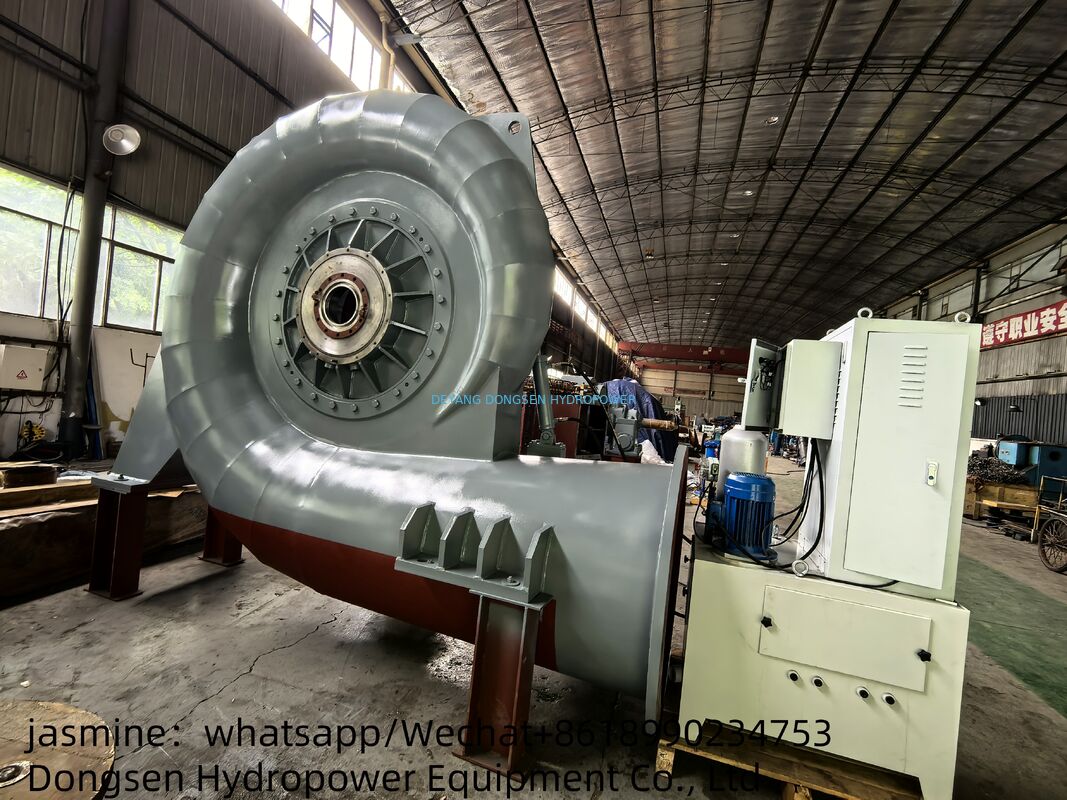

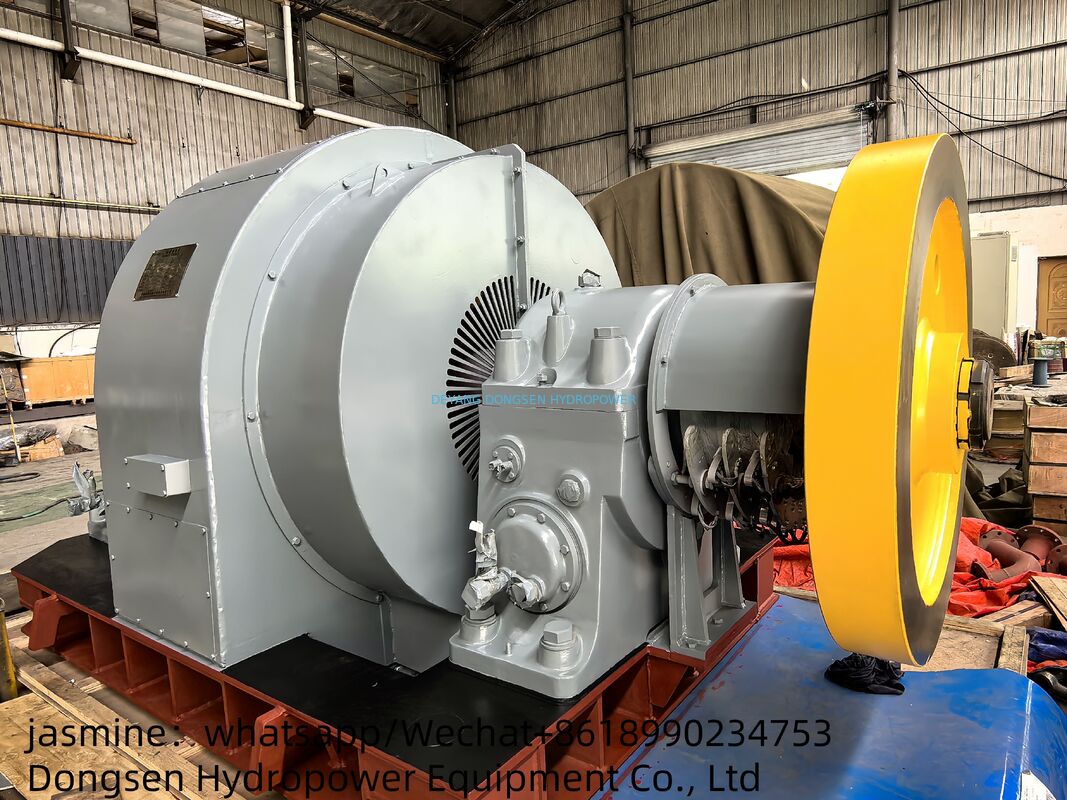

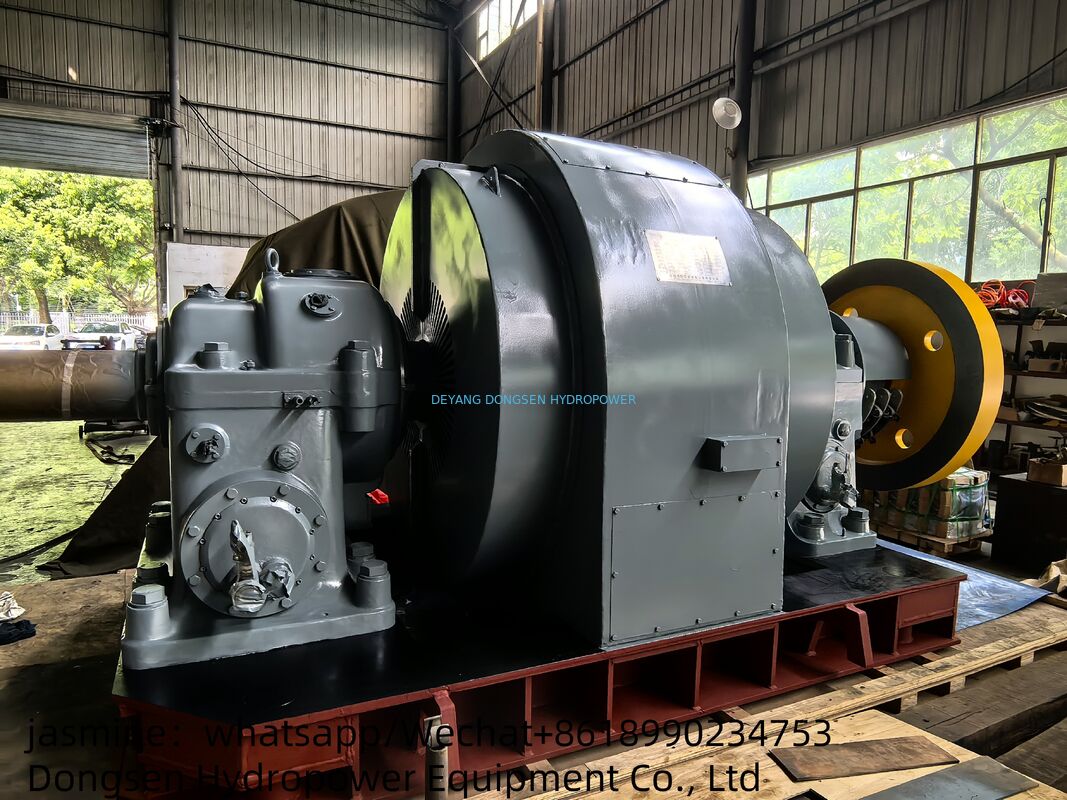

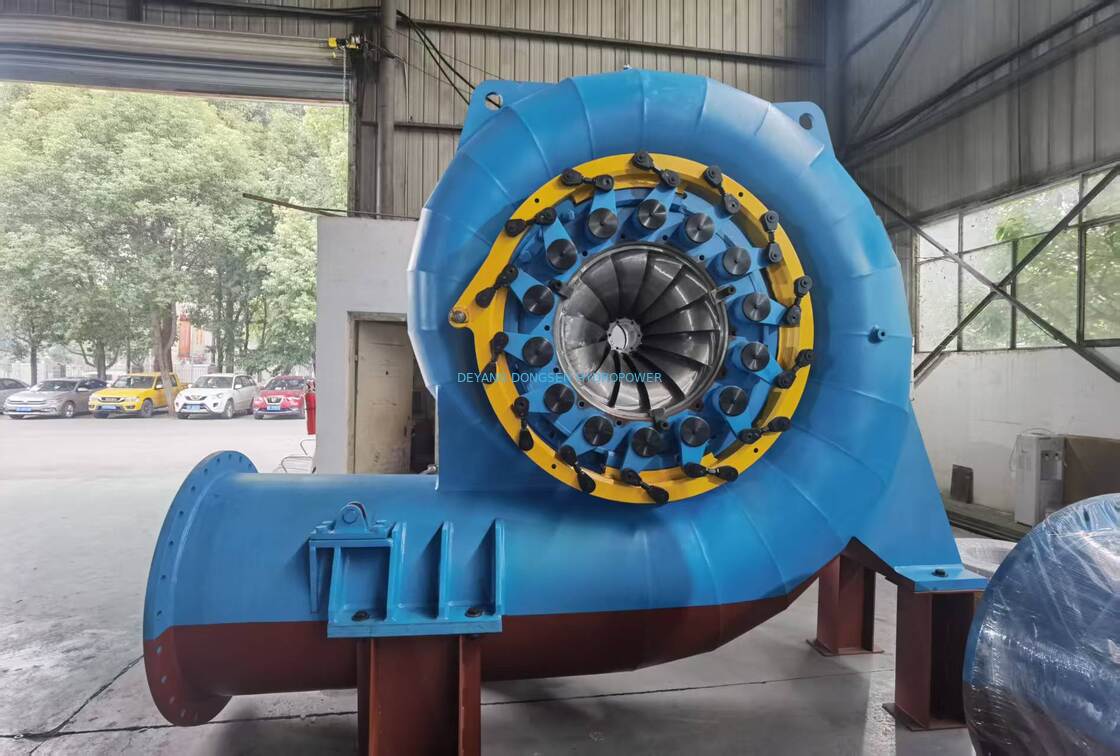

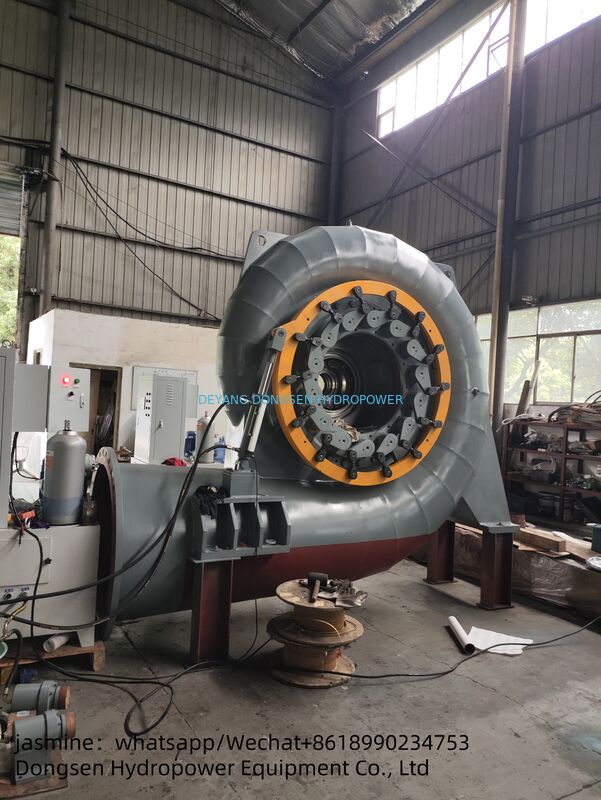

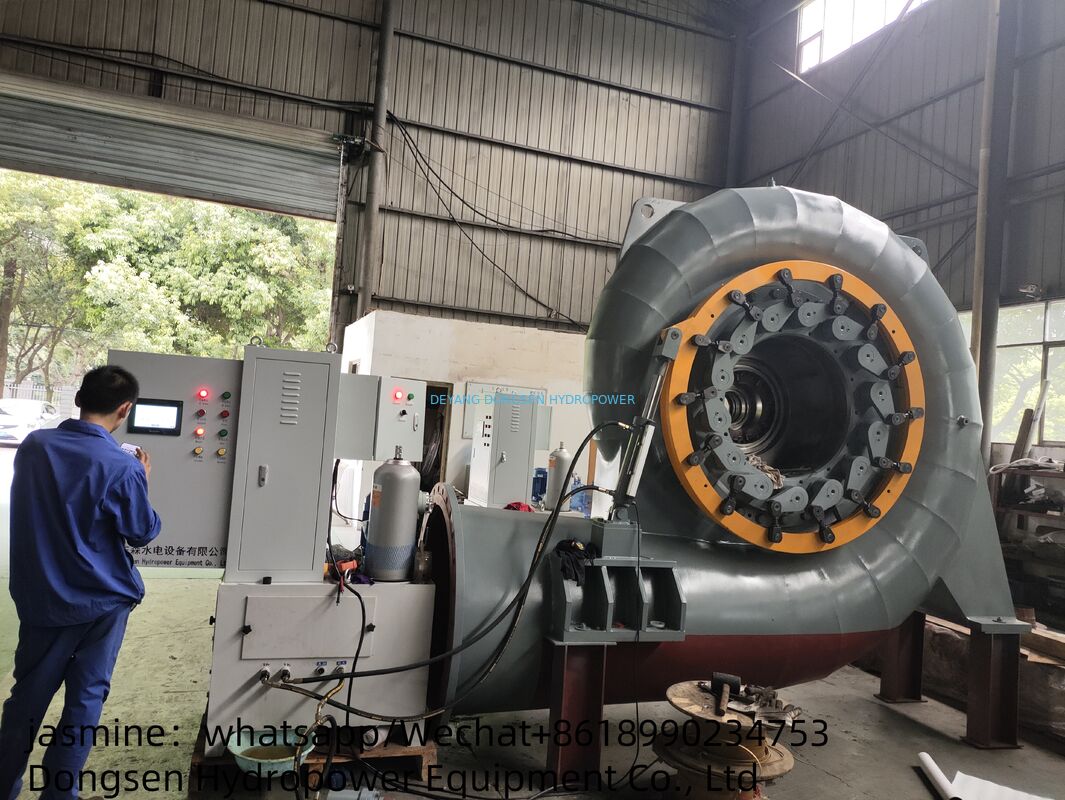

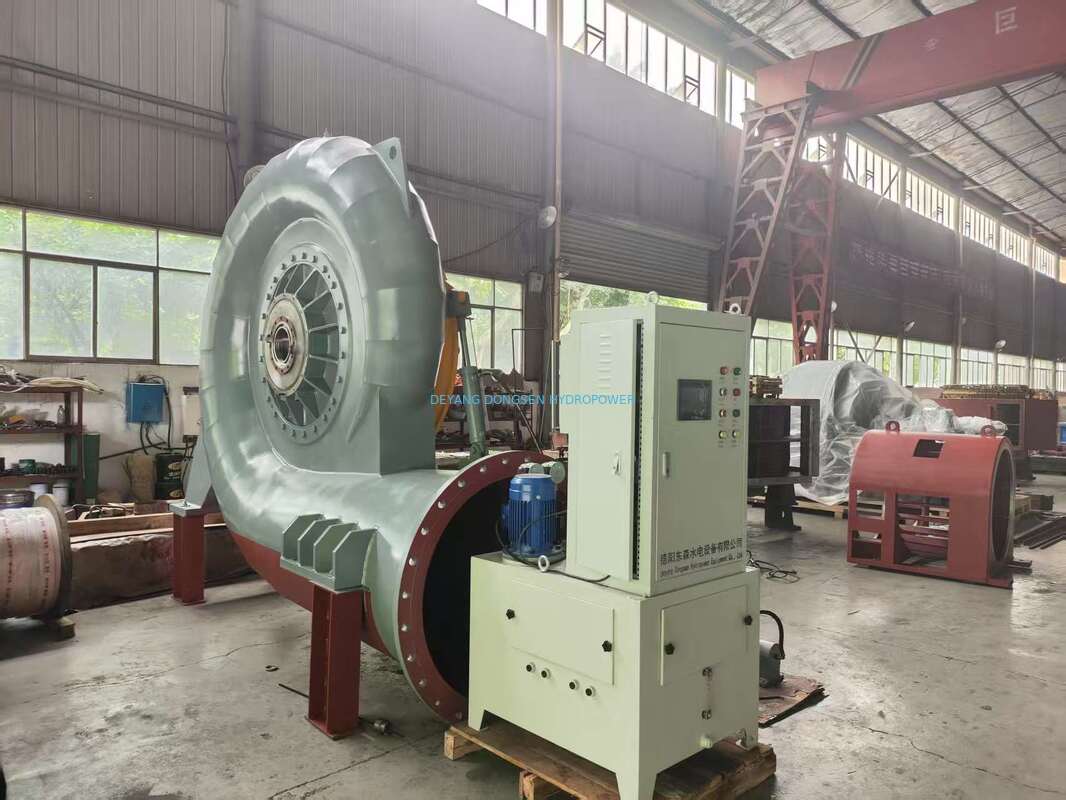

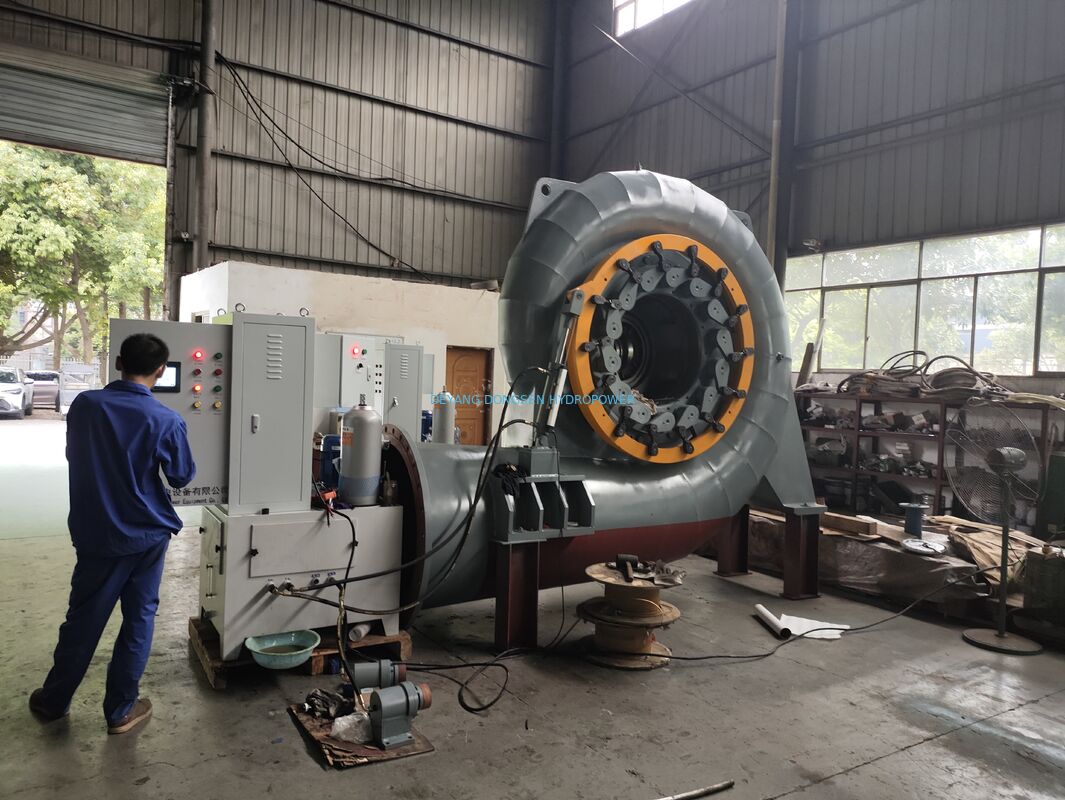

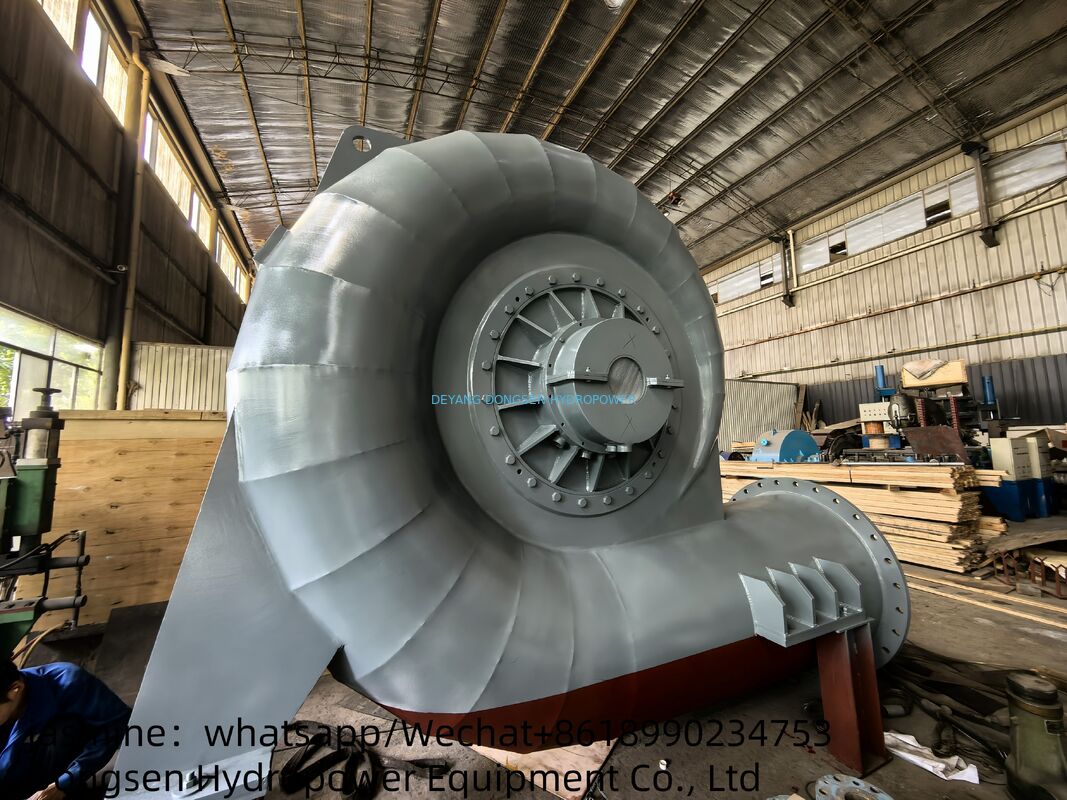

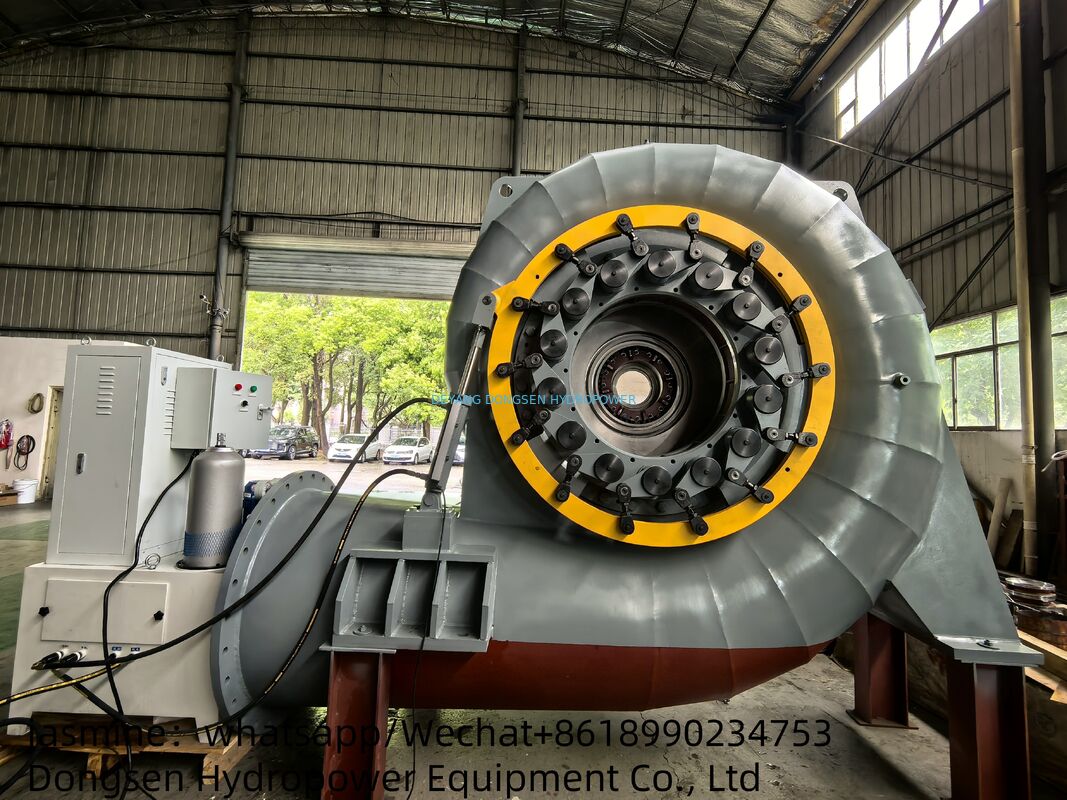

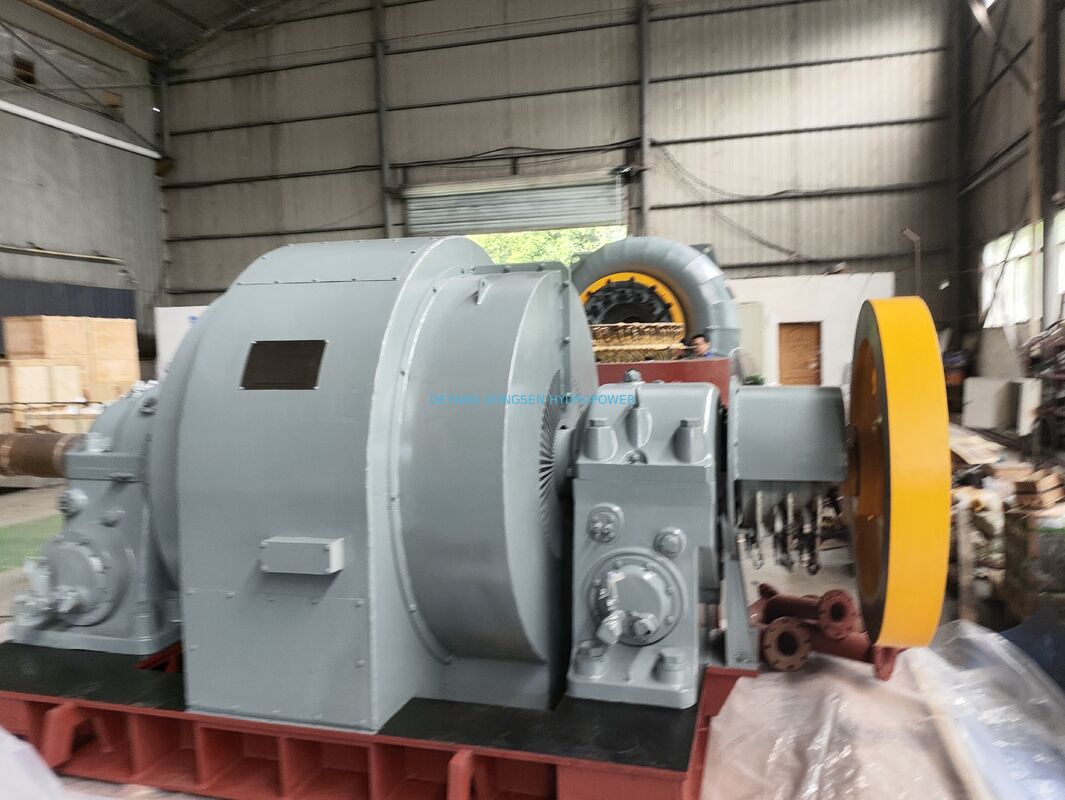

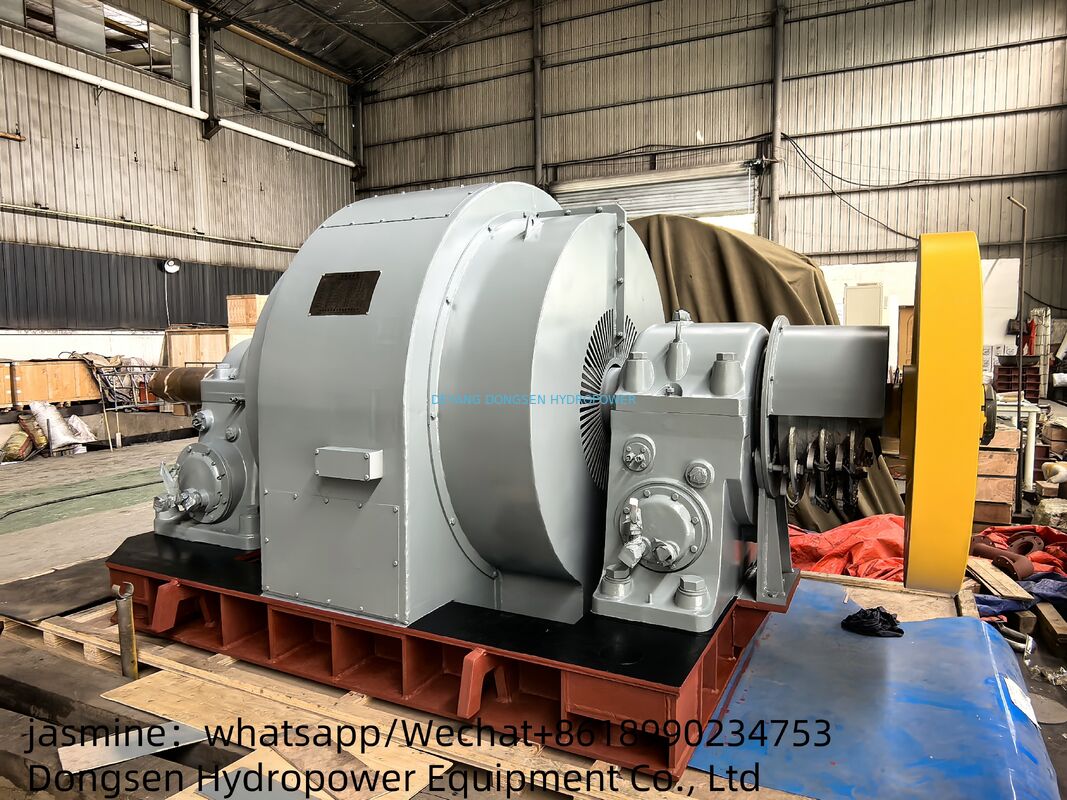

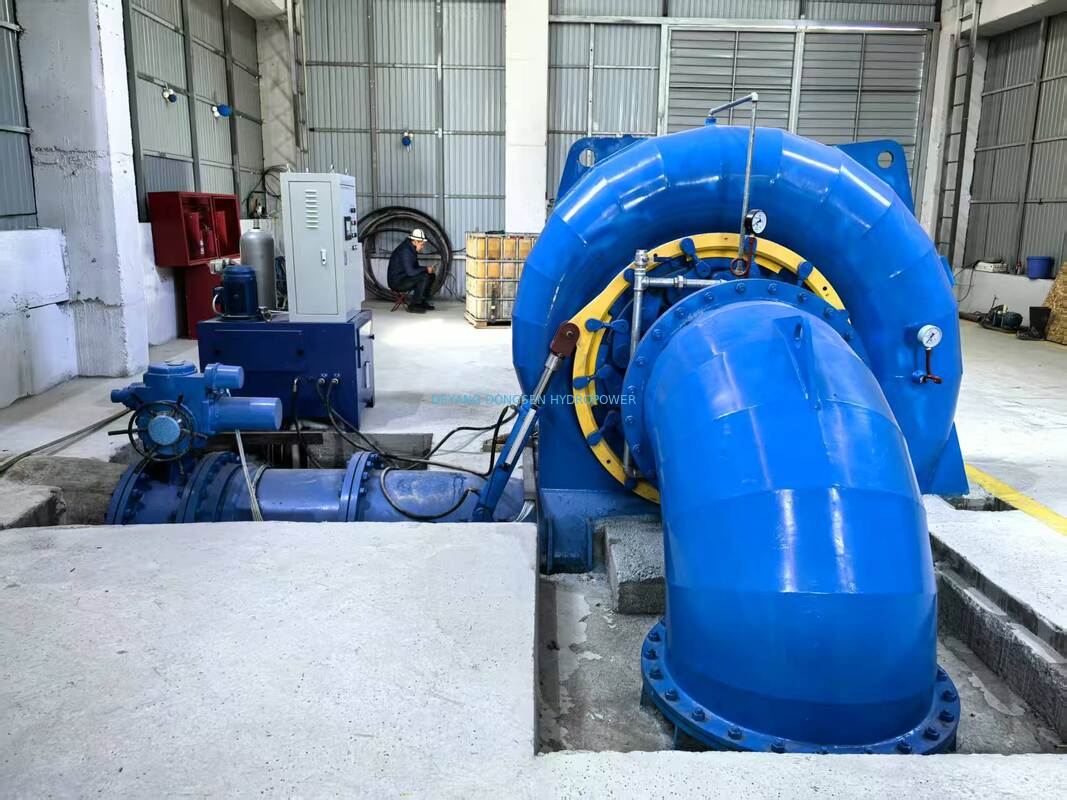

CFD Optimized Francis Hydro Turbine Generator

Our Francis Hydro Turbine Generator delivers exceptional hydraulic performance through advanced Computational Fluid Dynamics (CFD) simulation and precision engineering. Designed for medium to high head applications ranging from 20m to 300m, this turbine achieves up to 90% energy conversion efficiency, maximizing return on investment for hydropower plant operators worldwide.

Key Features

• CFD Optimized Hydraulic Profile: Every runner blade is designed using CFD simulation to minimize flow separation, reduce cavitation, and maximize hydraulic efficiency across the full operating range.
• Customizable Power Output: Available from 100KW to 20MW, allowing project-specific customization for small run-of-river plants to large grid-connected hydropower stations.
• Premium Stainless Steel Runner: Manufactured from 0Cr13Ni4Mo martensitic stainless steel, providing excellent cavitation resistance and long service life.
• Flexible Shaft Configuration: Available in horizontal or vertical shaft layout to match site-specific civil engineering requirements.
• Wide Operational Range: Optimized for water heads from 20m to 300m with stable operation across partial load conditions.

Technical Specifications

CFD Simulation & Quality Assurance

Each runner undergoes comprehensive CFD analysis to predict flow behavior, identify potential cavitation zones, and optimize blade geometry before manufacturing. Combined with 5-axis CNC machining, we guarantee precise dimensional accuracy and superior hydraulic performance. Every turbine is factory-tested and certified to meet IEC international standards.

Applications

• Run-of-river hydropower stations
• Reservoir-based hydroelectric projects
• Irrigation canal energy recovery systems
• Industrial water supply power generation
• Grid-connected and off-grid renewable energy systems

Why Choose Our Francis Turbine

With over 30-50 years of expected service life, our Francis turbines represent a long-term, low-maintenance investment for hydropower developers. We provide complete engineering support including feasibility studies, turbine sizing recommendations, and on-site commissioning assistance. Contact us today with your project parameters for a customized proposal.
