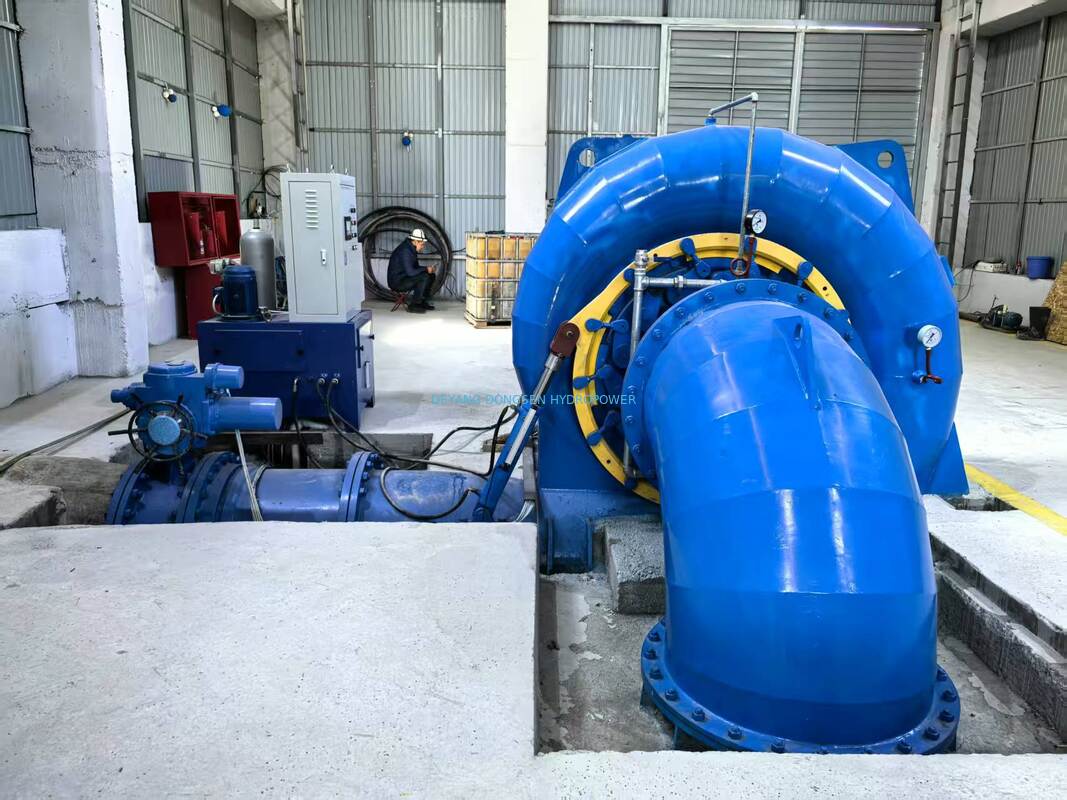

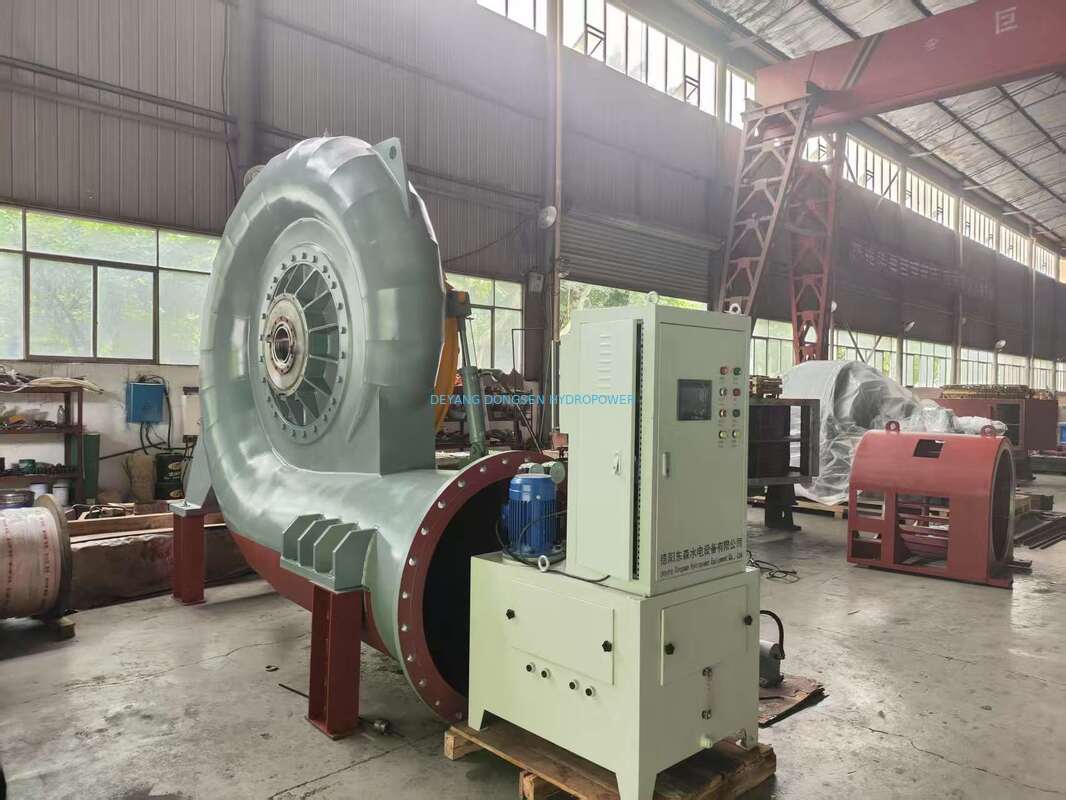

HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation

Product Overview

The HL110-WJ-42 500kW horizontal Francis water turbine generator set is a compact mixed-flow generating unit specially designed for small hydropower stations, mountainous areas and distributed power projects. Combining a stainless-steel Francis runner, a horizontal synchronous generator, a microcomputer speed governor and a complete control system on a common base frame, the set offers easy installation, simple maintenance and dependable long-term service. All equipment is custom-manufactured in China to match the specific head, flow and operating environment of each project.

Core Selling Points

• Stable Output and Reliable Operation: The optimized hydraulic design ensures smooth and stable power output with rapid load response, low vibration and quiet operation. The unit is engineered for continuous commercial generation with a high annual operating rate.
• Class F Insulation System: The generator adopts a full Class F (F/F) insulation system with high temperature resistance, protecting the winding from moisture and heat in hot, humid and tropical climates and greatly reducing the risk of insulation failure.
• Made in China with High Quality: Manufactured in China under an ISO9001 quality management system with TUV and BV support, using durable and wear-resistant materials for a service life of 30-50 years. Export-grade packing, complete documentation and timely after-sales support are always provided.

Technical Parameters

Standard Scope of Supply

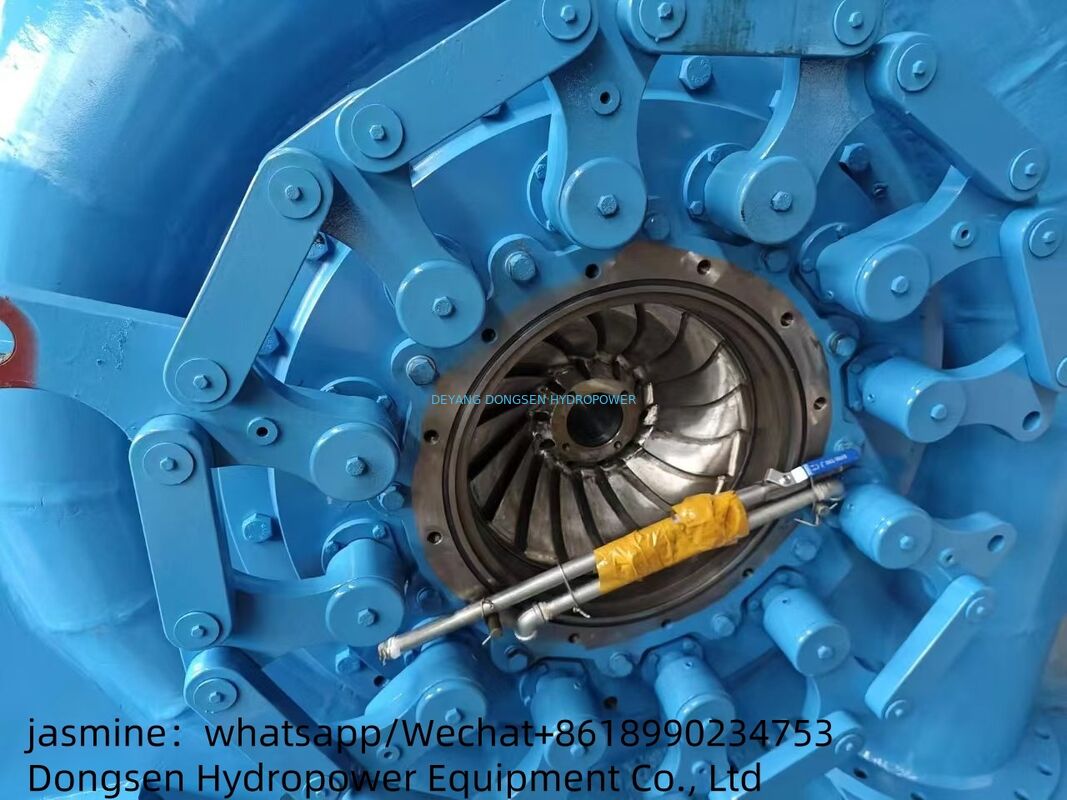

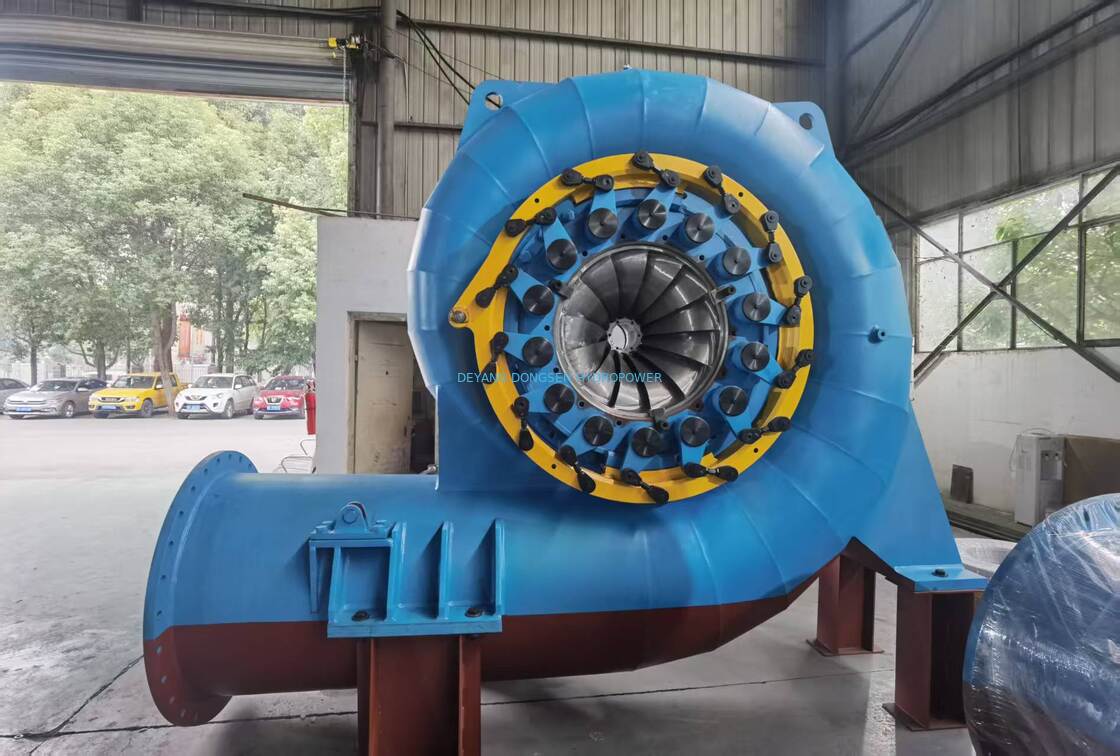

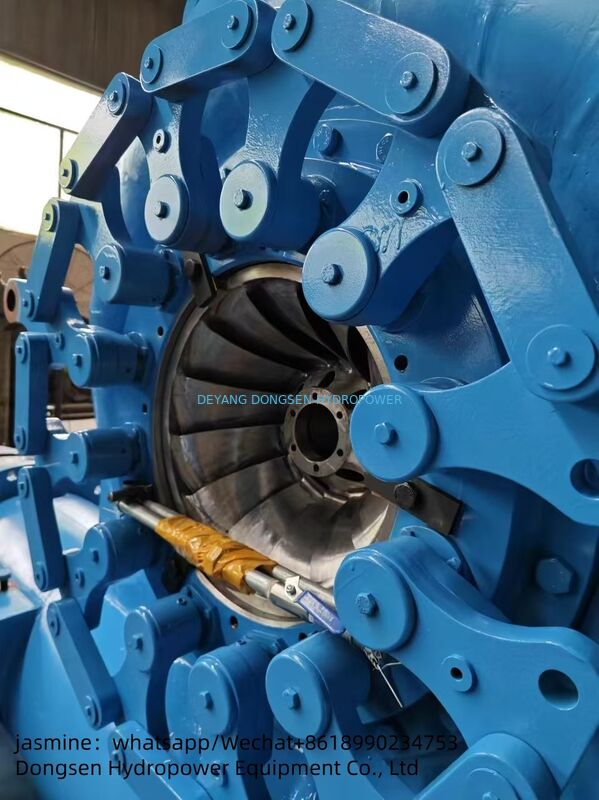

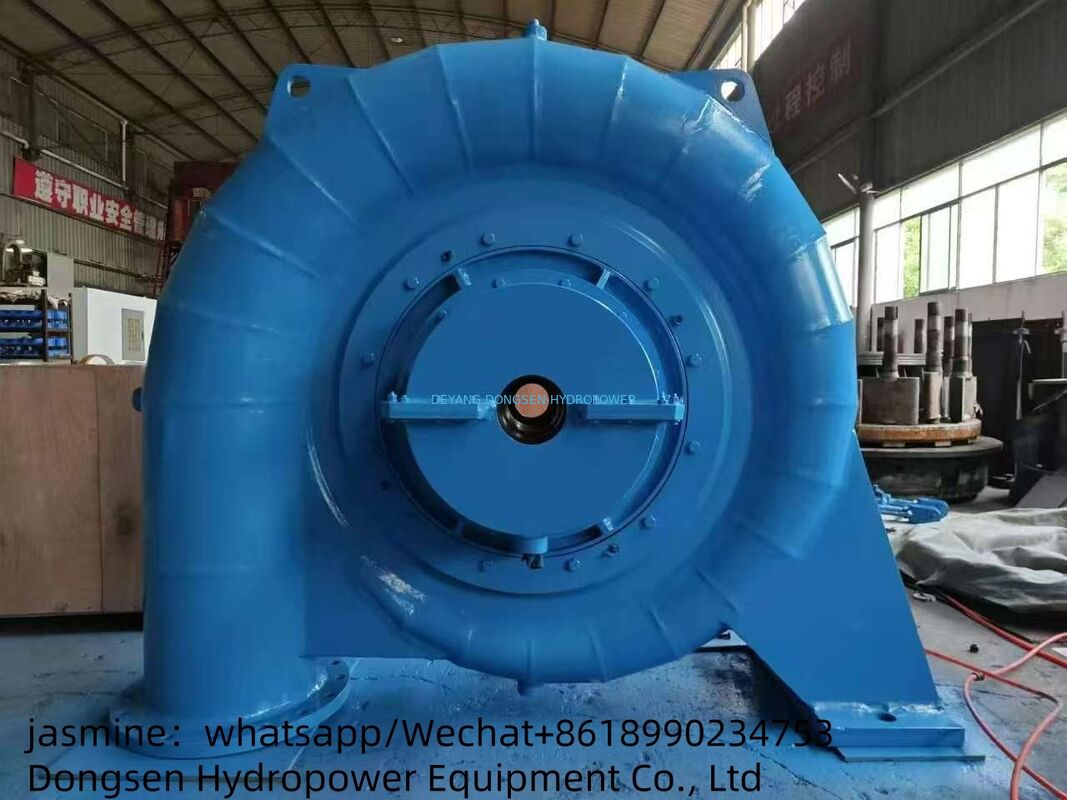

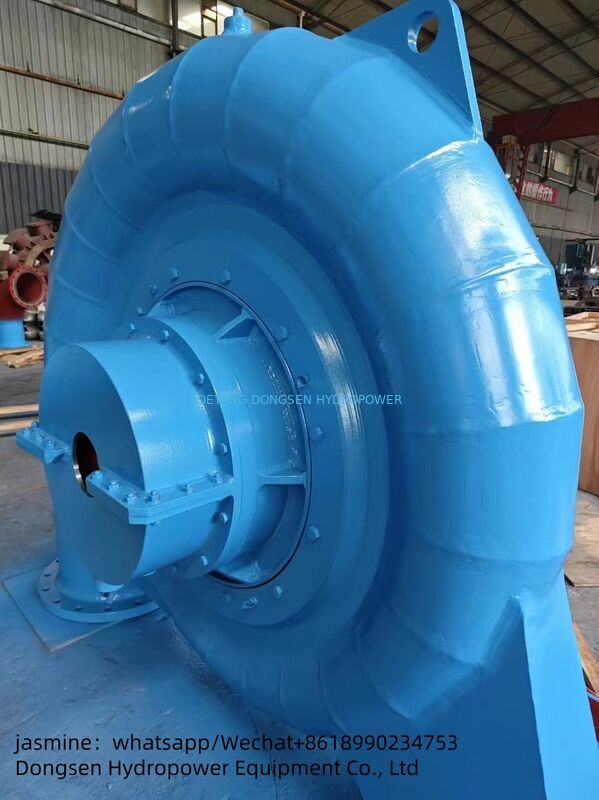

• Francis hydraulic turbine with stainless steel runner

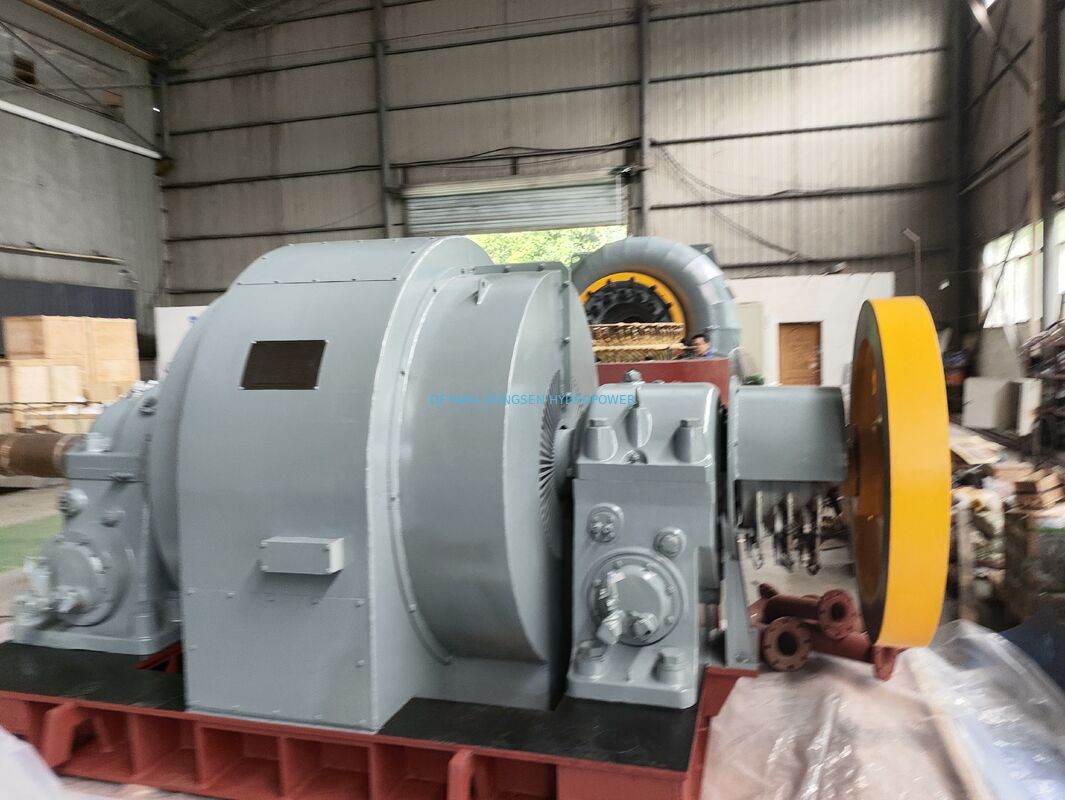

• Horizontal synchronous generator with Class F insulation
• Microcomputer speed governing system
• Excitation system

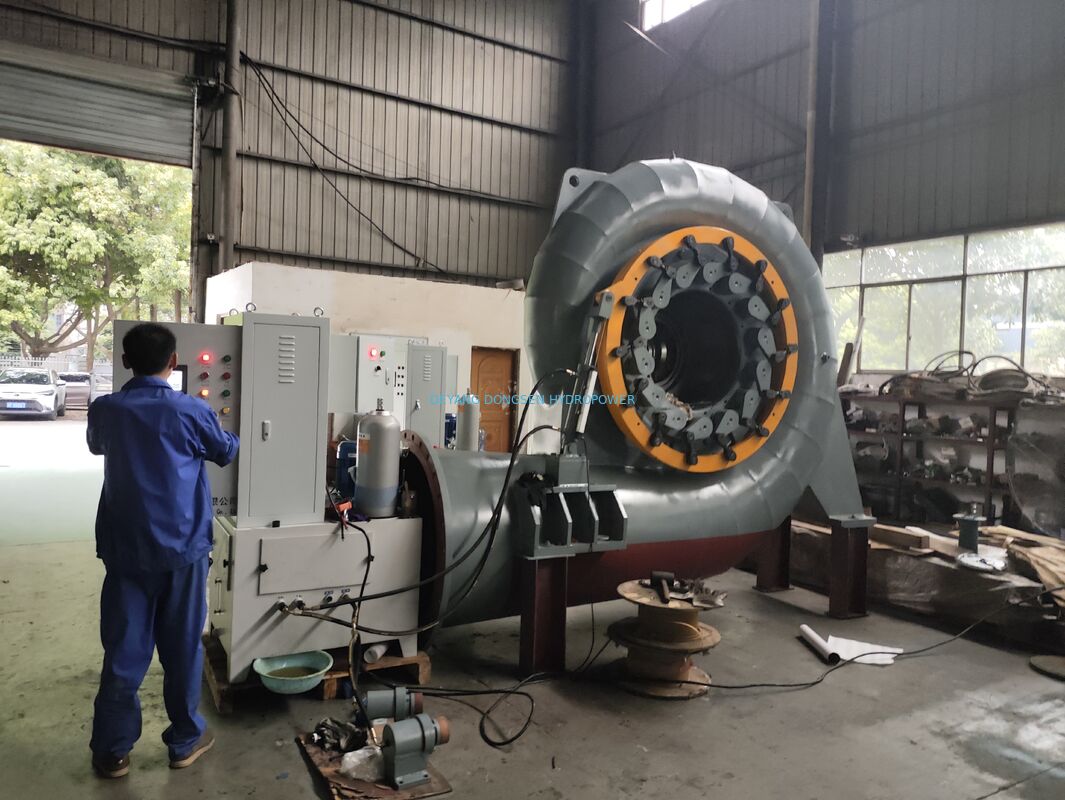

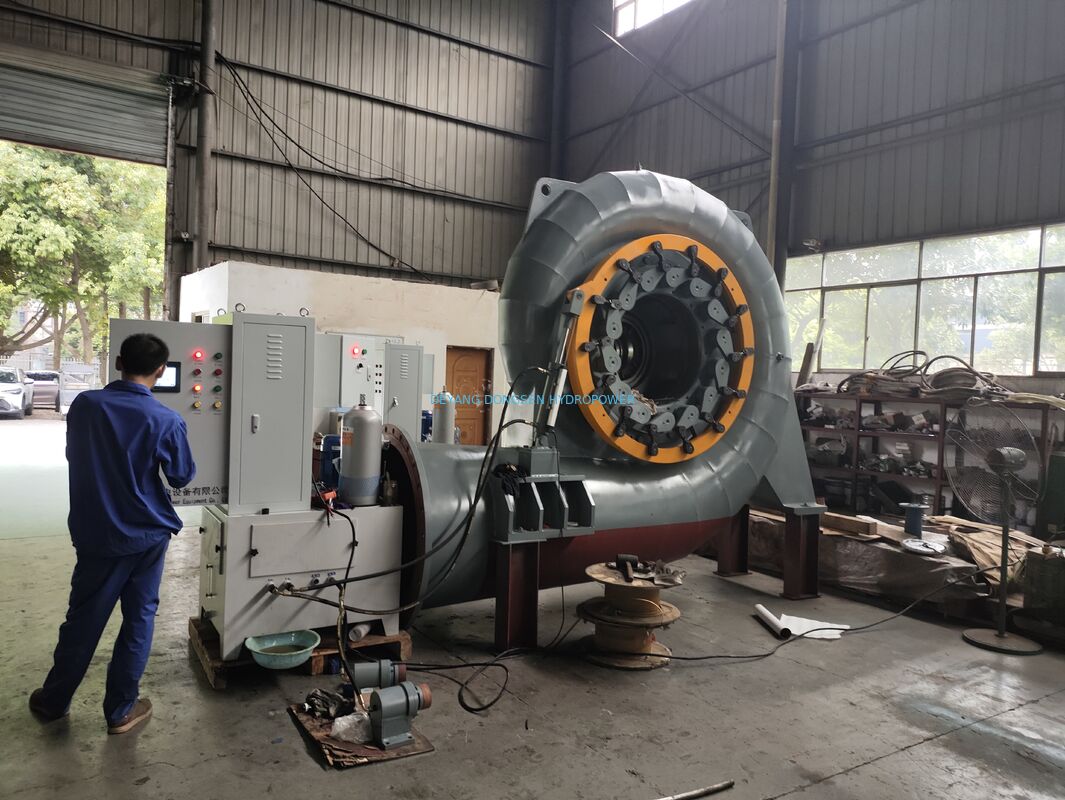

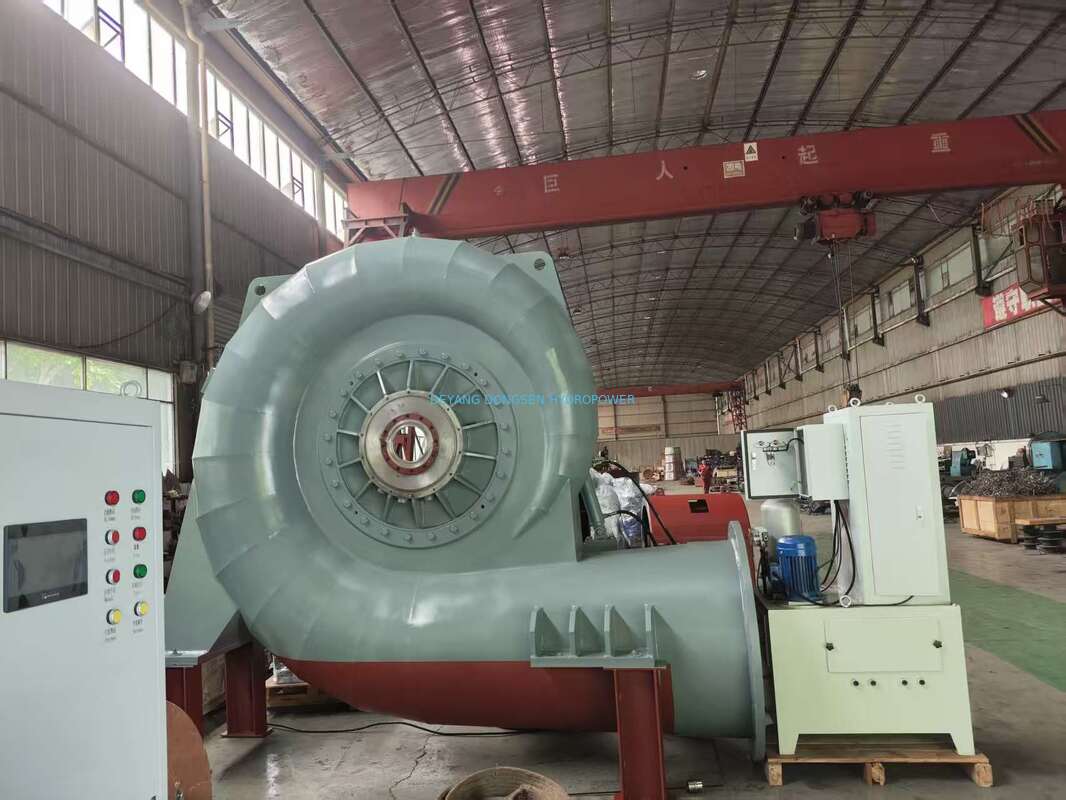

• Integrated protection and control panel
• Inlet valve group and auxiliary equipment
• Complete bilingual technical drawings, test reports and operation manuals

Applications

This horizontal set is an ideal solution for small run-of-river hydropower stations, mountainous village electrification, industrial self-supply power plants and grid-connected distributed hydro projects. Its compact footprint and simple civil works requirement significantly reduce installation cost and commissioning time.

Quality and Service

Design, manufacturing and factory testing strictly follow international standards, with one-to-one technical communication from parameter confirmation to after-sales support. Contact us with your site head, flow and output requirements to receive a professional scheme and competitive quotation.
