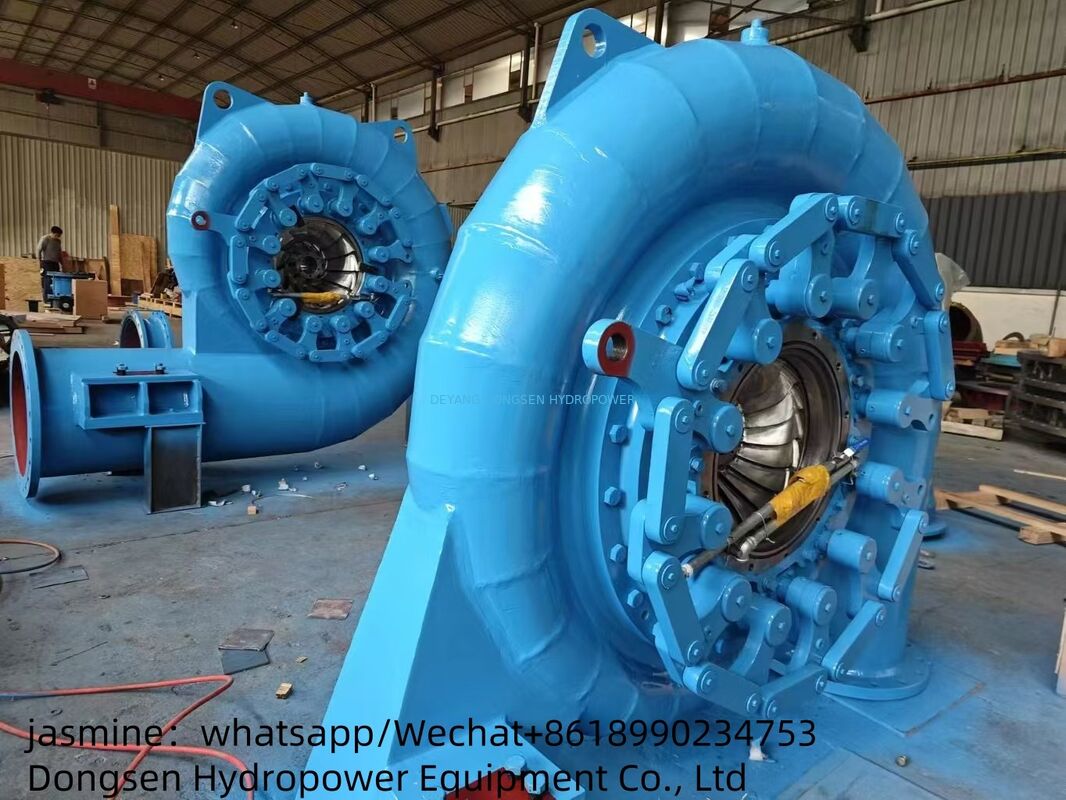

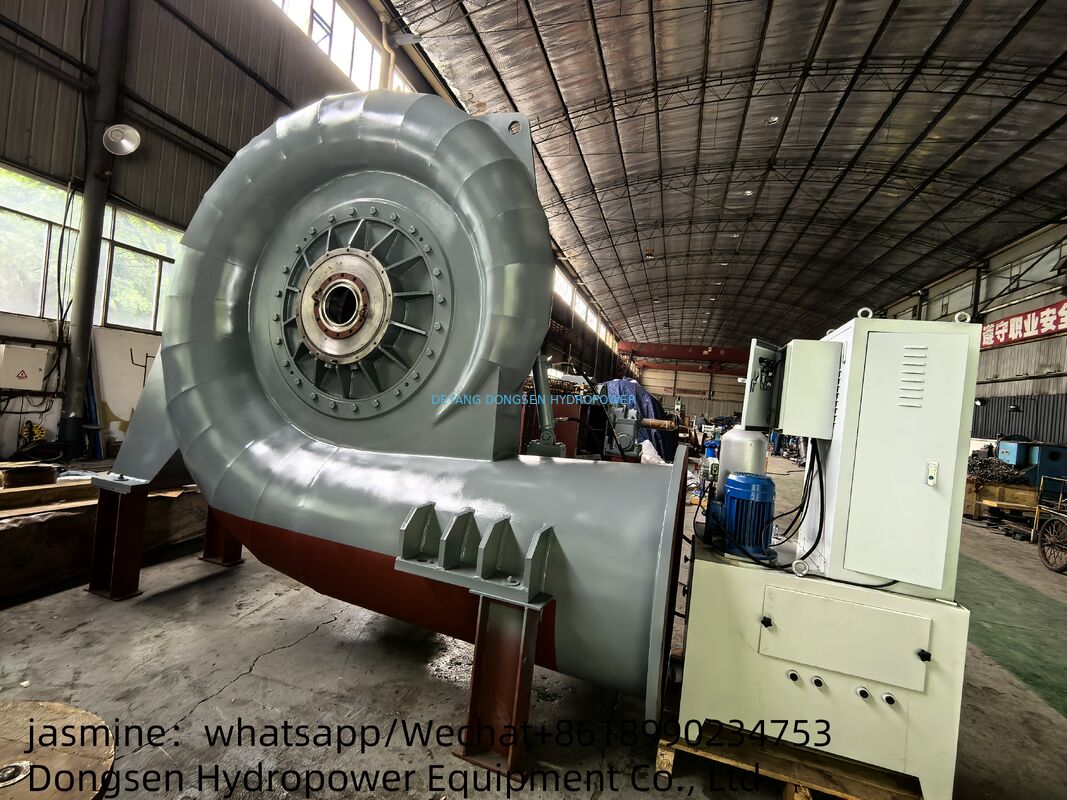

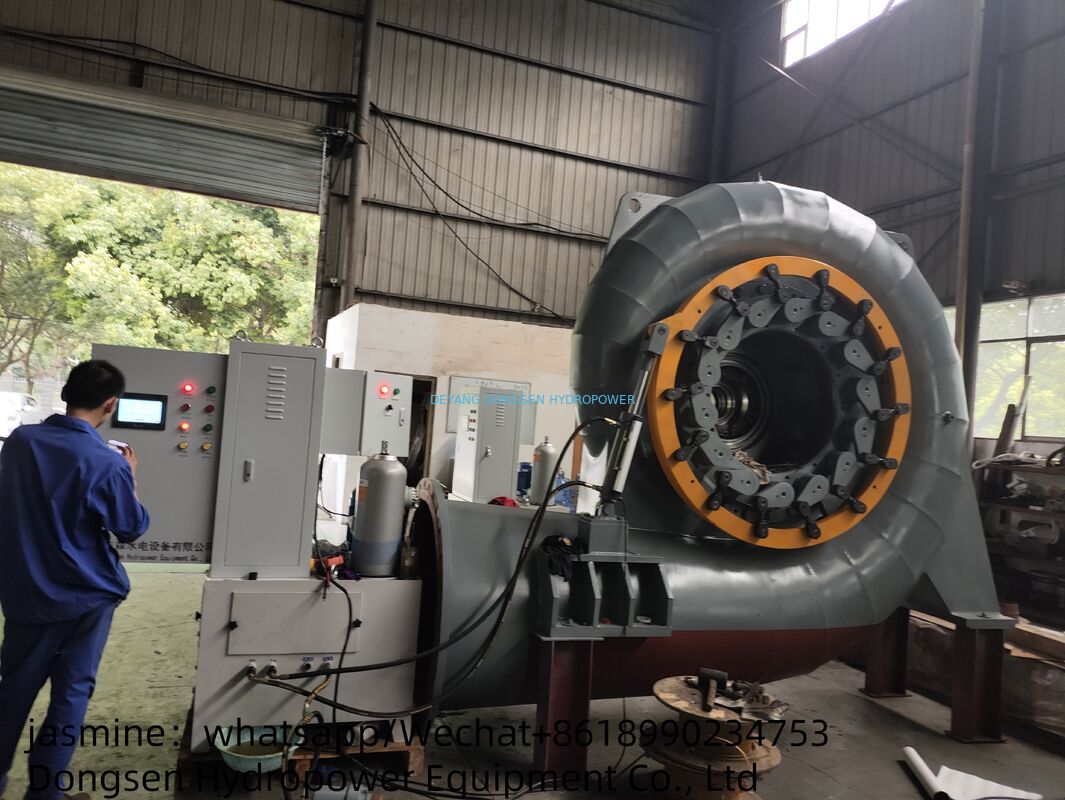

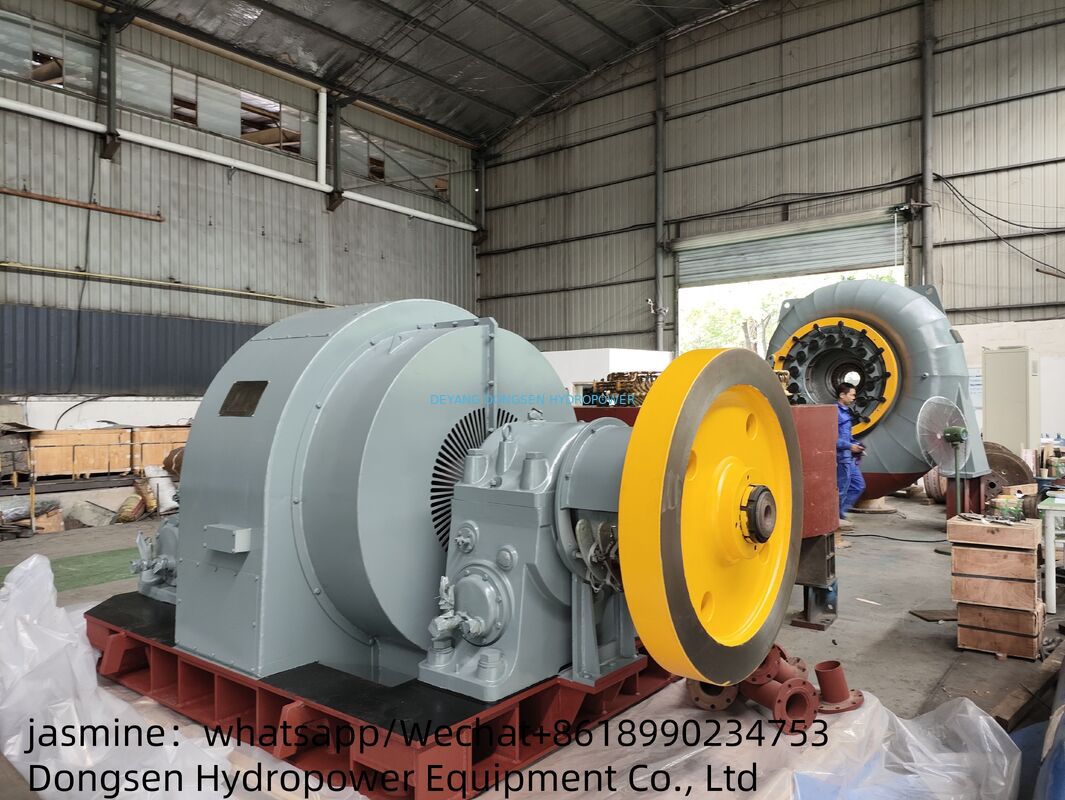

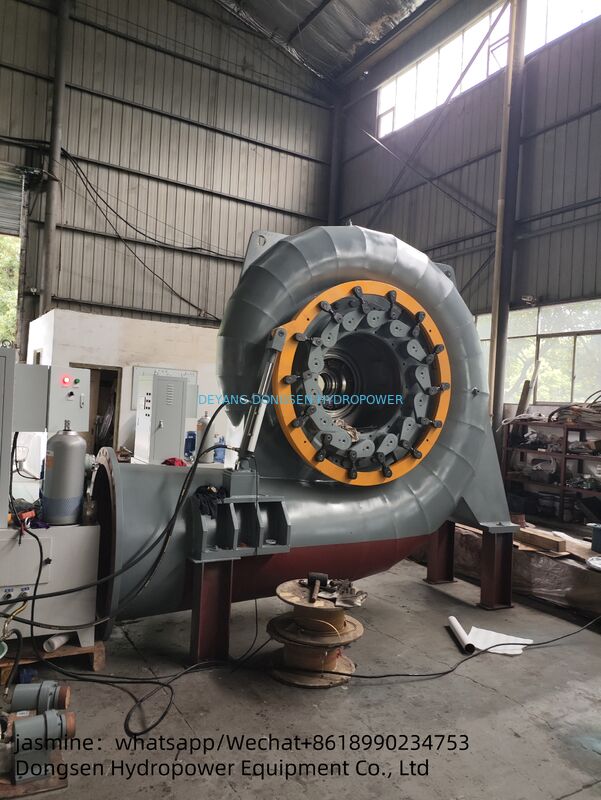

HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation

Product Overview

The HL220-LJ-134 3.2MW Francis hydro turbine generator unit is a complete vertical-shaft mixed-flow generating set developed for small and medium-head hydropower stations. It integrates a stainless-steel Francis runner, a synchronous generator, a microcomputer speed governor, an excitation system and a protection and control system into one reliable package. Every unit is custom-engineered and manufactured in China according to the actual head, flow, grid and climate conditions of the project site, making it an ideal core asset for commercial on-grid power generation.

Core Selling Points

• High Efficiency and Stable Operation: The runner adopts three-dimensional flow-field optimized hydraulic design with low hydraulic loss, delivering a turbine efficiency of over 92% and smooth, stable output across a wide load range. The unit starts and stops smoothly, responds quickly to load changes and operates reliably under continuous full-load conditions.
• Class F Insulation System: The generator is equipped with a full Class F (F/F) high temperature-resistant insulation system, perfectly suited to hot, humid and tropical climates. It effectively prevents insulation aging, moisture absorption and breakdown faults, ensuring long-term safe operation with minimal maintenance.
• Made in China with High Quality: Designed and manufactured in China under a strict ISO9001 quality management system with TUV and BV inspection support. The unit is built from wear-resistant, corrosion-proof materials, offers a service life of 30-50 years and is delivered with complete bilingual documentation and export-grade seaworthy packing.

Technical Parameters

Standard Scope of Supply

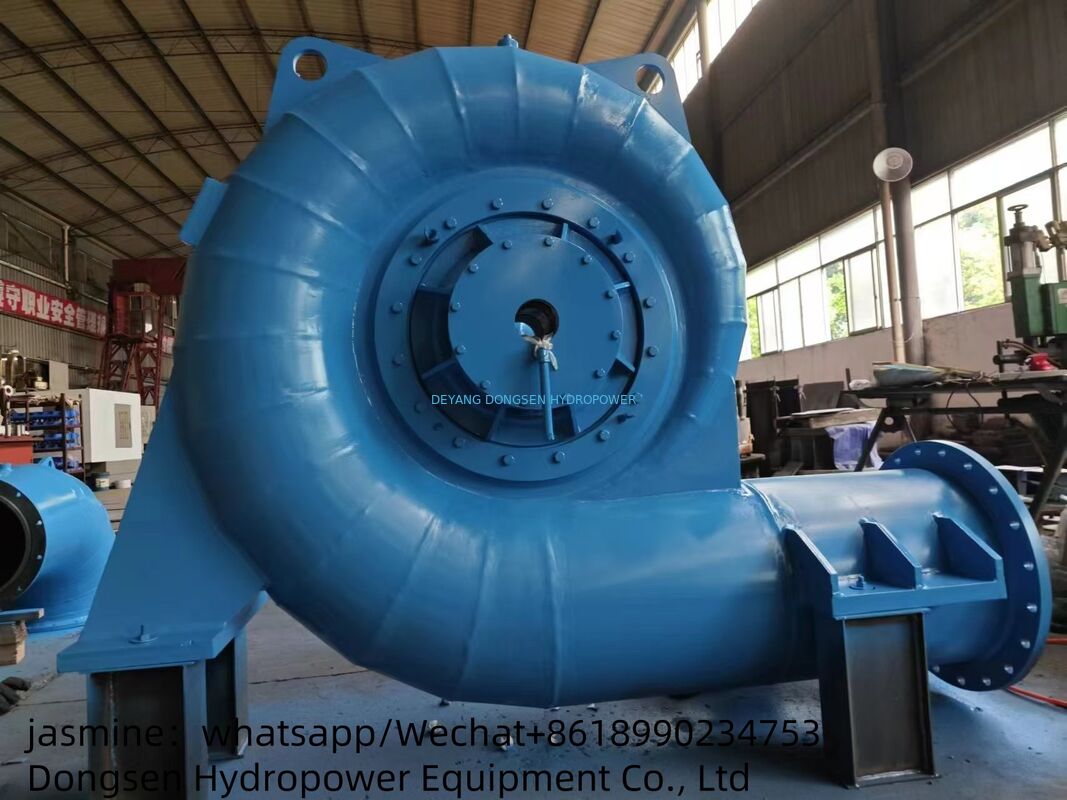

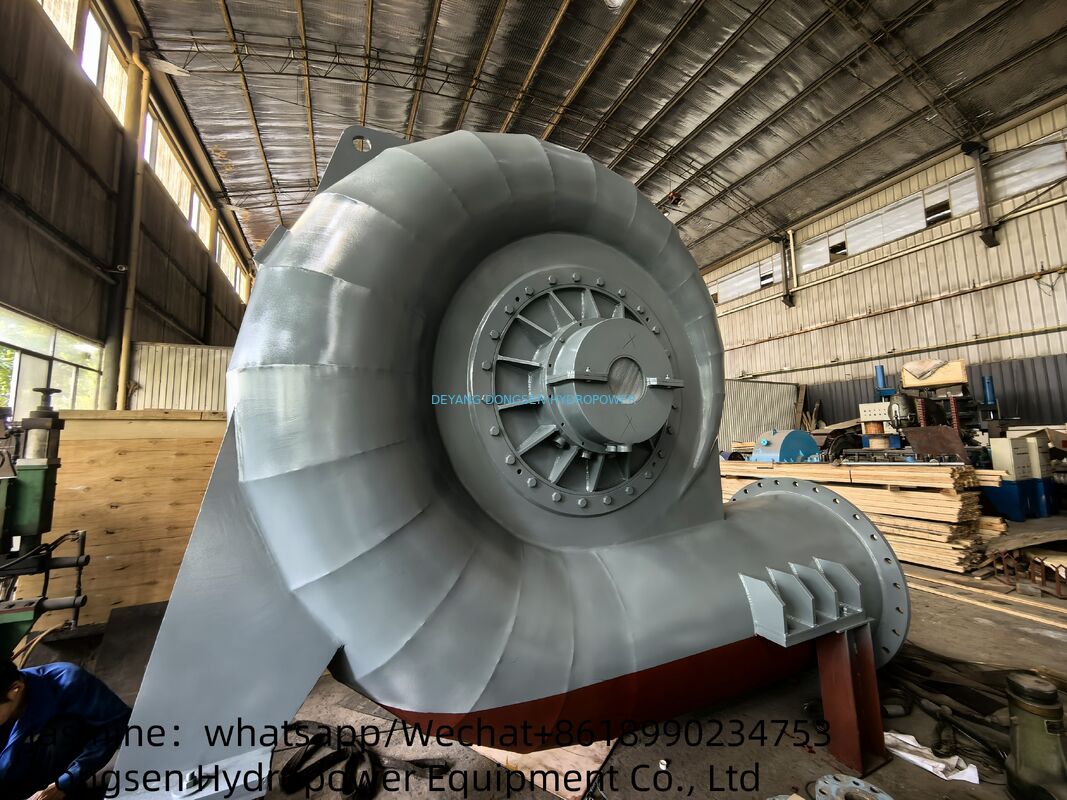

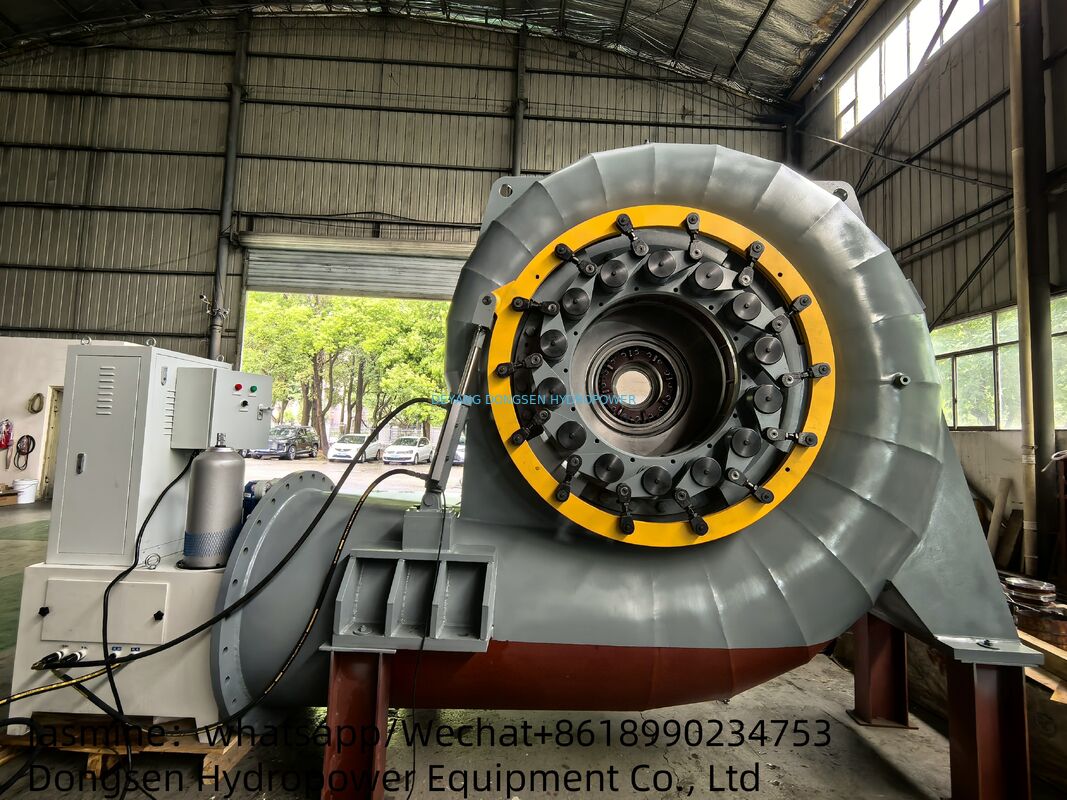

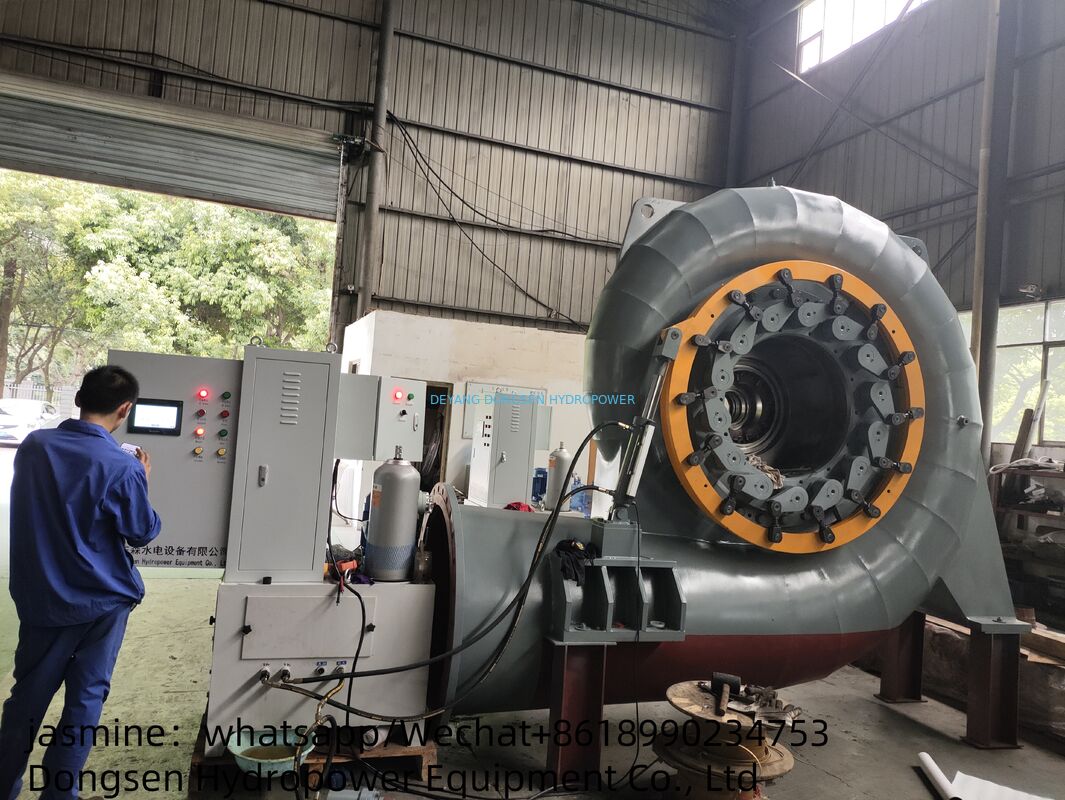

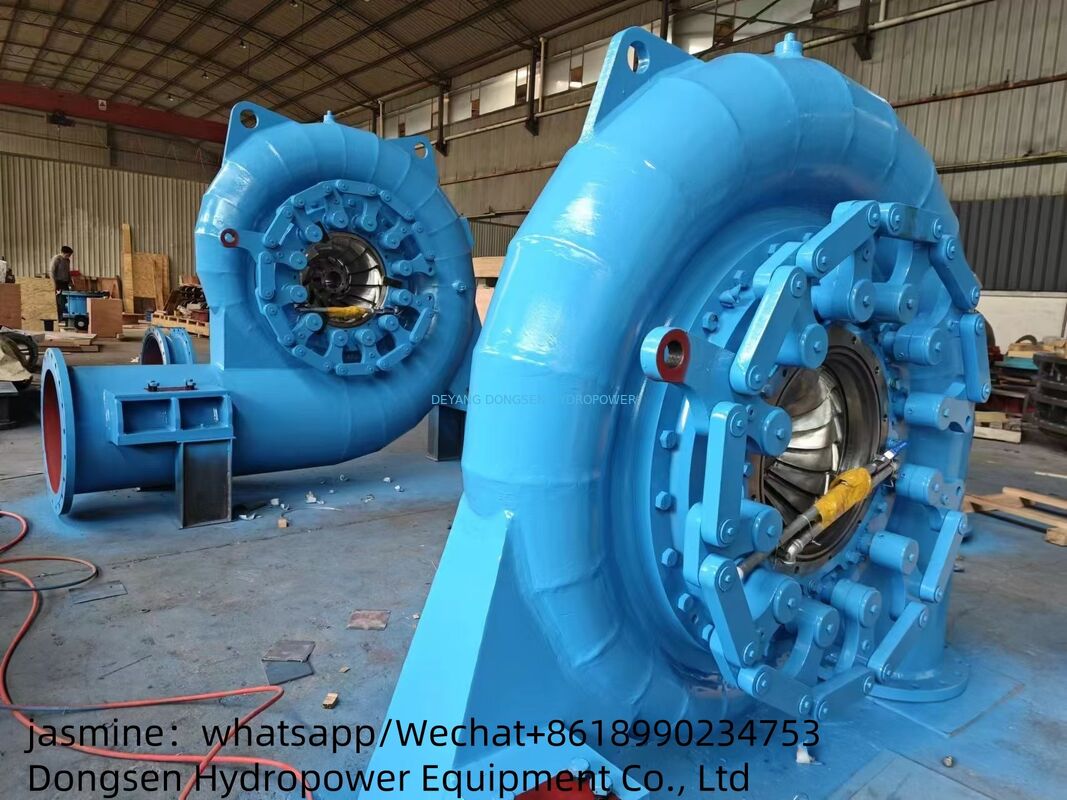

• Francis hydraulic turbine with stainless steel runner and guide apparatus

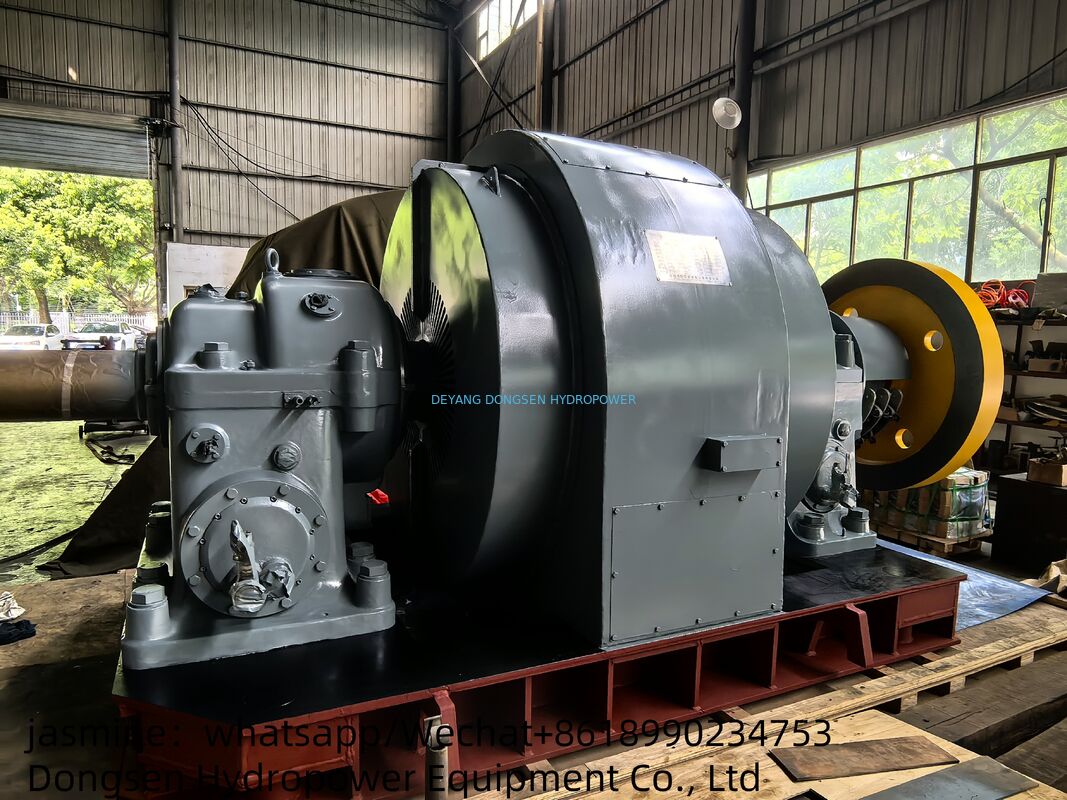

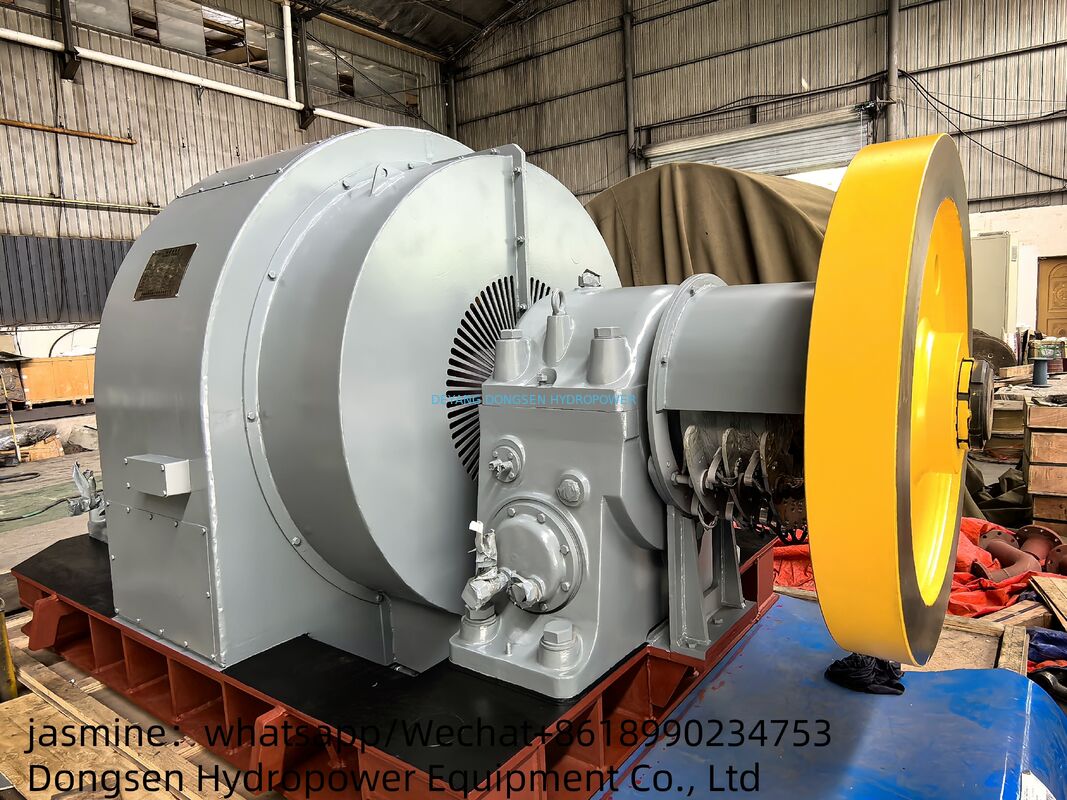

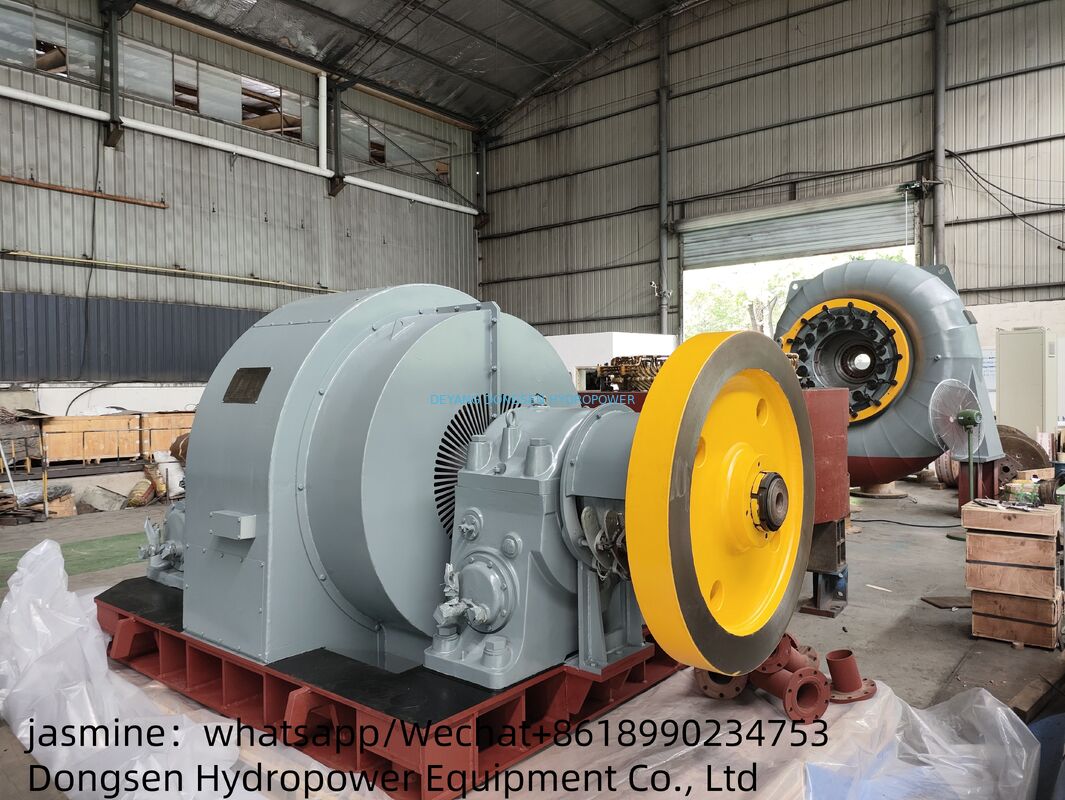

• Synchronous generator with Class F insulation and automatic voltage regulation
• Microcomputer speed governing system
• Excitation system
• Integrated protection and control panel
• Inlet valve group and associated auxiliary equipment
• Complete bilingual technical drawings, test reports and operation manuals

Applications

The unit is widely applied in newly built or upgraded small and medium hydropower stations for commercial grid-connected power generation, off-grid industrial power supply and rural electrification projects. With a total installed capacity up to 6.4MW for a two-unit station, it effectively raises annual power output and electricity sales revenue while helping to close regional power supply gaps.

Quality and Service

Each unit is strictly designed, manufactured and factory-tested in accordance with international standards. One-to-one technical support covers parameter calculation, scheme selection, drawing coordination, production follow-up, factory acceptance testing and after-sales guidance. Please contact us with your site head, flow and grid data to receive a tailored proposal and quotation.
