Place of Origin:
Deyang, Sichuan, China
Brand Name:
DSSD
Certification:
ISO 9001, CE, TUV
Model Number:
DSSD-AOC-200
Contact Us

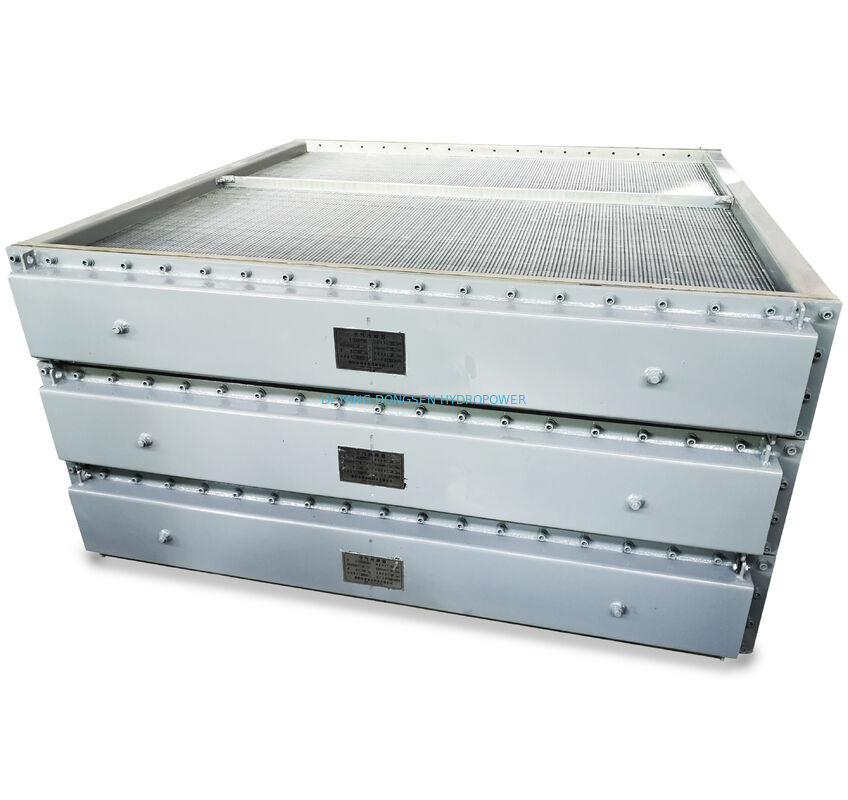

A 200kW air oil cooler unit designed for turbine lubricating oil systems in hydropower stations. The stainless steel coil heat exchanger and 4kW fan keep oil temperature within the required working band.
| Equipment Type | Air Oil Cooler Unit |
| Cooling Capacity | 200 kW |
| Oil Flow Rate | 400 L/min |
| Fan Motor Power | 4 kW |
| Coil Material | Stainless Steel Tube with Aluminum Fins |
| Cooling Medium | Lubricating Oil / Bearing Oil |
| Working Pressure | 1.6 MPa |
| Inlet Oil Temperature | 90 deg C |
| Outlet Oil Temperature | 50 deg C |
| Application | Turbine lubricating oil and generator cooling |
| Mounting | Floor Mounted or Wall Mounted |
Turbine lubricating oil cooling, Generator oil and bearing cooling, Hydraulic station oil cooling, Reduction gearbox cooling, Industrial oil heat exchange
All equipment is packed in seaworthy wooden cases with plastic film protection, suitable for long distance ocean transportation. Cargo is shipped from Shanghai or Chongqing port with full export documentation.
Q: Are you a manufacturer or a trading company?
A: We are a hydropower equipment manufacturer from Deyang, Sichuan, China, and have supplied equipment for more than 500 hydropower plants.
Q: What parameters do you need for a quotation?
A: Please share water head (m), water flow (m3/s), frequency (50/60 Hz), outgoing voltage (kV), unit capacity (kW), and grid-tie or standalone operation.
Q: What is your package and delivery?
A: Wooden cases or plastic film wrapping for sea shipment, normally delivered within 90 to 180 days after deposit.
Deyang Dongsen Hydropower Equipment Co., Ltd. (DSSD) supplies complete hydropower solutions from water to wire. Contact us today to get a tailored quotation and technical proposal.
