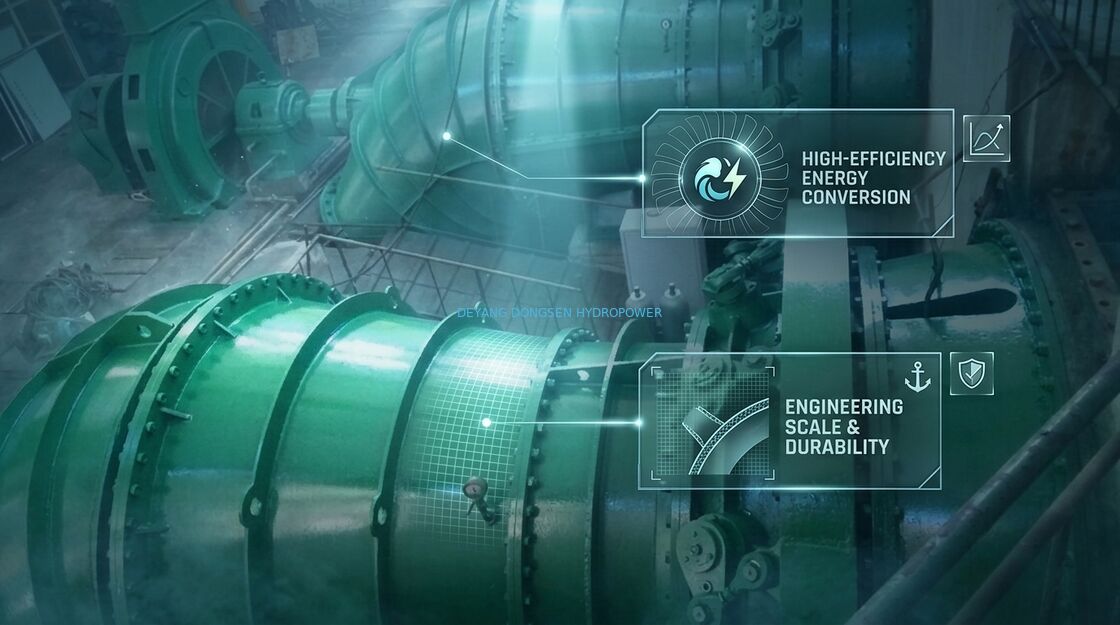

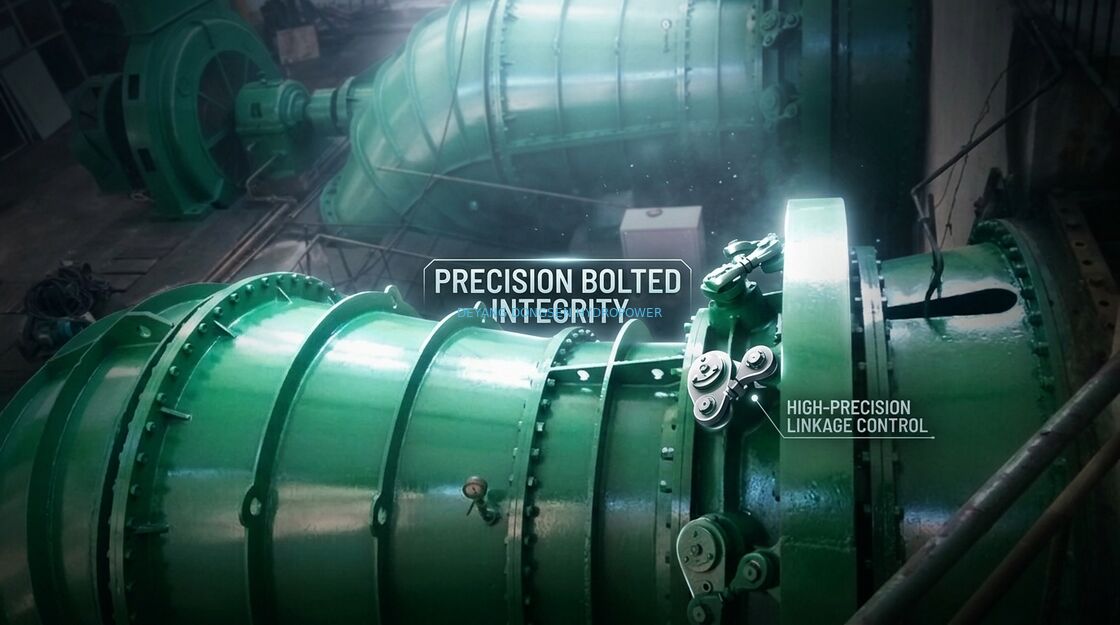

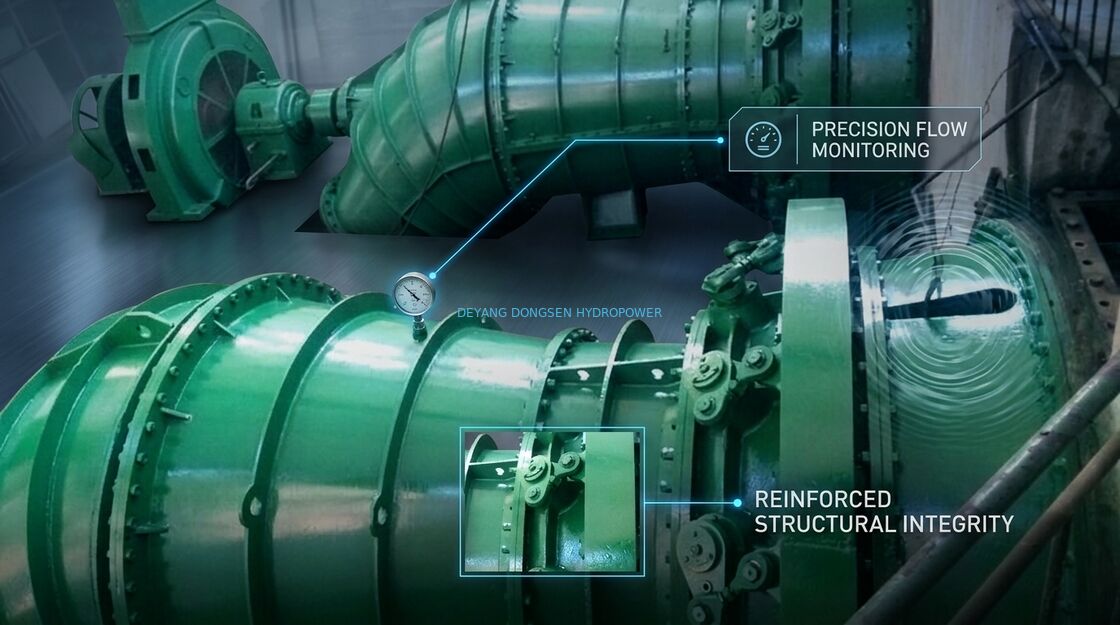

This 200kW tubular micro hydro generator uses an S type layout that places the generator outside the water passage for easier maintenance. It suits standalone plants with heads from 3 m to 10 m.
| Turbine Type | Tubular S-Type Turbine |
| Rated Output | 200 kW |
| Water Head | 3-10 m |
| Rated Speed | 375 rpm |
| Runner Diameter | 0.9 m |
| Generator Voltage | 400 V |
| Frequency | 50 Hz |
| Layout Pattern | S-Type |
| Runner Material | Stainless Steel ZG06Cr13Ni4Mo |
| Efficiency | 89% |
| Excitation | Brushless or Static Excitation System |
| Insulation Class | F/F |
| Design Lifespan | 30-50 Years |
Hydroelectric power plants, Small and micro hydropower stations, Off-grid rural electrification, Industrial self-use power generation, Grid-tie renewable energy projects
All equipment is packed in seaworthy wooden cases with plastic film protection, suitable for long distance ocean transportation. Cargo is shipped from Shanghai or Chongqing port with full export documentation.
Q: Are you a manufacturer or a trading company?
A: We are a hydropower equipment manufacturer from Deyang, Sichuan, China, and have supplied equipment for more than 500 hydropower plants.
Q: What parameters do you need for a quotation?
A: Please share water head (m), water flow (m3/s), frequency (50/60 Hz), outgoing voltage (kV), unit capacity (kW), and grid-tie or standalone operation.
Q: What is your package and delivery?
A: Wooden cases or plastic film wrapping for sea shipment, normally delivered within 90 to 180 days after deposit.
Deyang Dongsen Hydropower Equipment Co., Ltd. (DSSD) supplies complete hydropower solutions from water to wire. Contact us today to get a tailored quotation and technical proposal.
