CFD Optimized Kaplan Fixed Blade Runner Stainless Steel ZG0Cr13Ni4Mo 0.5-3m Diameter for Small Flow Hydro Plant

CFD Optimized Fixed Blade Kaplan Runner — Small Flow Micro Hydro Solution

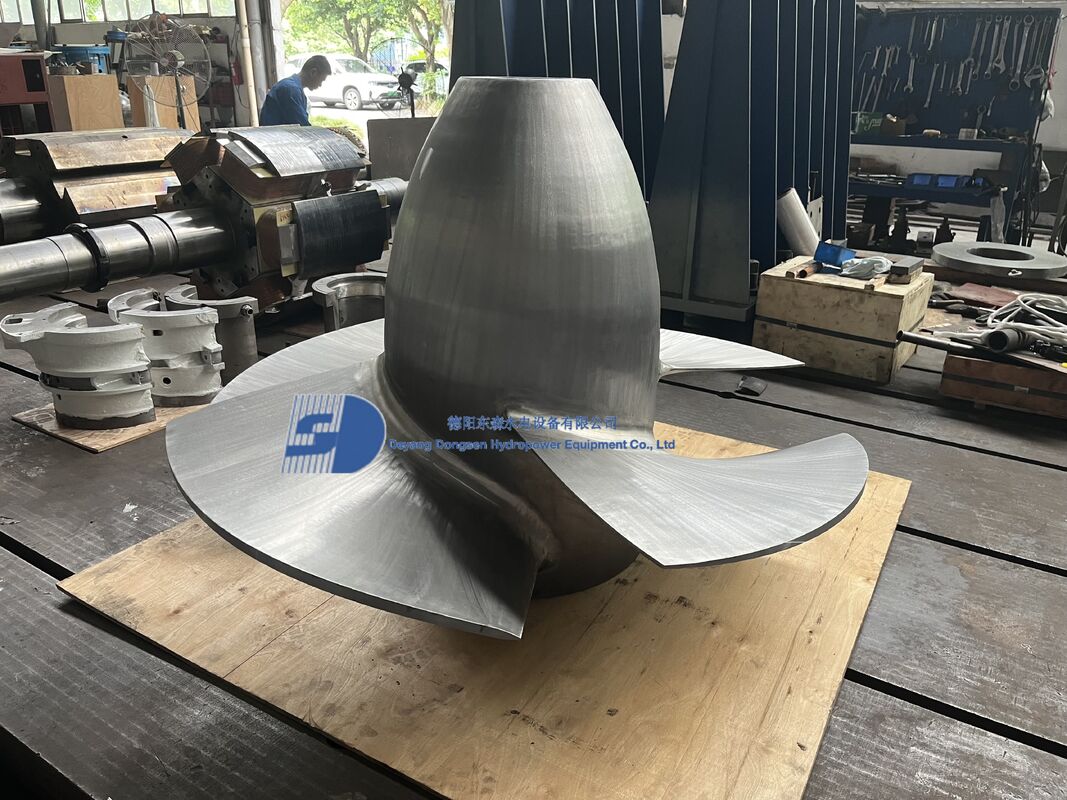

The CFD Optimized Fixed Blade Kaplan Runner is specifically engineered for small flow, low head micro hydropower plants (100 kW – 1,000 kW). Unlike standard fixed-pitch runners designed solely for design-point operation, this runner leverages advanced Computational Fluid Dynamics (CFD) simulation to extend the efficient operating range into lower flow conditions, maximizing annual power generation during dry seasons when water availability is limited.

Manufactured by DSSD (Deyang Dongsen Hydropower Equipment Co., Ltd.), each runner is custom-engineered to match your site’s specific hydraulic profile. Blade geometry, blade count, and blade wrap angle are all optimized via iterative CFD analysis to deliver superior off-design performance without sacrificing peak efficiency at rated conditions.

Why CFD Customization Matters for Small Hydro

For small-capacity Kaplan units (below 1,000 kW), a standard off-the-shelf fixed blade runner typically achieves high efficiency only at the design flow point. When actual flow deviates — particularly during dry seasons — the inlet flow angle mismatches the blade leading edge, causing impact losses, vortex formation, and sharp efficiency drops.

Our CFD customization approach addresses this by:

• Re-optimizing Blade Setting Angle — Using CFD numerical simulation calibrated to your plant’s multi-year average flow and common low-flow conditions, the blade exit angle and twist profile are optimized for superior inlet flow conditions at partial load.
• Adjusting Blade Count and Wrap Angle — For small flow, higher head operation, blade count is reduced and wrap angle tuned to improve internal flow passage characteristics, preventing flow separation and backflow at low discharge.
• Shifting the High-Efficiency Zone — Rather than sacrificing design-point efficiency, the efficiency curve is shifted toward the lower flow range, ensuring your most frequent operating conditions fall within the high-efficiency band. Design-point efficiency is maintained within 0.5% of standard.

Key Features

• CFD-Optimized Blade Profile — Custom blade geometry derived from iterative CFD simulation matching your specific head, flow, and rotational speed parameters for maximum real-world efficiency.
• Extended Dry Season Generation — Optimized low-flow performance enables continued power generation during marginal flow periods that would stall a standard runner, adding tens to hundreds of hours of annual generation time.
• Increased Annual Revenue — Every 1% efficiency gain in dry season translates directly to additional electricity sales. Custom design typically pays for itself within months to one year through incremental generation revenue.
• Simple, Reliable Construction — Fixed blade design eliminates blade pitch adjustment mechanisms (servomotors, oil cylinders, linkages), reducing component count, failure points, and maintenance complexity compared to adjustable Kaplan runners.
• Lower Investment Cost — 20-30% lower manufacturing cost than equivalent adjustable blade runners, making it the economic choice for micro and small hydro projects with budget constraints.
• Premium Stainless Steel — Cast from ZG0Cr13Ni4Mo stainless steel with excellent cavitation resistance and corrosion protection for long-term reliability in freshwater hydro environments.
• Precision CNC Machining — All blade surfaces and hub interfaces machined to tight tolerances ensuring optimal hydraulic profile fidelity from CFD design to finished product.
• 30-50 Year Service Life — Robust integral casting design and premium materials ensure decades of low-maintenance operation.

Technical Parameters

Application Scenarios

• Small run-of-river plants with low head (3–20m) and limited dry-season flow
• Micro hydro projects (100–1,000 kW) where adjustable Kaplan is cost-prohibitive
• Irrigation canal drop structures with seasonal flow variation
• Plant rehabilitation and capacity upgrades where existing runners need replacement with improved efficiency
• Remote community electrification requiring simple, low-maintenance turbine components

Economic Value of CFD Customization

Why Fixed Blade for Small Kaplan Units?

For single-unit capacities below 1,000 kW, a fixed blade Kaplan runner is the recommended configuration. The simple, robust construction eliminates complex hydraulic blade adjustment systems, significantly reducing manufacturing cost (20–30% savings), installation complexity, and long-term maintenance requirements. When combined with CFD customization to optimize for your specific site flow characteristics, the fixed blade runner delivers excellent annual performance that closely approaches adjustable blade efficiency at a fraction of the investment.

About DSSD

Deyang Dongsen Hydropower Equipment Co., Ltd. (DSSD) is a professional comprehensive engineering company specializing in the design, manufacturing, installation, and maintenance of hydropower equipment. Located in Deyang, one of China’s three major heavy industry manufacturing bases, DSSD has supplied turbine components to over 500 hydropower stations worldwide. Our in-house CFD engineering team provides custom runner optimization for projects of all sizes.

Contact us today with your site parameters (design head, flow duration curve, unit capacity, and rotational speed) for a customized CFD optimization proposal and quotation.
