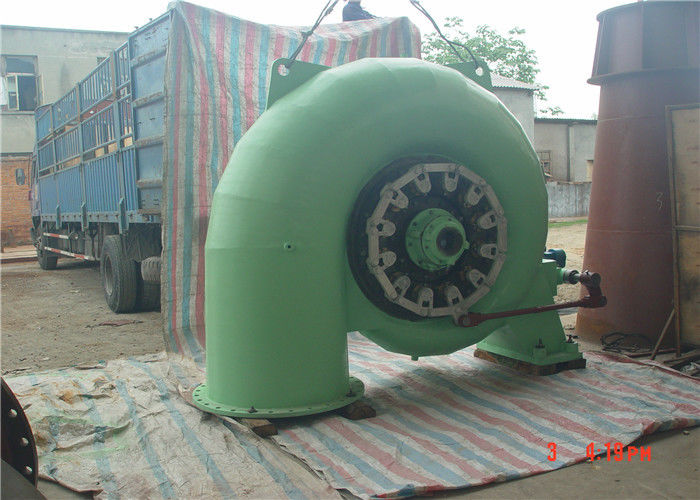

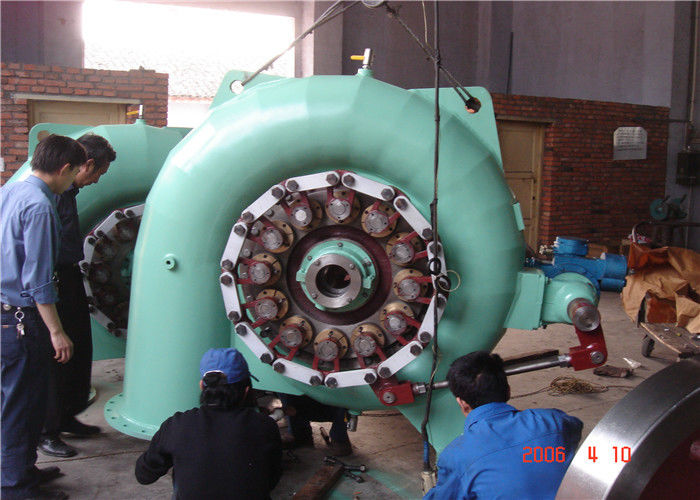

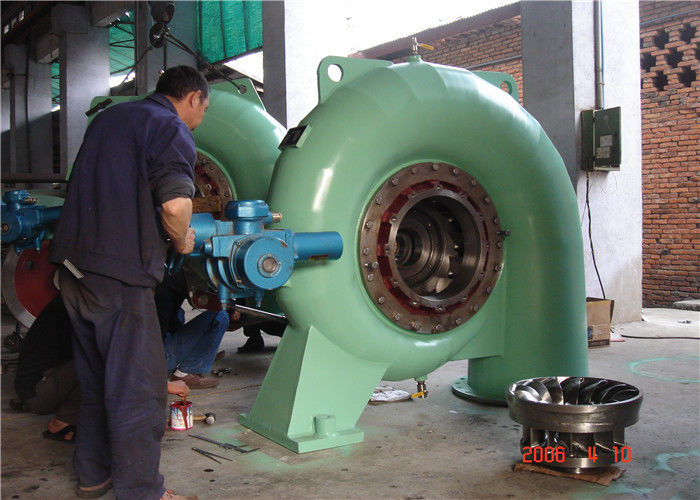

Francis Turbine Generator Overview
The Francis Turbine Generator is a highly efficient and reliable hydropower generation solution manufactured in Sichuan, China. Designed for optimal performance across diverse hydraulic conditions, this turbine generator offers power output ranging from 300kW to 20MW with rated discharge capacity between 12.2 to 30.4 cubic meters per second. Its robust construction and advanced engineering make it suitable for small, medium, and large-scale hydropower projects worldwide.
Key Features
- Product Name: Francis Turbine Generator
- Type: Francis Water Turbine Generator
- Rated Discharge: 12.2-30.4 m³/s

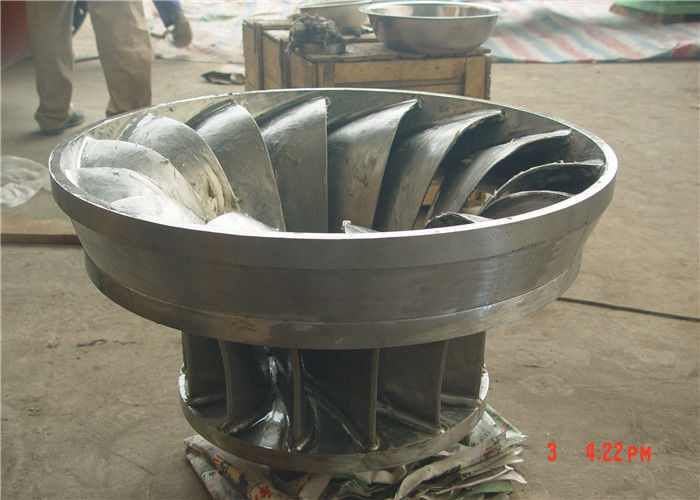

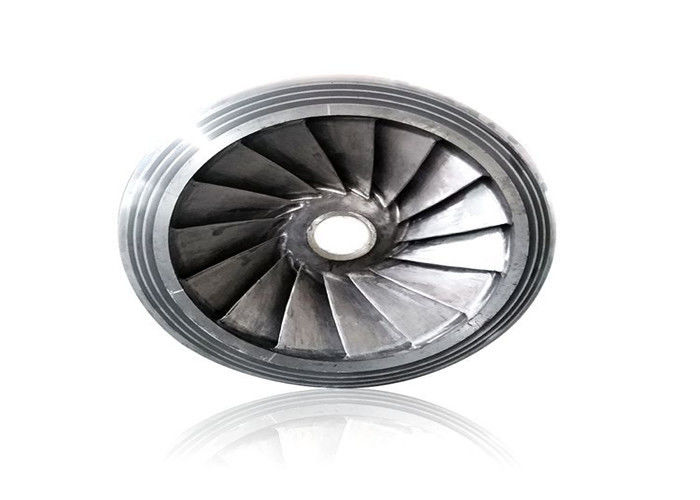

- Runner Material: Stainless Steel
- Layout Pattern: Horizontal or Vertical
- Power Range: 300 kW - 20 MW
- Efficiency: Up to 95%
- High efficiency and durable design for optimal performance
- Suitable for various hydroelectric power generation applications
Technical Specifications
| Parameter |
Specification |
| OEM |
YES |
| Layout Pattern |
Horizontal or Vertical |
| Voltage |
6.3kV / 10kV / 20kV / 35kV |
| Grid System |
On Grid / Off Grid |
| Excitation Device |
5 In 1 Integrated Control Panel |
| Original Place |
Sichuan, China |
| Design Speed |
1000 r/min |
| Power |
300kW - 20MW |
| Startup Mode |
Soft Start |
| Insulation Class |
F / F |
Applications
The Francis Turbine Generator is ideal for hydroelectric power plants, industrial power generation, and renewable energy projects. Its versatility makes it suitable for mountainous regions, irrigation canals, run-of-river power stations, and combined heat and power (CHP) systems. Certified by ISO, CE, and TUV, this turbine generator delivers reliable performance in various hydraulic conditions and infrastructure setups.
Customization Options
We offer OEM customization services for the Francis Turbine Generator to meet specific project requirements. With model numbers Francis HL-WJ or LJ, our generators feature insulation class F/F and are available with power capacities from 300kW to 20MW. Each unit is packaged in wooden cases with plastic film for safe delivery.
Support & Services
Our comprehensive technical support includes installation guidance, operational training, routine maintenance, troubleshooting, and customized retrofit solutions. Our dedicated team ensures optimal performance and minimal downtime throughout the equipment lifecycle.
Packaging & Shipping
Each Francis Turbine Generator is securely packaged in custom-designed wooden crates with protective materials and anti-corrosion coatings. We arrange transportation via sea, air, or land freight with full tracking and insurance coverage, ensuring safe delivery within approximately 120 days.
Frequently Asked Questions
Q1: What is the brand and model number of the Francis Turbine Generator?
A1: The Francis Turbine Generator is manufactured by Dongsen-DSSD HYDROPOWER, and the model numbers are Francis HL-WJ or LJ.
Q2: Where is the Francis Turbine Generator produced?
A2: The Francis Turbine Generator is produced in Deyang, China.
Q3: What certifications does the Francis Turbine Generator have?
A3: The product is certified with ISO, CE, and TUV certifications.
Q4: What is the minimum order quantity and price for the Francis Turbine Generator?
A4: The minimum order quantity is 1 set, and the price is approximately $220,000 per set.
Q5: What are the packaging, delivery time, and payment terms for this product?
A5: The Francis Turbine Generator is packaged in wooden cases with plastic film. The delivery time is around 120 days. Payment terms accepted are T/T and LC.
Q6: What is the supply ability of the Dongsen-DSSD HYDROPOWER Francis Turbine Generator?
A6: The supply ability is 500 units per year.
