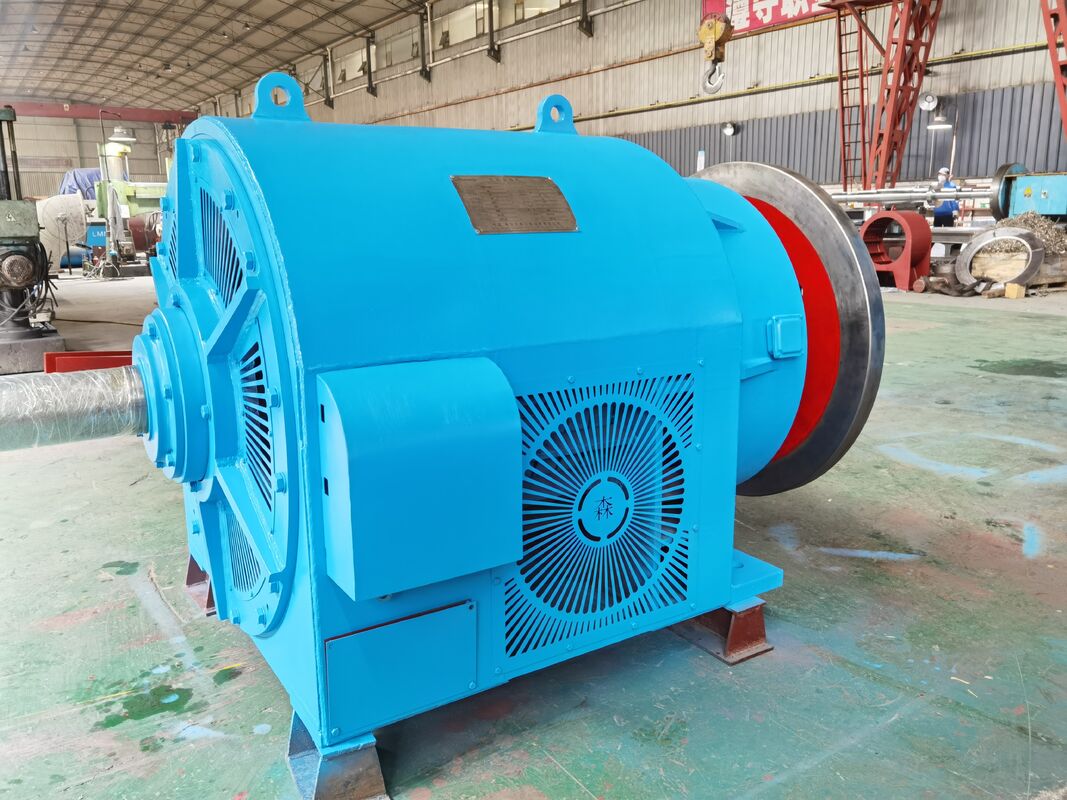

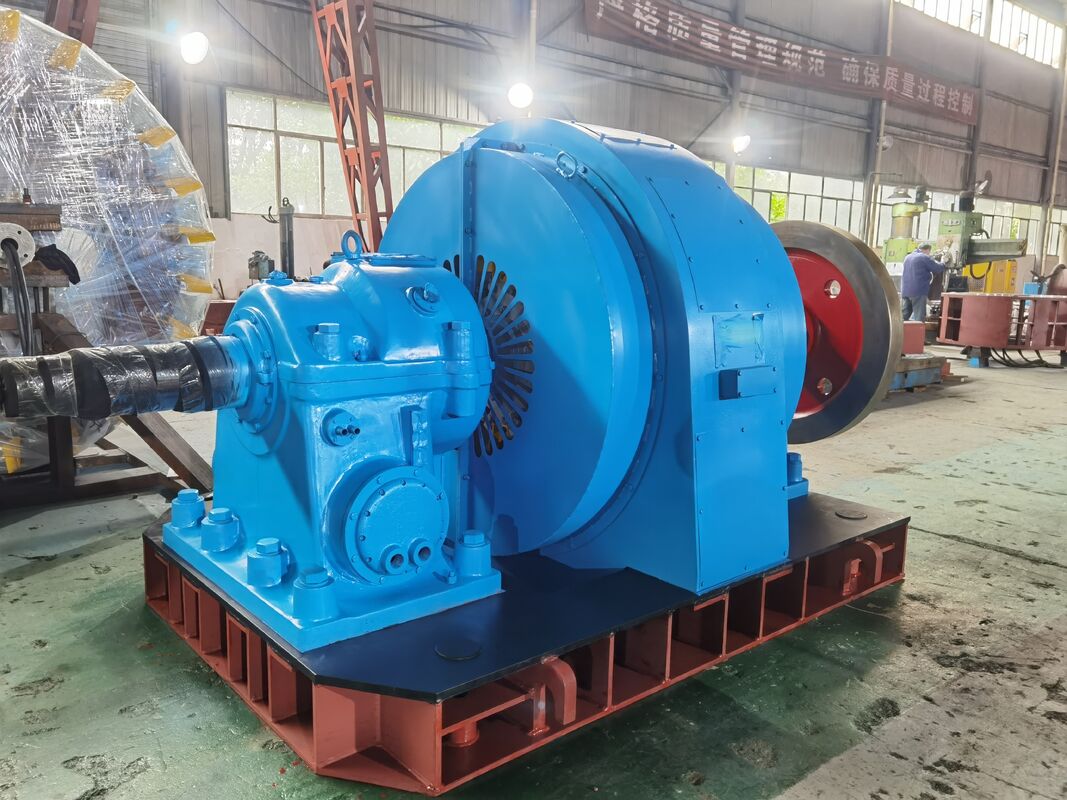

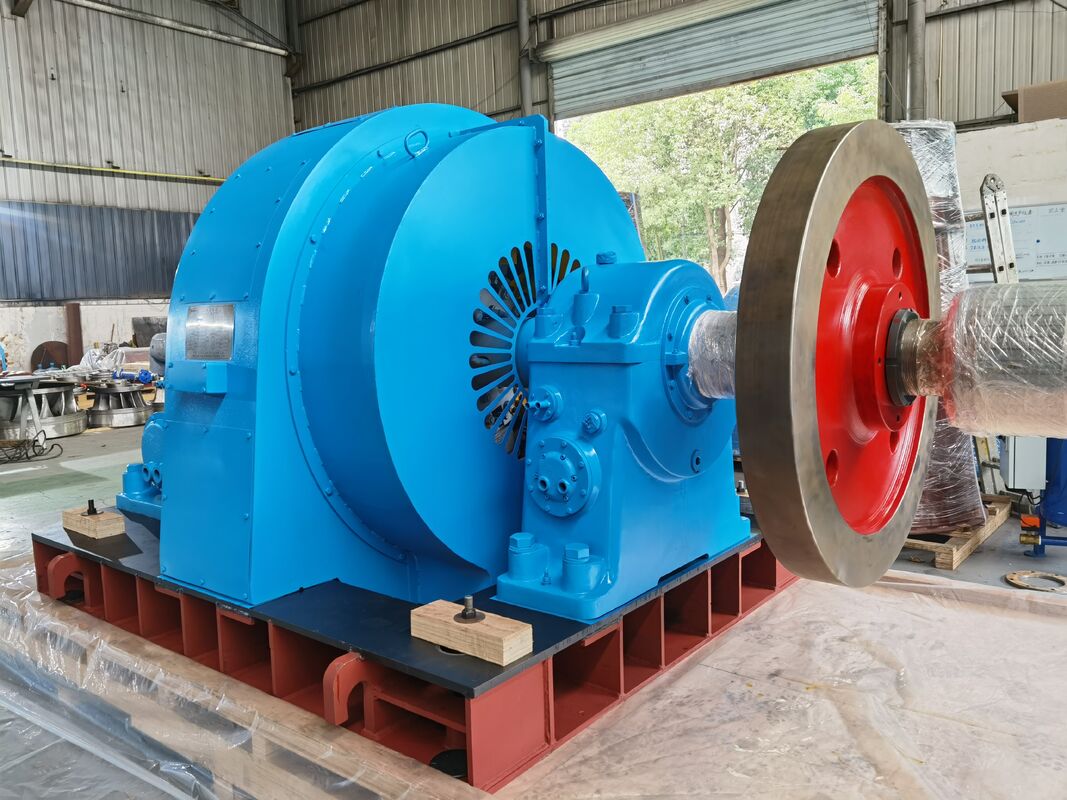

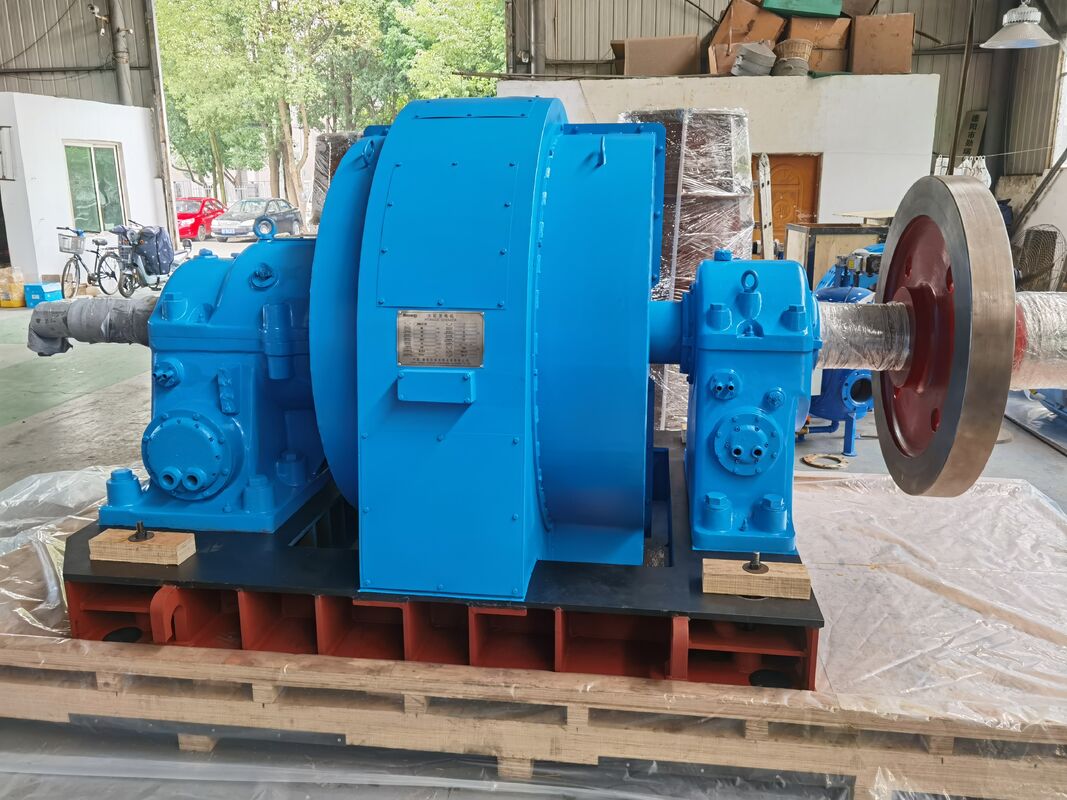

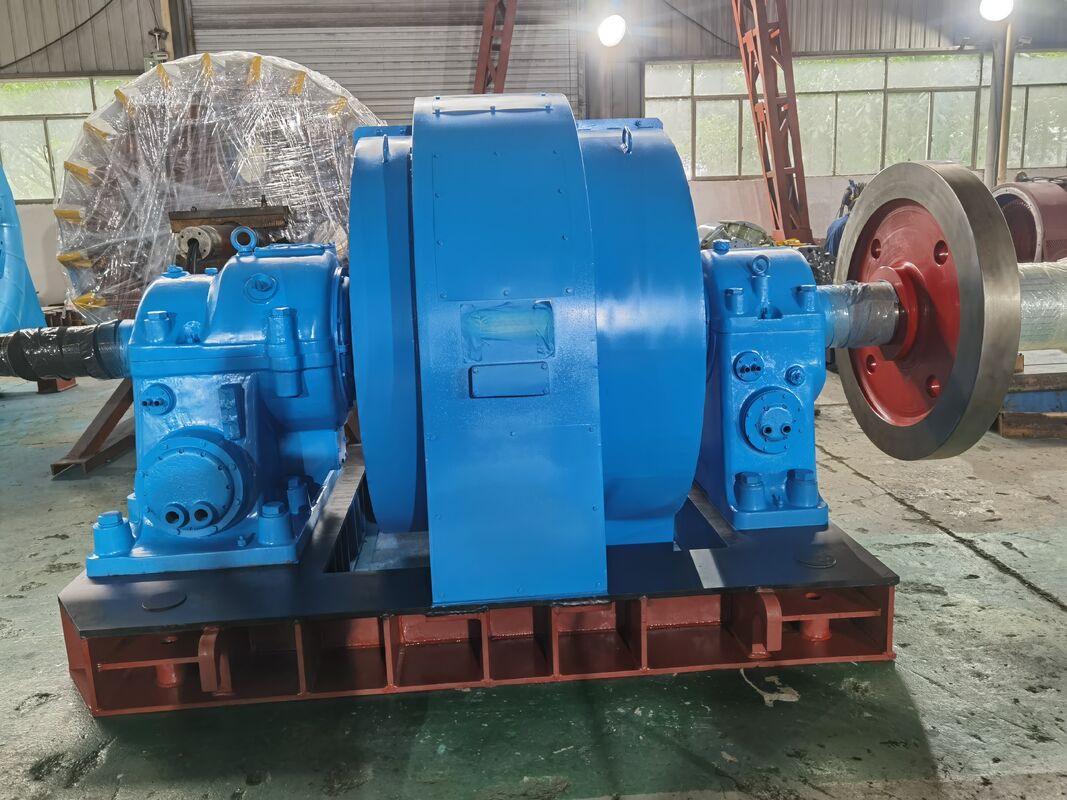

Francis Turbine Generator with 5-In-1 Integrated Control Panel
The Francis Turbine Generator is a highly efficient hydroelectric equipment system designed to convert flowing water energy into electrical power. Manufactured in Sichuan, China, this advanced turbine generator operates at 1000 revolutions per minute (r/min) and delivers power output ranging from 300 kW to 20 MW, making it suitable for various hydroelectric projects from small-scale installations to large power plants.
This reaction turbine features water flowing radially inward then axially outward, achieving up to 95% efficiency for maximum energy conversion and reduced operational costs. The generator supports both horizontal and vertical layout patterns, providing adaptability to specific site conditions and infrastructure constraints.
Key Features
- Product Name: Francis Turbine Generator
- Excitation Device: 5 In 1 Integrated Control Panel
- Number of Blades: 12 to 24
- Efficiency: Up to 95%
- Rated Frequency: 50Hz/60Hz
- Origin: Sichuan, China
- High-performance design for optimal energy conversion
- Durable and reliable construction for various hydroelectric projects
- Advanced excitation system for stable operation
Technical Specifications
| Parameter |
Specification |
| Excitation Device |
5 In 1 Integrated Control Panel |
| Number of Blades |
12 To 24 |
| OEM |
YES |
| Layout Pattern |
Horizontal Or Vertical |
| Insulation Class |
F/F |
| Rated Discharge |
12.2-30.4 m³/s |
| Efficiency |
Up To 95% |
| Startup Mode |
Soft Start |
| Rated Frequency |
50Hz/60Hz |
| Design Speed |
1000 r/min |
Applications
The Dongsen-DSSD HYDROPOWER Francis Turbine Generator (models HL-WJ and LJ) is ideal for medium to large hydropower plants requiring stable, continuous power output. Certified with ISO, CE, and TUV standards, it features stainless steel runners with 12-24 blades and supports voltage ratings of 6.3kV, 10kV, 20kV, and 35kV. Suitable for river and dam-based power stations, refurbishment projects, and industrial power plants.
Customization Options
We offer customized Francis Hydraulic Turbine Generator solutions tailored to specific project requirements. Each unit features premium stainless steel runners, F/F insulation class, and the integrated 5-in-1 control panel. Available with flexible packaging and payment terms including T/T and L/C.
Technical Support & Services
Comprehensive support includes installation guidance, maintenance schedules, troubleshooting, remote diagnostics, and on-site assistance. We provide training programs for technical staff and supply genuine replacement parts and upgrade kits to ensure optimal performance and longevity.
Packaging & Shipping
Each unit is securely packaged in custom-built wooden crates with shock-absorbing materials and protective coverings. Shipping options include sea freight, air freight, or land transport via reliable logistics partners. Thorough pre-shipment inspections ensure product integrity.
Frequently Asked Questions
What is the brand and model number of this Francis Turbine Generator?
Brand: Dongsen-DSSD HYDROPOWER, Models: Francis HL-WJ or LJ
Where is the Francis Turbine Generator manufactured?
Manufactured in Deyang, Sichuan, China
What certifications does the Francis Turbine Generator hold?
Certified with ISO, CE, and TUV international standards
What is the minimum order quantity and price?
Minimum order: 1 set, Price: $220,000 per set
What are the packaging and delivery details?
Packaged in wooden cases with plastic film protection, Delivery time: 120 days
What payment terms are accepted?
Accepted payment terms: T/T (Telegraphic Transfer) and L/C (Letter of Credit)
What is the annual supply capacity?
Supply capacity: 500 sets per year
