Name: 3 Phase Synchronous Generator Francis Hydro Turbine With Design Head 20m To 500m And For Vertical Or Horizontal Installation
Brand: Deyang Dongsen Hydropower Equipment Co., Ltd.
SKU: Hydro Turbine Generator
Price: 16,500.00 USD
Availability: InStock

Home > products > Hydro Turbine Generator >

3 Phase Synchronous Generator Francis Hydro Turbine With Design Head 20m To 500m And For Vertical Or Horizontal Installation

Vertical Installation Hydro Turbine

3 Phase Synchronous Hydro Turbine

500m Hydro Turbine

Brand Name:

DSSD-DEYANG DONGSEN

Certification:

ISO9001，CE,TUV

Model Number:

Hydro Turbine Generator

Document:

1-Deyang Dongsen Profile En... -.pdf

Request A Quote

3 Phase Synchronous Generator Francis Hydro Turbine With Design Head 20m To 500m And For Vertical Or Horizontal Installation

Product Details

Generator Type:

Brushless Excitation Or SCR Excitation

Outlet Pressure:

Low

Lifespan:

50 Years

Installation:

Vertical Or Horizontal

Design Life:

30-60years

Volute Material:

Carbon Steel

Control System:

Automatic Or Manual

Output Voltage:

400v,33kv,66kv

Payment & Shipping Terms

Minimum Order Quantity

Price

3000-30000 USD

Packaging Details

Wooden Box

Delivery Time

60-300days

Payment Terms

T/T/L/C

Supply Ability

500 Set

Straight League Connection Method High Head Water Turbine For 66kv Output Voltage

Get Best Price

3 Phase Synchronous Generator Francis Hydro Turbine With Design Head 20m To 500m And For Vertical Or Horizontal Installation

Get Best Price

Low Outlet Pressure Francis Hydro Turbine 4m To 16m Design Head for Long-lasting Performance

Get Best Price

50 Years Lifespan Hydro Turbine Generator Low Outlet Pressure 66kv Output Voltage for Industrial Applications

Get Best Price

+8618990240673

mely@dydssd.com

Contact Now

Product Description

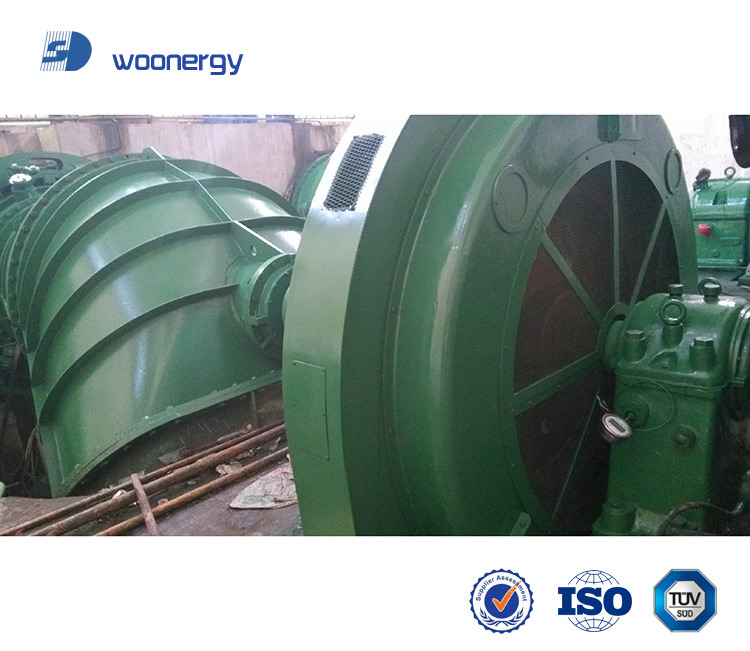

3 Phase Synchronous Generator Francis Hydro Turbine

Designed for heads from 20m to 500m with vertical or horizontal installation options.

Product Attributes

Attribute	Value
Generator Type	Brushless Excitation Or SCR Excitation
Outlet Pressure	Low
Lifespan	50 Years
Installation	Vertical Or Horizontal
Design Life	30-60 years
Volute Material	Carbon Steel
Control System	Automatic Or Manual
Output Voltage	400v, 33kv, 66kv

Product Description

This Francis hydro turbine system, integrated with a 3-phase synchronous generator, is engineered for high-efficiency hydropower generation across a broad design head range of 20m to 500m. Its dual-installation flexibility (vertical or horizontal) adapts to diverse topographical and spatial constraints, making it a versatile solution for small-scale rural plants, medium-sized grid-connected stations, and large-scale industrial power systems.

Key Features

Broad Head Adaptability: The CFD-optimized Francis runner achieves over 92% hydraulic efficiency across the 20m-500m head range, maintaining high performance even under fluctuating flow conditions.
Dual Installation Modes:
Vertical: Ideal for compact sites, reducing civil construction costs with a vertical shaft configuration.

Horizontal: Suited for terrain-limited areas (e.g., narrow valleys), simplifying maintenance access.
Synchronous Generator Advantages: Delivers a power factor ≥0.95 for grid stability, with generator efficiency exceeding 96% for continuous, low-loss operation.
Durability Engineering:
- Corrosion-resistant steel volute and anti-cavitation runner extend the service life to over 30 years.

- IP54-rated enclosure protects the generator from dust and moisture in harsh environments.
Smart Control Integration: Optional SCADA-compatible monitoring enables remote operation, real-time performance tracking, and automatic grid-connection.

Technical Parameters

Parameter	Description
Volute Material	Carbon Steel
Control System	Automatic Or Manual
Model	Customized
Output Voltage	400v, 33kv, 66kv
Lifespan	50 Years
Rated Power	100KW-7OMW
Power Range	200kw~20mw
Speed Range	150RPM-1000RPM
Rotational Speed	750-3000 rpm (matched to grid/pole count)
Insulation Class	Class F (upgradeable to Class H)

Applications

Grid-Connected Hydropower Plants: Harvests energy from rivers, reservoirs, or diversion channels with 20m-500m heads for bulk power supply to national grids.
Industrial Self-Supply: Powers mountainous factories, mines, or processing plants using local water resources, reducing reliance on external grids.
Off-Grid Systems: Delivers stable electricity to remote rural communities, island resorts, or mining sites independent of main power networks.

Customization Options

Runner Optimization: Tailored CFD-designed runner geometry for specific head/flow conditions to maximize efficiency.
Installation Engineering: Custom-built bases, couplings, and alignment systems for vertical/horizontal configurations.
Electrical Tuning: Voltage, frequency, and excitation systems matched to local grid standards (e.g., 110kV integration for large plants).
Smart Upgrades: Add-on SCADA modules, battery integration for energy storage, or remote-control interfaces.

Support and Services

Installation assistance
Maintenance guidance
Troubleshooting support
Repair services
Performance optimization advice
Spare parts availability

Packaging and Shipping

Packaging: The Hydro Turbine Generator is carefully packaged in a sturdy cardboard box with foam padding to prevent damage during transportation.

Shipping: Orders are processed promptly and dispatched within 1-2 business days. Options include standard and expedited delivery with tracking information provided.

Frequently Asked Questions

What is the brand name of the hydro turbine generator?

The brand name is DSSD-DEYANG DONGSEN.

Where is the hydro turbine generator manufactured?

The product is manufactured in Deyang, China.

What certifications does the hydro turbine generator have?

The product is certified with ISO9001, CE, and TUV.

What are the payment terms for purchasing the hydro turbine generator?

The payment terms accepted are T/T and L/C.

What is the minimum order quantity for the hydro turbine generator?

The minimum order quantity is 1 unit.
