Rated Speed Francis Turbine Generators 300KW-20MW 50Hz/60HZ
The Francis Turbine Generator is available in a range of power ratings from 300KW to 20MW. This makes it suitable for a wide range of applications, from small-scale hydroelectric power plants to large-scale installations. The generator is designed to operate at high efficiencies, typically between 90% and 96%. This means that it can convert a high proportion of the energy in the flowing water into electrical energy, maximising the output of the hydroelectric power plant.

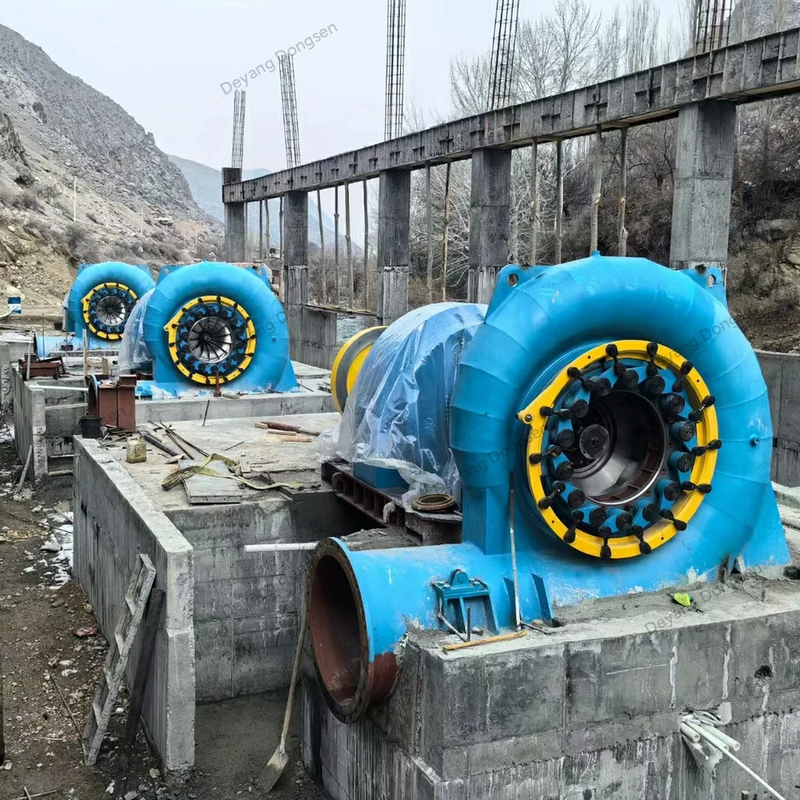

The Francis Turbine Generator is available in a range of installation modes, including vertical and horizontal. This means that it can be installed in a wide range of locations, including existing hydroelectric power plants and new installations. The vertical installation mode is particularly useful for installations in narrow, deep canyons, while the horizontal installation mode is ideal for installations in wide, shallow rivers.

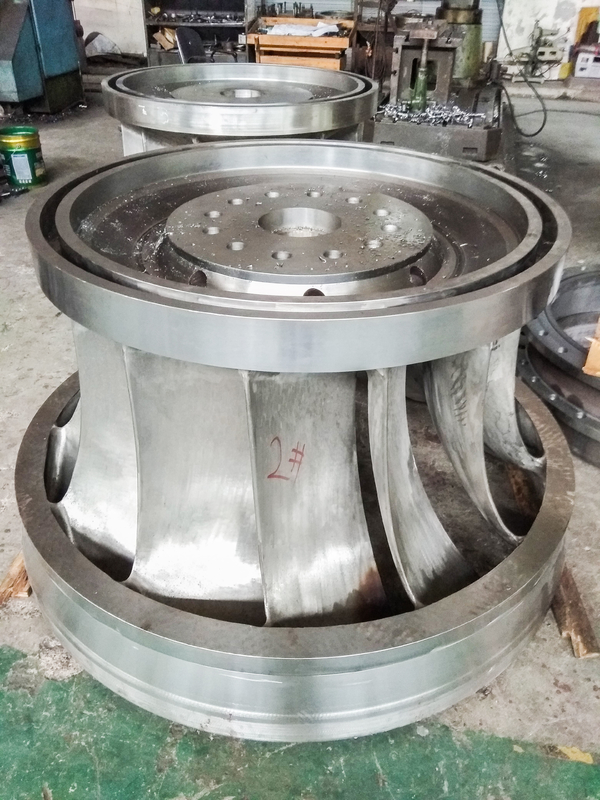

The runner material of the Francis Turbine Generator is typically made from stainless steel. This material is chosen for its high strength and corrosion resistance, which are essential properties for a component that is constantly exposed to flowing water. The stainless steel runner is also designed to be highly efficient, with a carefully crafted blade shape that maximises the energy transfer from the flowing water to the generator.
In summary, the Francis Turbine Generator is a highly efficient and reliable water turbine generator that is widely used in hydroelectric power plants. It is available in a range of power ratings from 300KW to 20MW and can be installed in both vertical and horizontal modes. The runner material is typically made from stainless steel, which provides high strength and corrosion resistance while maximising the energy transfer from the flowing water to the generator.
Product Features:
| Technical Parameters | Values |
|---|---|
| Product Name | Francis Water Turbine Generator |
| Rated Power | 300KW-20MW |
| Rated Voltage | 400V 800V 6.3kV 10kV |
| Rated Speed | 450-1000RPM |
| Rated Efficiency | 90%-96% |
| Control Mode | Automatic |
| Application | Power Plant |
| Installation Mode | Vertical Or Horizontal |
| Type | Francis Hydro Turbine Generator |
| Rated Frequency | 50Hz/ 60HZ |
| Rated Water Head | 20m-300M |
The Francis Turbine Generator is a versatile product that can be used in various occasions and scenarios. It can be used as a Francis Steam Turbine Generator in power plants that use steam to generate electricity. It can also be used as a Francis Hydraulic Turbine Generator in hydropower plants that use water pressure to produce energy. Furthermore, it can be used as a Francis Water Turbine Generator in water dams that utilize the power of flowing water to generate electricity.
The installation mode of the Francis Turbine Generator can be either vertical or horizontal, depending on the needs of the user. The rated efficiency of this product ranges from 90%-96%, ensuring maximum utilization of energy. The rated power of the Francis Turbine Generator can range from 300KW to 20MW, making it suitable for a wide range of power generation needs. The rated speed of this product ranges from 450-1000RPM, making it a highly efficient and reliable option for power generation.
The Francis Turbine Generator comes with a minimum order quantity of 1 set, and is priced at $40000. Our packaging details include export packing (wooden cases+plastic film), ensuring that our product is safe and secure during transport. The delivery time of our product is 200 days, and payment terms are T/T. Our supply ability is 500 per year, ensuring that our customers can always rely on us for their power generation needs.
Get your Francis Turbine Generator customized to your specifications today!
The Francis Turbine Generator product technical support and services include:
- On-site installation and commissioning
- Troubleshooting and maintenance
- Spare parts supply
- Technical training and consulting
- Upgrades and retrofits
- Performance testing and analysis
