Place of Origin:
China Deyang City
Brand Name:
DSSD
Certification:
iso,tuv,ce Certification
Model Number:
RB-2460
Contact Us

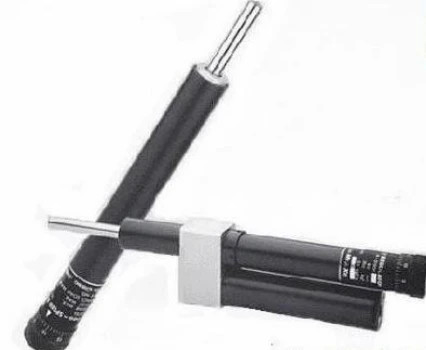

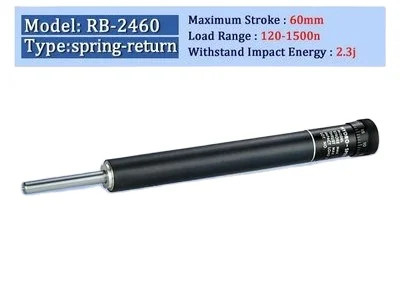

RB-2460 Hydraulic Speed Regulator
Hydraulic speed regulator is a hydraulic feed speed control device which can freely adjust the cutting feed from low speed to high speed. There are two types of return mode: spring return type and air return type, which can be selected according to different uses.
In addition, speed skills also prepared for pipe processing of the in-between hydraulic damper.
There are different types of Hydraulic Speed Regulator.
Type RB-XXXX
Characteristic
1. Compact structure, arbitrary installation direction.
2. Fully enclosed structure without supplementary working oil is adopted. Can maintain long-term stability of the control function.
3. The change of control speed caused by rapid load change is very small. Stable feed speed can be obtained.

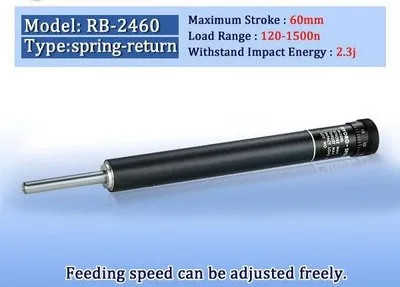

4. Feed speed can be easily adjusted by speed adjusting knob.
Main Parameters
Item | Stroke Max(mm) | Load Range(N) | Speed Control Range(mm/sec) | Permissible Impact Energy(J) | Weight(kg) |
RB-2412 | 12 | 98-490 |
0.2-20(F=98N) 0.3-30(F=290N) 0.4-35(F=490N)
|
1.47 | 0.35 |
RB-2430 | 30 | 200-1,500 |
0.1-5(F=200N) 0.2-25(F=490N) 0.3-40(F=980N) 0.4-50(F=1,500N) |
2.45 | 0.41 |
RB-2460 | 60 | 0.58 | |||
RB-3140 | 40 | 490-2,900 |
0.1-10(F=490N) 0.2-25(F=1,500N) 0.3-35(F=2,200N) 0.5-40(F=2,900N) |
3.92 | 0.95 |
RB-3160 | 60 | 1.2 | |||
RB-3860 | 60 | 2,200-5,400 |
0.2-15(F=2,200N) 0.3-25(F=3,700N) 0.4-30(F=5,400N) |
5.88 | 1.8 |
