Place of Origin:
DeYang,SiChuan,China
Brand Name:
DSSD
Certification:
ISO,CE,TUV
Model Number:
CJ-pelton hydro turbine
Contact Us

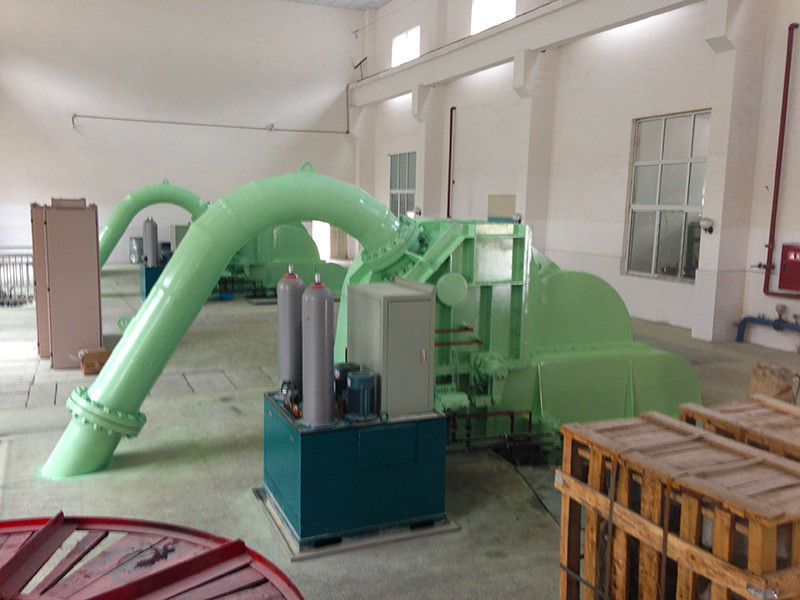

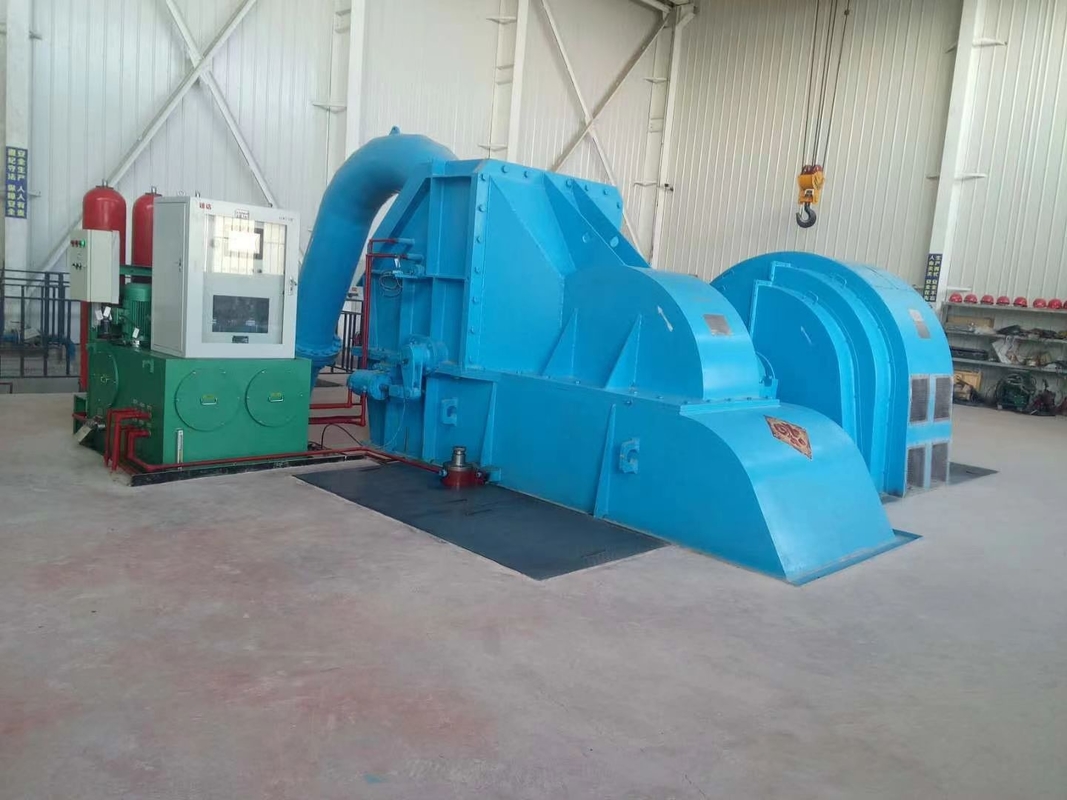

High Power Pelton Turbine Generator 100kw-50mw Brushless Excitation Mode Stainless Steel
The Pelton Turbine Generator is a marvel of modern engineering, designed to harness the power of high-head water sources, converting the kinetic energy of water into electricity with remarkable efficiency. As an Impulse Turbine Generator, it operates on the principle of jet flow, using the momentum of water to drive the turbine and generate power. This product is a testament to the innovation in renewable energy technology, offering a dependable solution for electricity generation from hydropower.
At the heart of this Pelton Type Turbine Generator is its outstanding design, which incorporates buckets arranged on the wheel perimeter. When the water jets hit these buckets, the water's velocity is transformed into rotational motion, causing the generator to produce electricity. This technology is particularly well-suited for high-head, low-flow water conditions, making the most of the available water resources without the need for large volumes of water.
One of the defining features of the Pelton Turbine Generator is its Protection Grade of IP54. This indicates a strong level of protection against dust ingress, which could otherwise impact performance, and against water splashing from all directions, ensuring the generator's components remain safe and operational even in challenging environmental conditions. This makes the Pelton Turbine Generator not just powerful, but also highly reliable and durable over time.
The generator operates at a Rated Frequency of 50/60Hz, compatible with global power systems. This frequency range ensures that the electricity generated can be easily integrated into local power grids, providing a stable and consistent supply of energy to meet the demands of consumers. Whether the grid operates at 50Hz, common in Europe and most of Asia, or at 60Hz, predominant in the Americas, the Pelton Turbine Generator can adapt seamlessly to the system's requirements.
Concerning the Excitation Mode, the Pelton Turbine Generator offers two options: Brushless or Thyristor. The brushless excitation system is low-maintenance and has a longer lifespan since it eliminates the wear and tear associated with brushes. On the other hand, a thyristor-based excitation system provides precise control over the generator's output, ensuring optimal performance and stability under varying load conditions. This flexibility allows customers to choose the excitation mode that best suits their operational needs and preferences.
The Speed Range of the Pelton Turbine Generator is quite versatile, spanning from 500 to 3000r/min. This broad range allows for fine-tuning to achieve maximum efficiency and performance based on the specific characteristics of the water source and the requirements of the power generation system. The ability to operate effectively across such a wide range of speeds is a testament to the generator's advanced design and engineering.
When it comes to operational excellence, the Pelton Turbine Generator is second to none. Its robust construction and thoughtfully engineered components ensure that it provides reliable and efficient service for years to come. The combination of protection, frequency adaptability, choice of excitation mode, and a wide operational speed range makes this generator a top choice for anyone looking to invest in sustainable and renewable energy production.
In conclusion, the Pelton Turbine Generator represents the pinnacle of Impulse Turbine Generator technology. It is specifically tailored to meet the needs of modern electricity generation, offering unparalleled efficiency, reliability, and adaptability. Whether for small-scale installations or large utility-grade projects, the Pelton Turbine Generator stands out as a superior choice for clean, renewable energy generation.
| Parameter | Specification |
|---|---|
| Excitation Mode | Brushless Or Thyristor |
| Weight | 5-50t |
| Cooling Method | Air/Oil Cooling |
| Rated Frequency | 50/60Hz |
| Efficiency | 85-95% |
| Application | Power Plant/Hydropower Station |
| Dimension | Customized |
| Insulation Class | F |
| Rated Current | 100-1000A |
| Power Output | 100kw-50mw |
The DSSD CJ-pelton hydro turbine, a leading-edge Pelton Turbine Power Generator, presents a perfect solution for harnessing the power of water in various settings. This state-of-the-art impulse turbine generator has been meticulously crafted in the heart of DeYang, SiChuan, China, a region renowned for its expertise in turbine technology. Fully certified with ISO, CE, and TUV standards, the DSSD Pelton Wheel Turbine Generator exemplifies reliability and efficiency.
Designed for a minimum order quantity of just one set and priced at $30,000, the DSSD Pelton turbine is both accessible and value-oriented. Each unit is encased in robust export packing, combining wooden cases and plastic film to ensure its integrity during transportation. The delivery time for this bespoke machinery is approximately 150 days, a testament to the meticulous care and precision that go into its manufacture. Payment terms follow the EXW model, and DSSD's impressive supply ability stands at 500 units per year, highlighting their robust production capabilities.
With its application primarily in Power Plants and Hydropower Stations, the DSSD Pelton Turbine Generator is versatile for settings requiring a rated frequency of 50/60Hz. The generator's significant weight range of 5-50t and a broad speed range of 500-3000r/min make it adaptable to various operational requirements. Moreover, the dimension of each unit is customized to fit the unique needs of each facility, ensuring a seamless integration into existing systems.
The DSSD Pelton Turbine is ideal for scenarios where high head and low flow conditions are prevalent, making it an optimal choice for mountainous regions where water sources may be located at higher elevations. The Pelton wheel design is notably efficient in converting the water's kinetic energy into mechanical energy, thereby generating electricity with precision and consistency. This makes the DSSD Pelton Wheel Turbine Generator not only a powerful piece of machinery but also an environmentally sustainable option for energy production.
In conclusion, the DSSD Pelton Turbine Power Generator stands as a paragon of innovation in the realm of impulse turbine generators. Its robust design, customized dimensions, and reliable performance under various operational conditions make it an indispensable asset for any power generation project. Whether for a newly constructed hydropower plant or the upgrade of an existing facility, the DSSD Pelton Turbine Generator promises to deliver unparalleled efficiency and steadfast service for years to come.
Brand Name: DSSD
Model Number: CJ-pelton hydro turbine
Place of Origin: DeYang, SiChuan, China
Certification: ISO, CE, TUV
Minimum Order Quantity: 1 set
Price: $30,000
Packaging Details: Export packing (wooden cases+plastic film)
Delivery Time: 150 Days
Payment Terms: EXW
Supply Ability: 500 per year
Efficiency: 85-95%
Rated Frequency: 50/60Hz
Cooling Method: Air/Oil Cooling
Speed Range: 500-3000r/min
Rated Voltage: 6-10kV
Discover the power of water with our advanced Pelton Type Turbine Generator . Harness the energy of water jets with our Water Jet Turbine Generator . Experience the efficiency and reliability of our Pelton Wheel Turbine Generator , meticulously engineered to convert water energy into electrical power.
The Pelton Turbine Generator is designed for high efficiency and reliability, incorporating state-of-the-art technology to convert water energy into electricity. Our product technical support and services are committed to ensuring that your Pelton Turbine Generator operates at optimal performance levels. We offer a comprehensive range of services including installation guidance, operational troubleshooting, maintenance advice, and upgrade options. Our technical support team is well-versed in all aspects of the Pelton Turbine Generator and is ready to assist with any inquiries or issues that may arise during the lifecycle of the product. We are dedicated to providing prompt and effective solutions to maintain the high standard of our product and to ensure customer satisfaction.
The Pelton Turbine Generator is meticulously packaged to ensure its integrity and safe delivery to our customers. The packaging process involves multiple steps for optimal protection:
1. Initial Wrapping: The generator is first wrapped in a protective film that shields it from moisture and dust.
2. Cushioning: Shock-absorbing materials are placed around the generator to prevent damage from vibrations and impacts during transit.
3. Wooden Crate: The cushioned generator is then securely placed inside a custom-built wooden crate, providing a robust outer layer of protection. The crate is constructed to meet international shipping standards.
4. Sealing: Once inside the crate, the generator is sealed and the crate is banded to prevent any opening during transport.
5. Labeling: The outside of the crate is clearly labeled with handling instructions, the product name, model number, and a fragile warning to ensure careful handling by shippers.
6. Documentation: All necessary shipping documents, including the packing list, commercial invoice, and any required certificates, are attached in a waterproof pouch to the crate.
7. Shipment: The packaged generator is then loaded onto the appropriate mode of transport (truck, ship, or air freight) for delivery to the designated address, ensuring that it arrives safely and ready for installation and operation.
Q1: What is the model number and brand of the Pelton Turbine Generator?
A1: The model number of the Pelton Turbine Generator is CJ-pelton hydro turbine, and it is manufactured by the brand DSSD.
Q2: Where is the Pelton Turbine Generator manufactured?
A2: The Pelton Turbine Generator is manufactured in DeYang, SiChuan, China.
Q3: What certifications does the Pelton Turbine Generator have?
A3: The Pelton Turbine Generator holds ISO, CE, and TUV certifications.
Q4: What is the minimum order quantity for the Pelton Turbine Generator?
A4: The minimum order quantity for the Pelton Turbine Generator is one set.
Q5: What are the packaging details and delivery time for the Pelton Turbine Generator?
A5: The Pelton Turbine Generator is packaged using export packing, which includes wooden cases and plastic film. The delivery time is 150 days.
Q6: How much does the Pelton Turbine Generator cost and what are the payment terms?
A6: The price for the Pelton Turbine Generator is 30000. The payment terms are EXW (Ex Works).
Q7: What is the supply ability of the Pelton Turbine Generator?
A7: The supply ability of the Pelton Turbine Generator is 500 units per year.
