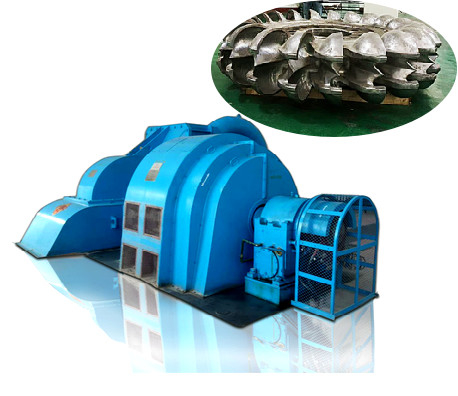

1000kw Water Pelton Turbine Generator
1. Brief Introduction
Pelton turbine generator suit to water head 90 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement,nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two or three nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement.
2. Product Paramenters
| Runner range | 70cm-180cm |
| Speed range | 150RPM-1000RPM |
| Efficiency | 85%-93% |
| Description | 300kw-20mw Low Price Pelton Turbine |
| Water head | 90m-600m |
| Nozzle number | Single/Multiple |
| Power range | 300kw-20mw |
| Frequency | 50Hz/60Hz |
| Generator Voltage | 400v,800v,6300v,10500v |
| Layout pattern | Horizontal or Vertical |
| Material | Stainless Steel |
| Excitation | Brushless or Static Excitation System |
| Generator Insulation | F/F |
| Lifespan | 20~50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co.,Ltd |
3. Application
4. Our advantages
1) We have senior engineering and technical experts, professional hydro-generator design team and installation team
2) Provide complete proposal for hydro power plant from water to wire
3) Abundant foreign power plant project implementation experience
5. FAQ
1) Payment terms
L/C,and 30% T/T in advance.
2) Delivery period
Normally4- 6 months after confirmation of orders.
3) Package
We will use wooden box and plastic film to protect the products.
4) What Kind of hydroelectric generator should I choose?
Hydro turbine is a customized product.We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
