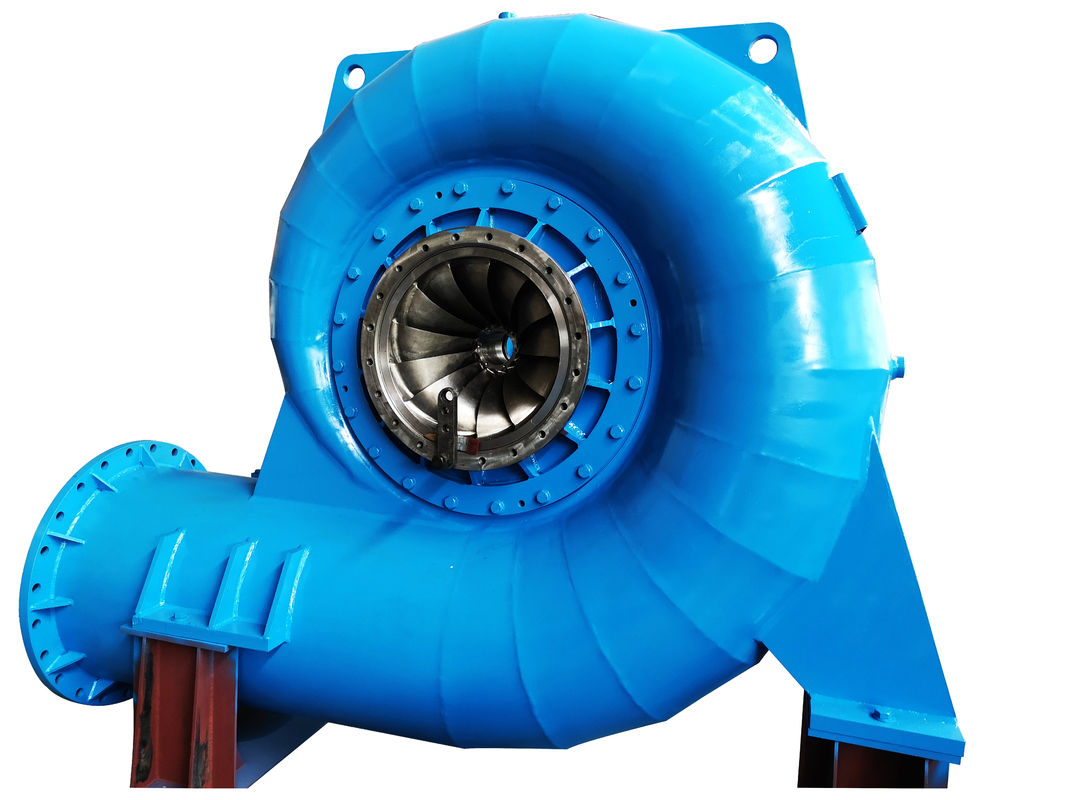

200KW 500KW Francis Turbine Generator For Hydropower Station

200KW 500KW Francis Turbine Generator For Hydropower Station
Features Gallery Product Description Request A Quote
Material: Stainless Steel
Product Name: Francis Turbine
Efficiency: 85%-93%
Runner Material: Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Oem: Yes
Rated Rotor Speed: 200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Speed Range: 150RPM-1000RPM
Color: Customized
Type: Renawable Resources
Power: 100KW-50MW
High Light:

200KW Francis Turbine Generator


Hydropower Station Francis Turbine Generator


Stainless Steel Francis Hydro Turbine

Basic Infomation
Place of Origin: china
Brand Name: DSSD
Certification: iso,tuv
Model Number: francis turbine generator
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 6 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Product Description

200KW 500KW Francis Turbine Generator For Hydropower Station


1. Brief Introduction

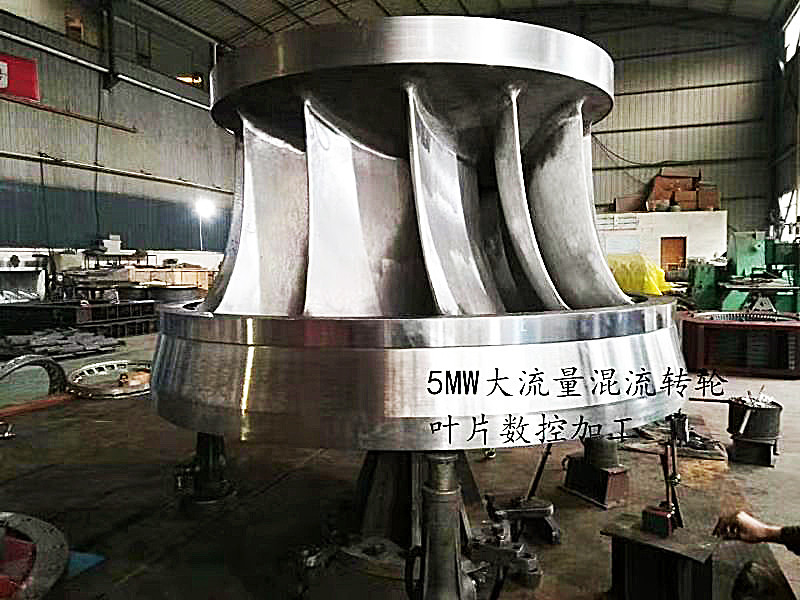

Francis turbine, also known as Francis turbine, is a type of impact turbine.The water flows radially into the runner from all sides, and then flows out of the runner approximately axially. The runner is composed of an upper crown, a lower ring and blades.


Scope of application: H=30~700 m, medium flow rate, single unit capacity: tens of thousands of kW~hundreds of thousands of kW.


Due to its high efficiency, the Francis type has become the most widely used water turbine in the world todayThe development trend in recent years is high water head, large capacity, high specific speed and high efficiency.


2. Product Paramenters


Water Head 25m-300m
Runner Diameters 0.45m-5m
Power Range 100KW to 20MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.


3. Application

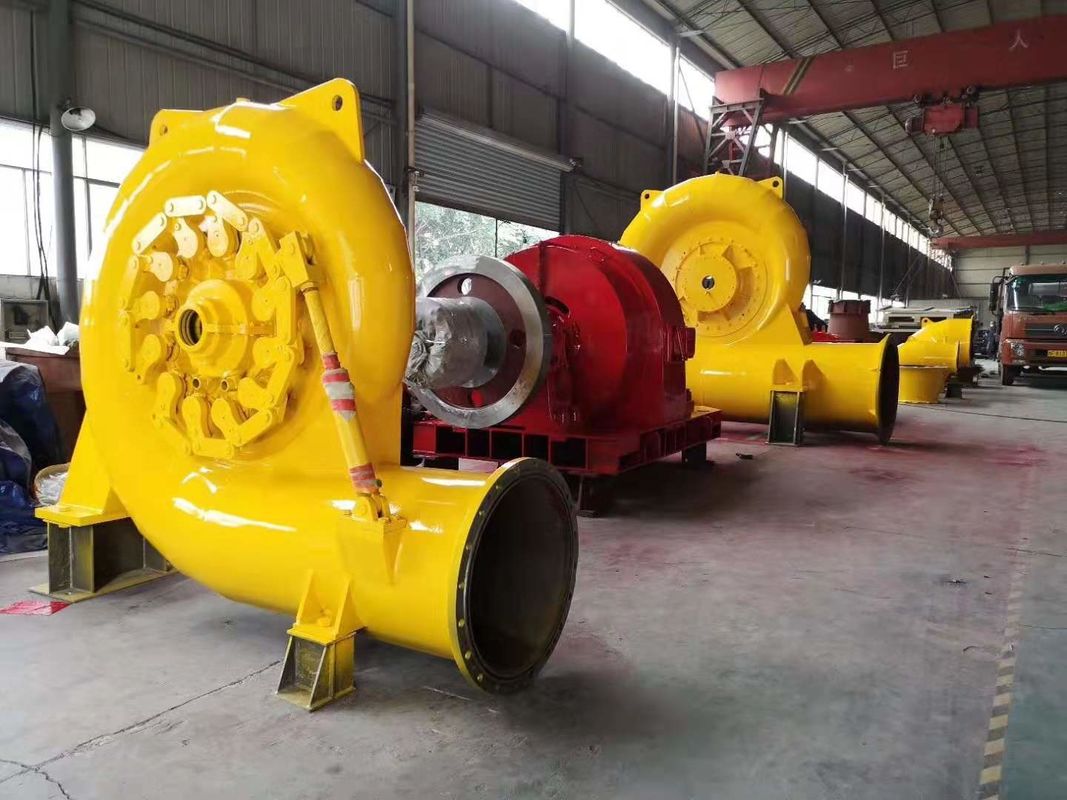

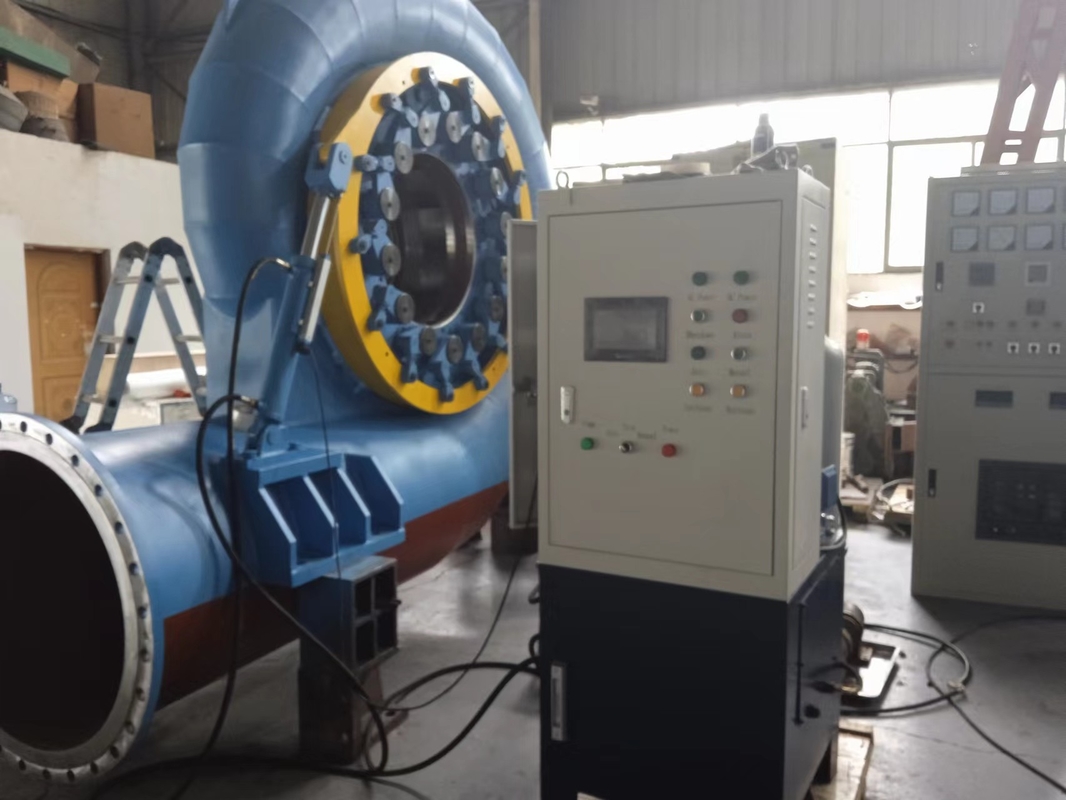

200KW 500KW Francis Turbine Generator For Hydropower Station 0



3. Our advantages


1)The company is located in Deyang, which has the world's largest hydropower equipment research and development company


2) We have senior engineering and technical experts, professional hydro-generator design team and installation team


3) Provide complete proposal for hydro power plant from water to wire







Our main products included:

(1) Kaplan turbine generators series.

(2) Turgo turbine generators series.

(3) Tubular turbine generators series.

(4) Francis turbine generators series.

(5) Pelton turbine generators series .

5. FAQ


1) Delivery period

Normally 6 months after confirmation of orders.


2) Package

We will use wooden box and plastic film to protect the products.


3) What Kind of hydroelectric generator should I choose?

Normally when you require, please let us know the details as follows, then we can provide the correct price for you.

1. Unit Capacity: ___KW

2. Water head:___M

3. Water flow:____M3/s

4. Frequency: 50HZ or 60HZ
