Customized Kaplan Hydro Turbine Generator Low Flow 100kw~70mw

Customized Kaplan Hydro Turbine Generator Low Flow 100kw~70mw
Features Gallery Product Description Request A Quote
Name: Costomized Kaplan Turbine Genaretor
Color: Customized
Material: Stainless
Warranty: 1 Year
Power Range: 300kw~20mw
Terms Of Payment: FOB T/T L/C
High Light:

Hydro Turbine Generator 70mw


Customized Kaplan Turbine Generator


Stainless Kaplan Hydro Turbine Generator

Basic Infomation
Place of Origin: China Deyang
Brand Name: Dong Sen
Certification: iso 9001 tuv ce
Model Number: Kaplan Turbine Generator
Payment & Shipping Terms
Packaging Details: wooden packing
Delivery Time: 6 months
Payment Terms: L/C, D/A, D/P, , T/T
Supply Ability: 1000set
Product Description

100kw~70mw Customized Kaplan Hydro Turbine Generator High Water Head And Low Flow


Brief Introduction



Reaction turbines are acted on by water, which changes pressure as it moves through the turbine and gives up its energy. They must be encased to contain the water pressure (or suction), or they must be fully submerged in the water flow.

Newton's third law describes the transfer of energy for reaction turbines.

Most water turbines in use are reaction turbines and are used in low (<30m/98 ft) and medium (30-300m/98–984 ft) head applications. In reaction turbine pressure drop occurs in both fixed and moving blades.




Places of Orign Sichuan,China
Type Kapaln Turbine Generator
Frequnecy 50HZ/60HZ
Certificates ISO 9001 TUV CE

Impulse turbines change the velocity of a water jet. The jet pushes on the turbine's curved blades which changes the direction of the flow. The resulting change in momentum (impulse) causes a force on the turbine blades. Since the turbine is spinning, the force acts through a distance (work) and the diverted water flow is left with diminished energy.

Prior to hitting the turbine blades, the water's pressure (potential energy) is converted to kinetic energy by a nozzle and focused on the turbine. No pressure change occurs at the turbine blades, and the turbine doesn't require a housing for operation.

Newton's second law describes the transfer of energy for impulse turbines.

Impulse turbines are often used in very high (>300m/984 ft) head applications .

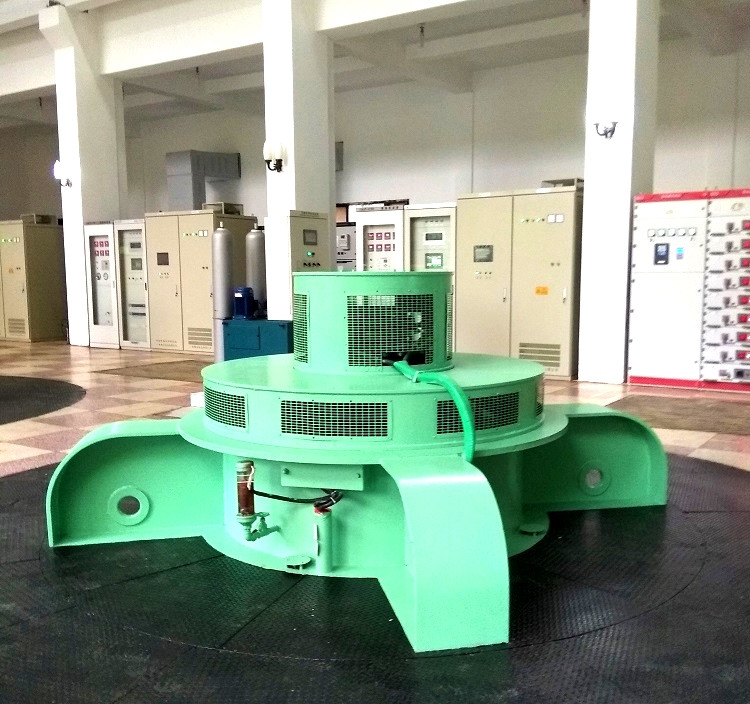

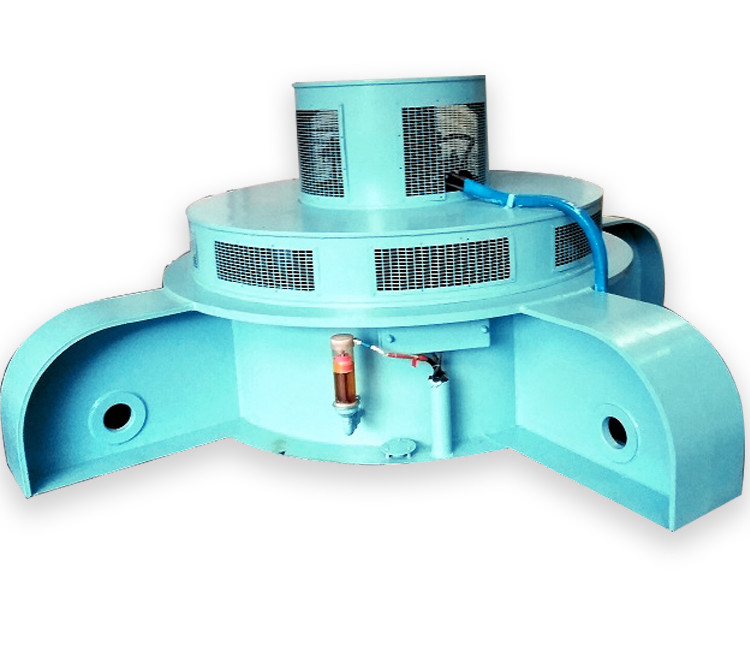

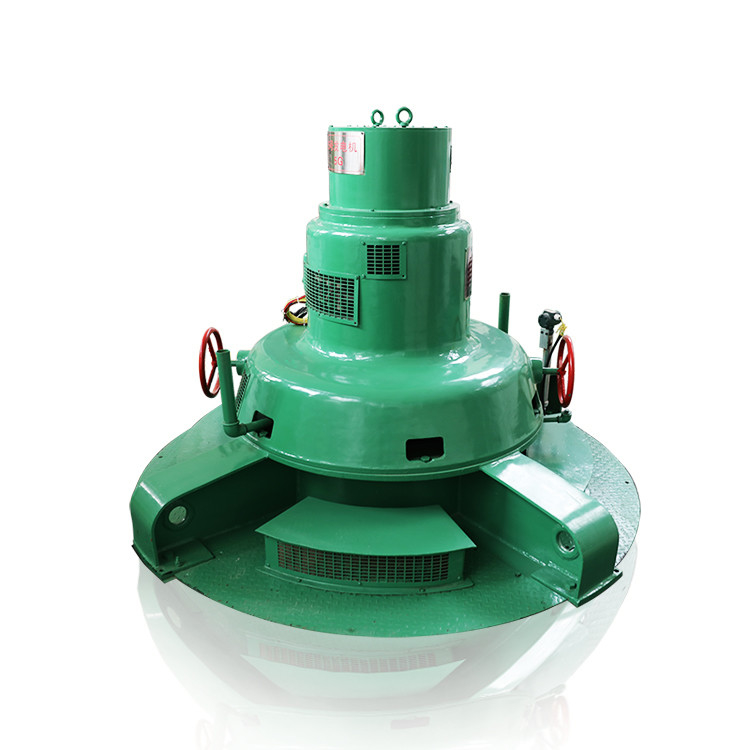

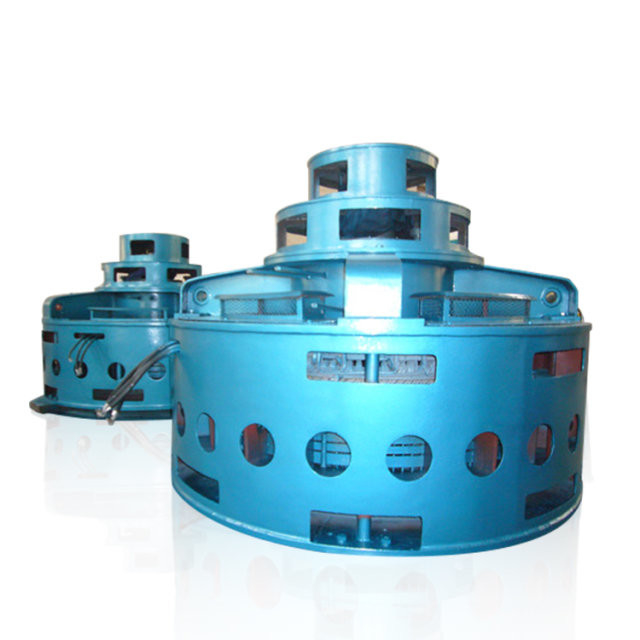

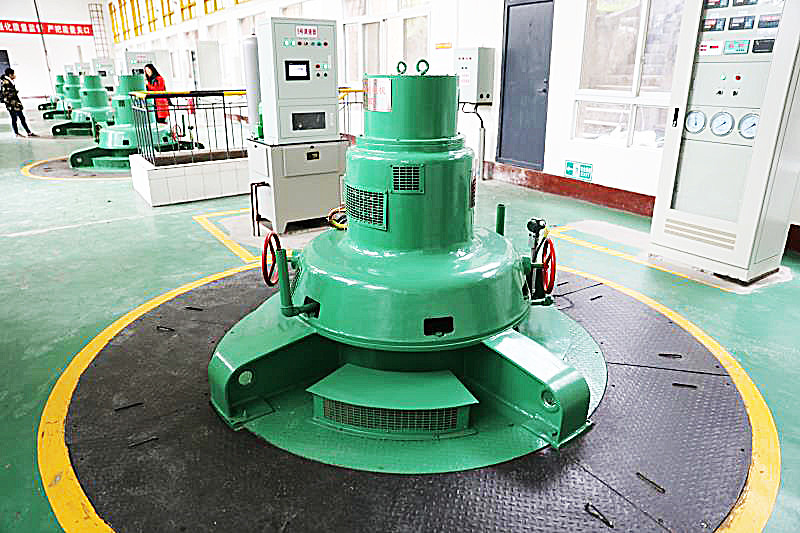

Customized Kaplan Hydro Turbine Generator Low Flow 100kw~70mw 0Customized Kaplan Hydro Turbine Generator Low Flow 100kw~70mw 1Customized Kaplan Hydro Turbine Generator Low Flow 100kw~70mw 2

This belongs to customized products. We could design products according to your requirement. All of our products are strictly
designed and manufactured under ISO9001 quality management system and TUV, BV.
Please can you send me below parameters, so our engineers could support your project?
Where is the plant?
1.Design head: ___m
2.Design flow: ___m³/s
3.Frequency: 50Hz or 60Hz?

4. Unit Capacity: ___KW;How many kw each unit? How many units?
5. Power factorCOSφ:
6.Generator output voltage: __V
7.On-grid or Off-grid type? (On-grid type voltage: ____Kv)
8. a.s.l: ___ m
9.Basic situation about the project and your company introduction.
