Place of Origin:
Chian,Deyang city
Brand Name:
DSSD
Certification:
ISO 9001 CE TUV
Model Number:
Francis Turbine
Contact Us
Video
Video

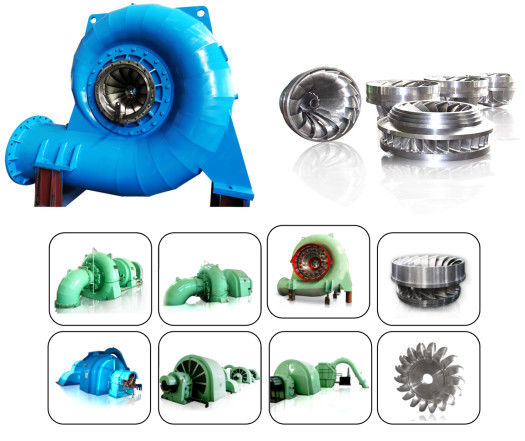

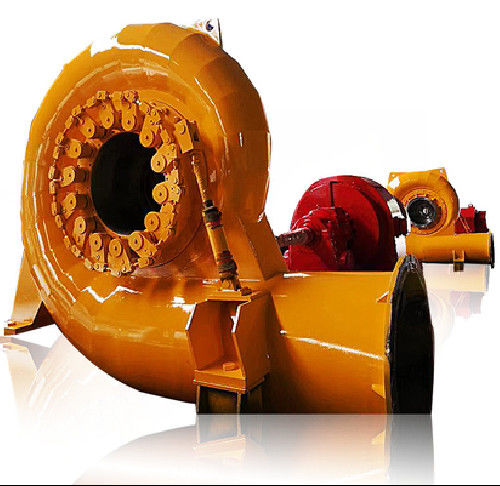

100kw~70mw Francis Tuebine Generator High Water Head and Low Flow
Product Description
1). Francis turbine has the advantages of compact structure, high efficiency and can adapt to a wide range of water head of turbine type. It is one of the widely used around the world;
2). When the water flow through the turbine wheel, it enters to radial, axial flow, so it is also called the radial axial flow turbine;
3). Francis turbine is also called the Francis turbine. The water flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade;
Product Details
| Power Range | 300kw~70mw |
| Water Head | 25m to 300m |
| Generator Insulation | F/F |
| Layout pattern | Horizontal or Vertical |
| Excitation | Brushless or Static excitation system |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
Our advantages
1) Abundant foreign power plant project implementation experience.
2) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase.
3) More than 20 years of industry experience, install commissioning more than 100 equipment each year.
