500KW Pelton Turbine Generator 400V To 10500V For River Power

Pelton Turbine Generator/River Turbine Generator/Pelton Wheel Water Turbines

1.product Introduction

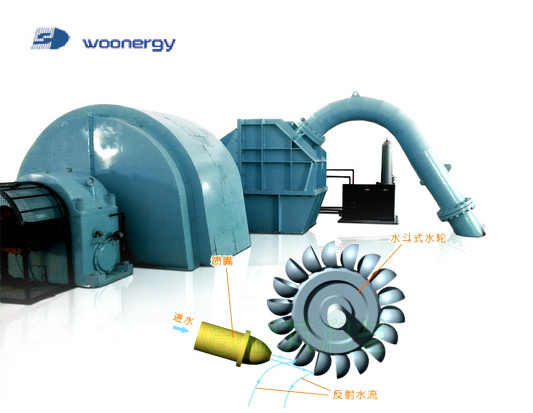

A Pelton turbine is a hydraulic prime mover whose outflow centerline is tangent to the pitch circle of the runner, and whose blades consist of a series of double bowl-shaped water buckets. According to the layout of the main shaft, the main shaft is divided into two parts, the horizontal shaft and the vertical shaft, no matter which kind of runner is always located in the atmosphere.
This turbine is suitable for high head, low flow hydropower stations. The application head of large bucket turbine is about 300-1700 meters, and the small one can reach 40-250 meters. At present, all power stations with a water head exceeding 1000 meters in the world use bucket turbines, and the power of a single unit can reach more than 400MW.
A Purton turbine is a hydraulic prime mover that works according to the law of momentum. However, we have been using the basic theory of anti-turbo research for many years, and even many concepts, norms and even industry habits are derived from anti-turbo. This has greatly hindered the technological progress and development of pelton hydro generator turbine.

2.Application

3.More about us

This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.

Please can you send me below parameters, so our engineers could support your project?
Where is the plant? How many kw each unit? How many units?
1. Design head: ___m
2. Design flow: ___m³/s
3. Frequency: 50Hz or 60Hz
4. M.a.s.l: ___m
5. Power factor COSφ:
6. Generator output voltage: __V
7. On-grid or Off-grid type? (On-grid type voltage: ____Kv)
8. Basic situation about the project and your company introduction.
