Kaplan turbine
Kaplan Turbine also called axial-flow turbine. It is of the propeller type, similar to an airplane propeller. Its water head is from 5m to 70m. Thus, this type of turbine is mostly used to hydropower stations with low water head and big flow. The kaplan's blades are adjustable for pitch and will handle a great variation of flow very efficiently. Generally, Kaplan turbine is composed of distribuor, guide vane, runner, draft etc.

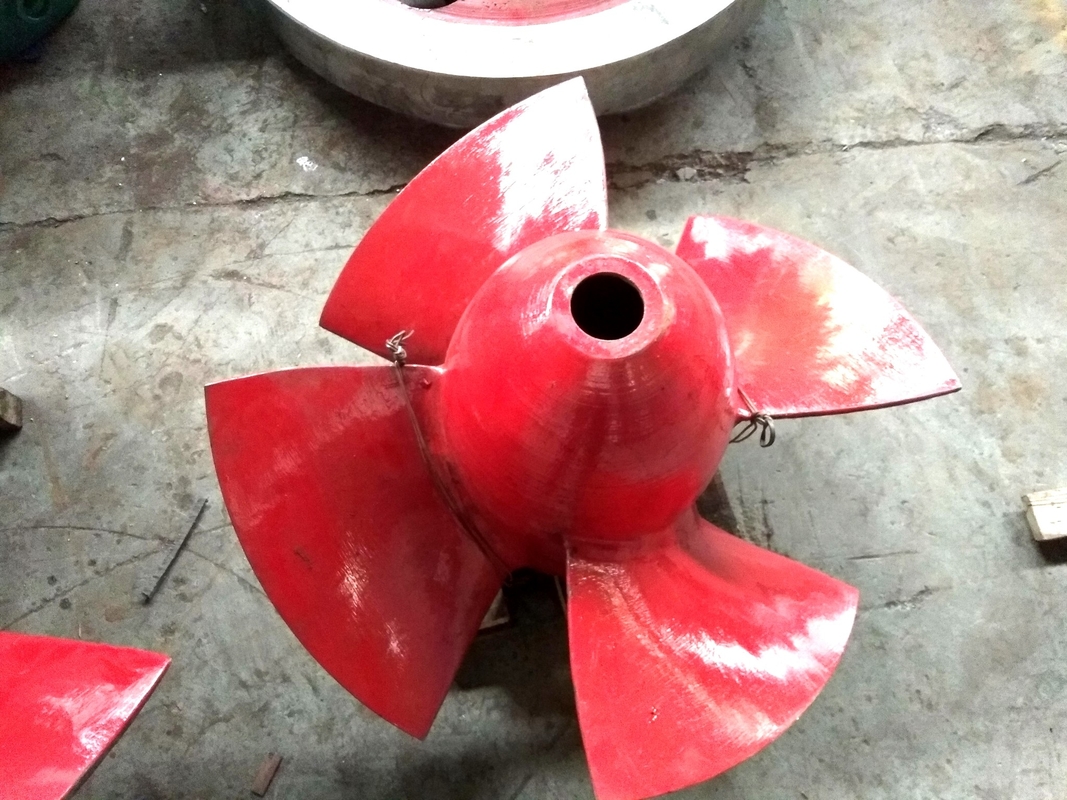

Unlike other types of propeller turbine, the runner blades are movable. The guide vanes could also be turned and were automatically adjusted to any angle suitable to that of the blades by a combiner, so the turbine was efficient at different work-loads.
| Water Head | 25-300m |
| Runner Diameters | 0.45-5m |
| Power Range | 300KW to 20MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V,800V,6300V,10500V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel |
| Excitation | Brushless or Static excitation system |
| Generator Insulation | F/F |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co.,Ltd |
About DSSD HYDRO
Deyang Dongsen Hydropower Equipment Co., Ltd. is a professional comprehensive technology engineering company including the design, manufacturing, installation and maintenance of hydropower equipment as well as in the hydropower station investment.
We have five main water turbine generator set categories: Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine. Each type of turbine generator set capacity could be 100~50000KW.
Our company is located in Deyang, one of the three major manufacturing bases of China's heavy industry. We have our independent factory, office as well as living area. Having provided equipment more than 500 hydropower stations with our 70 professional staffs, Dongsen has a high reputation in the water turbine generator set manufacturing industry.
A large number of turbine products are exported to South America, Southeast Asia, Africa, Europe, America, Asia, etc.
We have the best factory price and the most efficient quality.
Advantages of our products:
1. Offer professional advice according to client's requirement
2.Long lifespan: 30~50 years
3.Warranty: 3~12months
4.Guide customers to the site installation and provide technical guidance
5. Have more than 15 years experience in manufacturing water turbine generator
