Place of Origin:
China
Brand Name:
DSSD
Certification:
ISO, TUV, CE
Model Number:
Francis Hydro Turbine
Contact Us

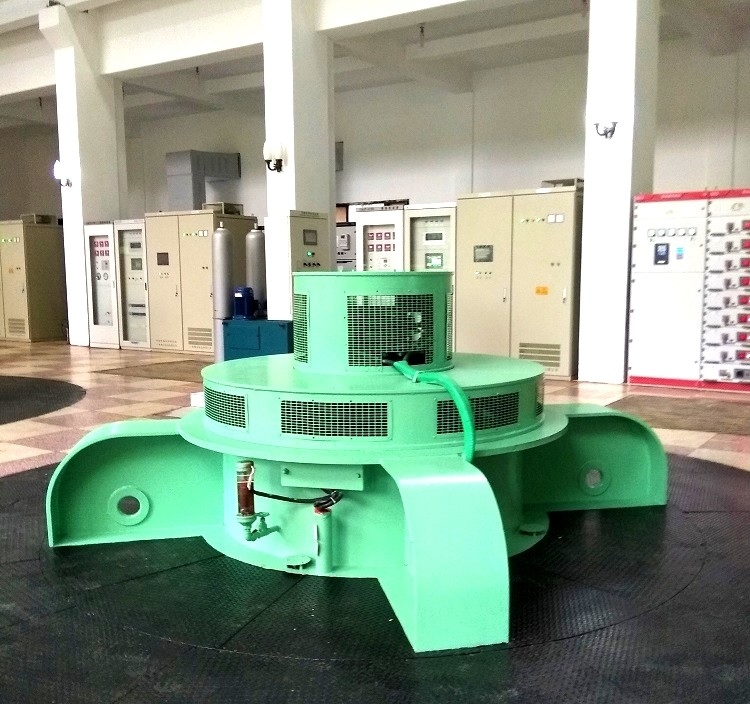

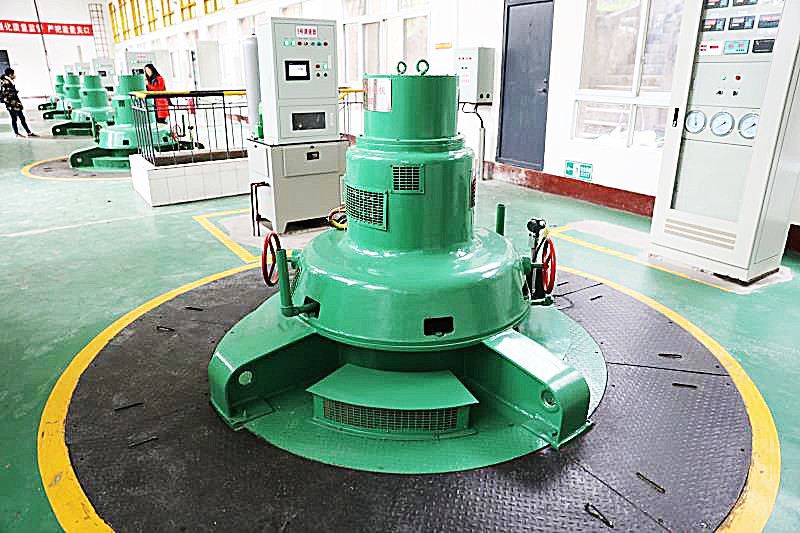

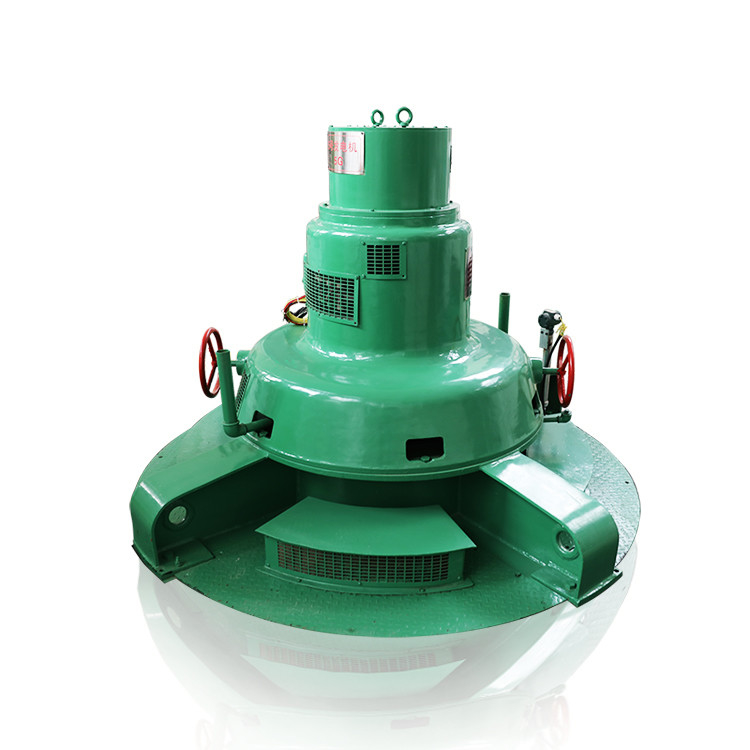

Customized 500kw 800kw 1000kw Small Kaplan Turbine Generator For Hydro Power Plant
Kaplan Turbine Generator

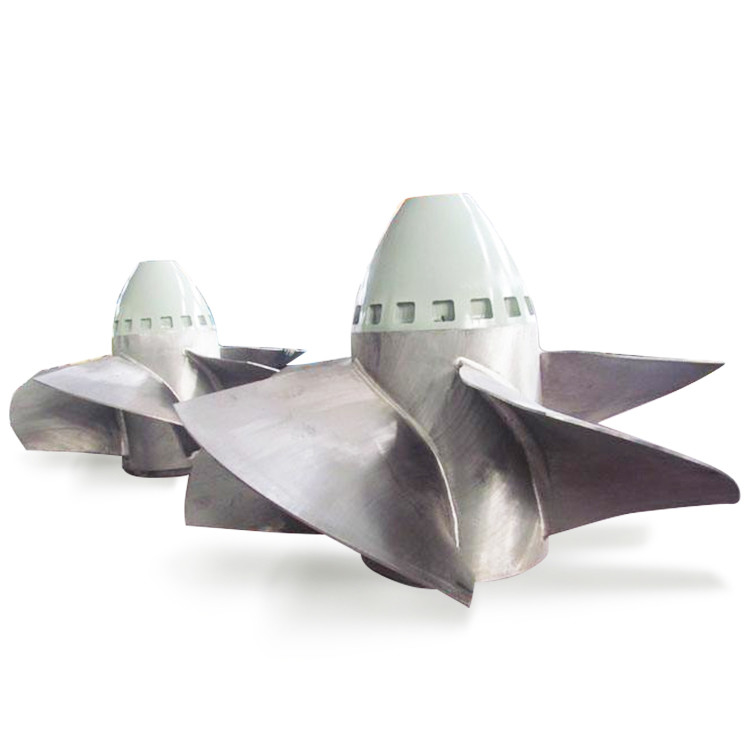

Kaplan turbines and propeller are reaction turbines of the axial flow type.The difference between the propeller and Kaplan turbines is the propeller turbine has fixed runner blades while the Kaplan turbine has adjustable runner blades.
| Water Head | 5m-60m |
| Runner Diameters | 0.5m-5m |
| Power Range | 100KW to 70MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel ZGOCr13Ni4Mo |
| Excitation | Brushless or Static excitation system |
| Generator Insulation | F/F |
| Lifespan | 30-50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co., Ltd. |
Product Details
Production Application
Other Hot Products
Pelton, Francis, Tubular, Kaplan
A Whole Power House
1. gates
2. penstocks
3. inlet valve
4. turine
5. generator
6. automation, control, protection
7. medium-voltage switchgear
8. power transformer
9. high-voltage switchgear
10. transmission line
About us
Deyang Dongsen Hydropower Equipment Co., Ltd (DSSD) is a comprehensive engineering company especially in Hydropower projects. Our brand is WOONERGY. The factory is Located in Deyang city which is one of the three major manufacturing bases in China.
DSSD gains great support from the "One Belt One Road" policy in this region. Having 20 years' experience in hydraulic turbine manufacturing and having passed the ISO 9001 standard, WOONERGY is professional on designing, manufacturing, installation, project investment and EPC.
The main products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine with capacity from 100 to 70,000KW.
The factory has professional engineers who can assemble the complete set of equipment effectively. We sell reliable products for more than 500 hydropower stations including manufacturing new hydraulic providing auxiliaries, install ing transmission lines, project designing, equipment upgrading and maintenance.
DSSD enjoys high reputation from our customers and partners.
Recently, the company has paid much attention to developing the projects on South Asia South-East Asia. South America and many other areas all around the world. With its central idea of providing good quality and high efficiency products, we hope to support more hydropower stations beyond China to make full use of water energy.And following the motto of "Customer, Quality and Reputation comes the first" and seeking mutual benefit, DSSD is pursuing its proficiency to be a top-class supplier.
