Place of Origin:
china,deyang
Brand Name:
DSSD
Certification:
iso,tuv,ce
Model Number:
Turgo Turbine generator
Contact Us

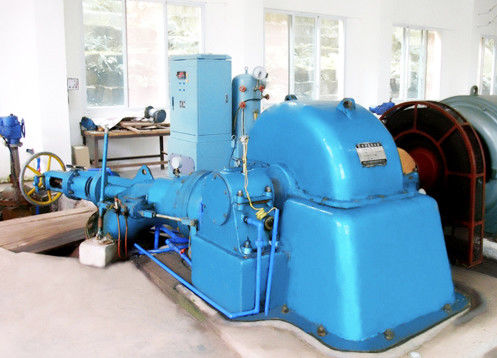

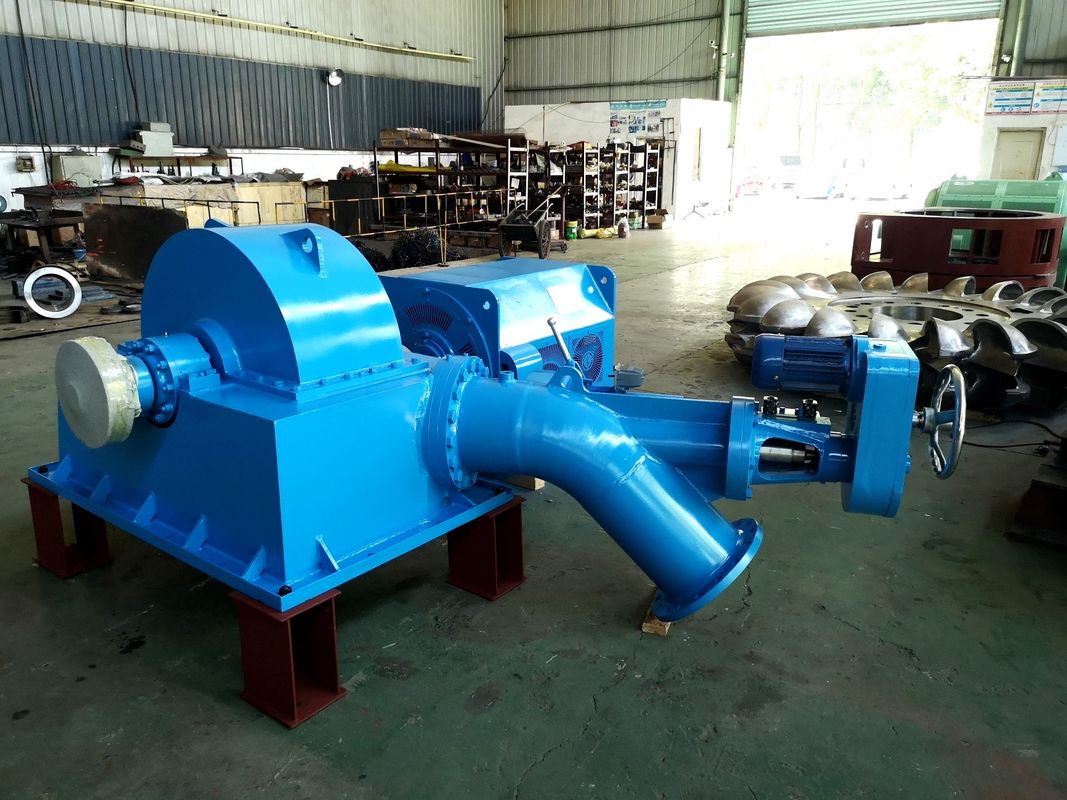

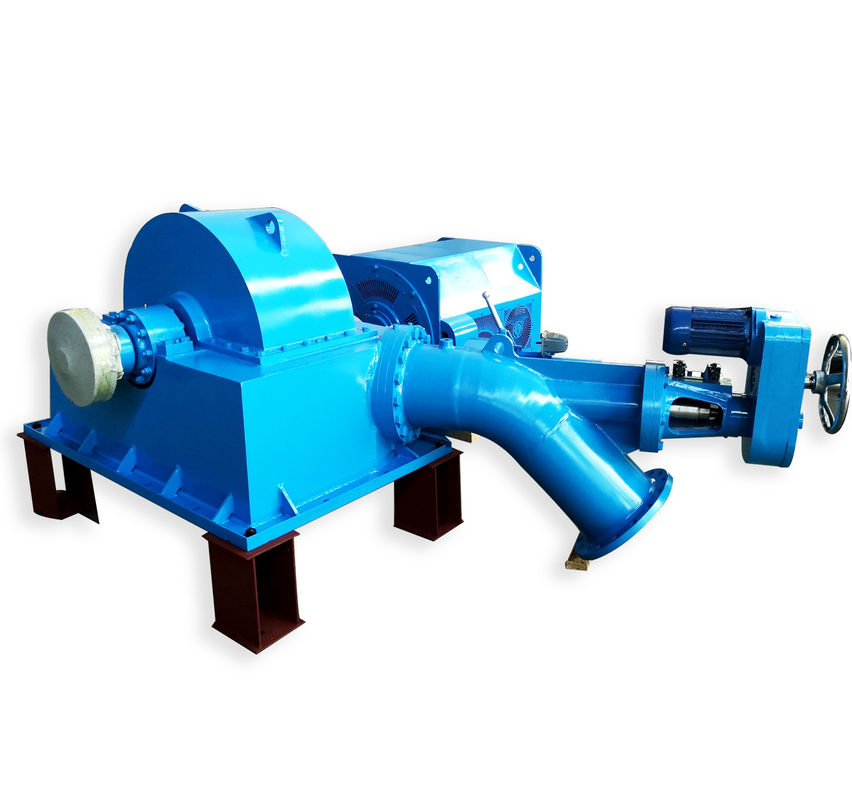

Small Turgo Turbine / Water Turbine For Hydro Power Project
Turgo turbine compared with tangential impulse or called pelton one has a lot of advantage such as higher specific speed,wide range of application as well as easy match directive driving generator,except wide range of application as well as easy match directive driving generator,except simple of construction, reliable operation,convenience in operation and maintenance etc.
Turgo or called inclined-jet impulse turbine is a kind of impulse turbine.Its nozzle make the angle of 22.5°with the rotating plane of the runner.Water come from reservoir or forebay enters the nozzle via a penstock and the intake pipe becomes high velocity jet,then the jet injects the vanes of runner. The water flow enters in the inlet of vane and go out of the vane and the turbine does a work.Its output drives a generator via shaft and a coupling.
Water Head |
25m-300m |
Runner Diameters |
0.45m-5m |
Power Range |
100KW to 20MW |
Frequency |
50HZ/60HZ |
Generator Voltage |
400V, 800V, 6300V, 10500V |
Layout pattern |
Horizontal or Vertical |
Material(blades) |
Stainless Steel ZG0Cr13Ni4Mo |
Excitation |
Brushless or Static excitation system |
Generator Insulation |
F/F |
Lifespan |
30~50 years |
Manufacturer |
Deyang Dongsen Hydropower Equipment Co., Ltd. |
Product Details
Company Information
Our company is an experienced manufacture and engineering Company in small scale hydro power equipment. We play the role of manufacture and EPC contractor and could supply water to wire equipments and services. As turbine manufacture more than 30 years experience.
We provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.
1.Water Turbine Generator Unit Design & SUPPLY
2.Hydropower equipment supply
3.Feasibility study of hydropower project
4.Manufacture
5.Installation & Supervision
6.Commissioning and Training service
7. Hydro power plant rehabilitant
8. Hydro power plant spares supply
9.Services
