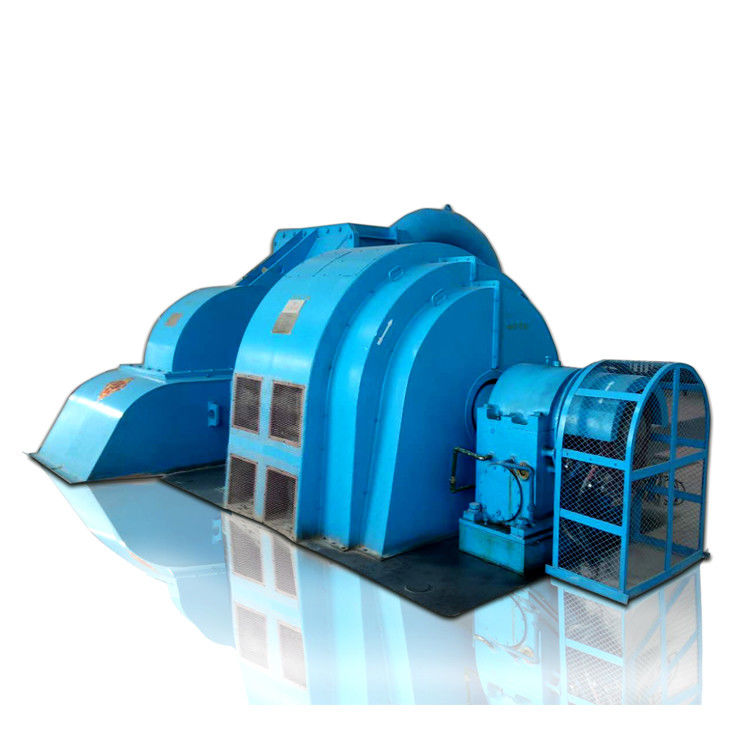

Water Energy Hydro Generators Mini Small Pelton Turbine Wheel 500Kw5000kw
Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement, nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.
Ø Suitable water head: 80-1000m;
Ø Output scope: 50Kw -20Mw;
Ø Runner diameter: 55cm -230cm;
Ø Runner material: cast or forged stainless steel;
Ø Arrangement type: Vertical and Horizontal;
Ø Nozzle numbers: 1-6;
1. Product Paramenters
|

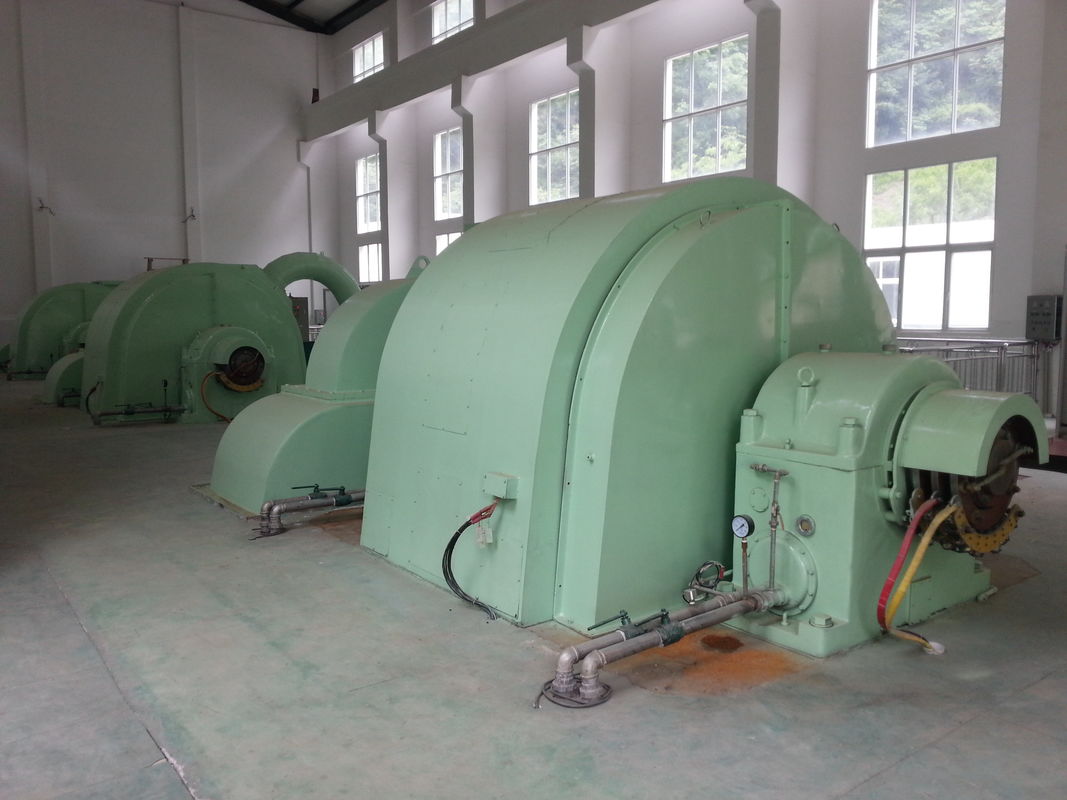

2. Application
Jasmine Tan
International Trade Manager
We have five main water turbine generator set categories:
Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine.
(We are able to provide a full set of professional services, such as all ancillary equipment of the hydro turbine project, installation and commissioning of the hydro turbine unit, capacity upgrading, etc.)
Each type of turbine generator set capacity could be 100~50000KW. we are china hydro turbine generator factory 30 years!
