Micro Francis Water Turbine Generator For EPC Project

Micro Francis Water Turbine Generator For EPC Project

Francis Water Turbine Generator

EPC Project Water Turbine Generator

Micro Francis Turbine Generator

Place of Origin:

china

Brand Name:

DSSD

Model Number:

francis turbine

Contact Us

Request A Quote
Product Details
Certification:
CE,iso
Material:
Stainless Steel
Product Name:
Francis Turbine For Sale Francis Turbina Generator Hydropower
Runner Material:
Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Rated Rotor Speed:
200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Speed Range:
150RPM-1000RPM
Name:
Francis Turbine
Color:
Blue, Green Or Customer's Requirements,Customized Color
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
6 months
Payment Terms
D/P, D/A, L/C, T/T
Supply Ability
1000SET
Product Description

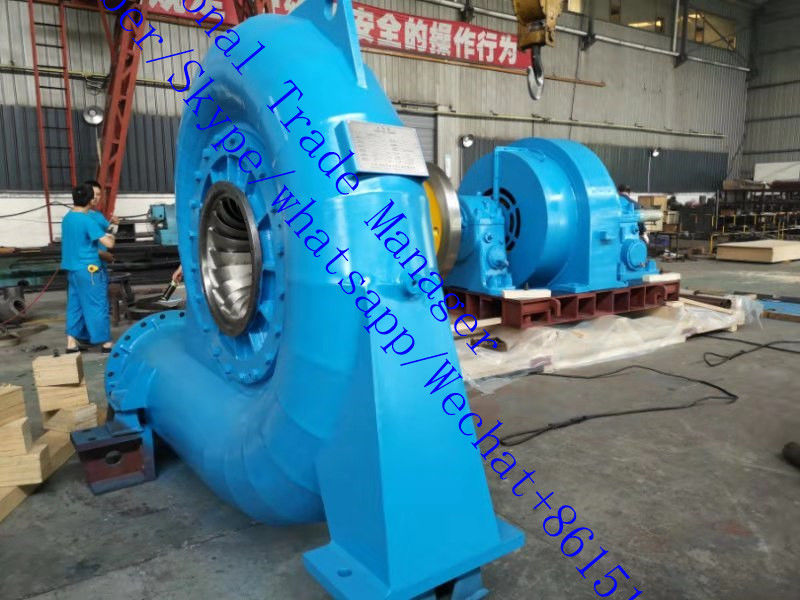

Micro Francis Water Turbine Generator For Hydro Power Plant EPC Project





1. Brief Introduction



Francis Turbine is widely used in hydropower plants with low, middle and high water head commonly ranging from 30m to 300m, The maximum water head can be 500m, The unit has advantages such as: compact structure and high efficiency.





2. Product Paramenters



Water Head 25m-300m
Runner Diameters 0.45m-5m
Power Range 100KW to 70MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.



3. Application



Micro Francis Water Turbine Generator For EPC Project 0



4. Our advantages



1) Provide complete proposal for hydro power plant from water to wire



2) Abundant foreign power plant project implementation experience



3) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase



5. FAQ



1) Payment terms

L/C, 30% T/T in advance. or T/T



2) Delivery period

Normally 6-8 months after confirmation of orders.



3) Package

We will use wooden box and plastic film to protect the products.
