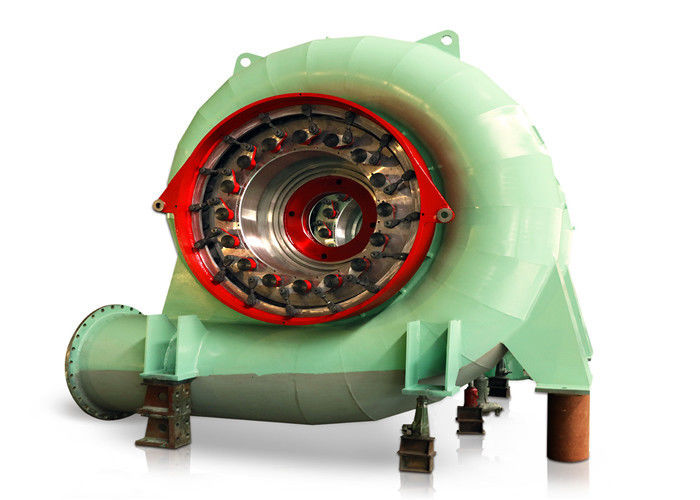

500kw Francis Water Turbine Runner For Hydropower Plant
1
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: DSSD
Certification: iso,tuv
Model Number: francis turbine
High Light:

Francis Water Turbine Runner

,

500kw Water Turbine Runner

,

300rpm Francis Turbine Generator

Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 6 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Specifications
Material: Stainless Steel
Runner Material: Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Speed Way: Butterfly Valve Control And Guide Vane Control
Speed Range: 150RPM-1000RPM
Color: Blue, Green Or Customer's Requirements,Customized Color
Type: Turbine Runner
Warranty: 1 Year
Frequency: 50Hz-60Hz
Product Description

500kw Francis Water Turbine Runner For Hydropower Plant





1. Brief Introduction



Francis Turbine, also called mixed flow turbine and variable pressure turbine,When the water flow through the turbine wheel, it enters to radial, axial flow. is widely used in hydropower plants with low, middle and high water head.It is applicable to the head from a range of 20 meters of up to 700 meters, has the advantages of simple structure, stable operation, and high efficiency, but it is generally used in the head in the range(50 to 400 meters).







2. Product Paramenters



Water Head 25m-300m
Runner Diameters 0.45m-5m
Power Range 100KW to 70MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.



3. Application



500kw Francis Water Turbine Runner For Hydropower Plant 0





4. Main Products



(1) Axial flow type turbine generators series.

(2) Turgo turbine generators series,e.g. vertical type horizontal type.

(3) Tubular turbine generators series ,e.g. Bulb type and shaft extension type.

(4) Francis turbine generators series.
