Durable Hydro Turbine/Generator Electric/Alternative Energy Generators
1. Brief Introduction

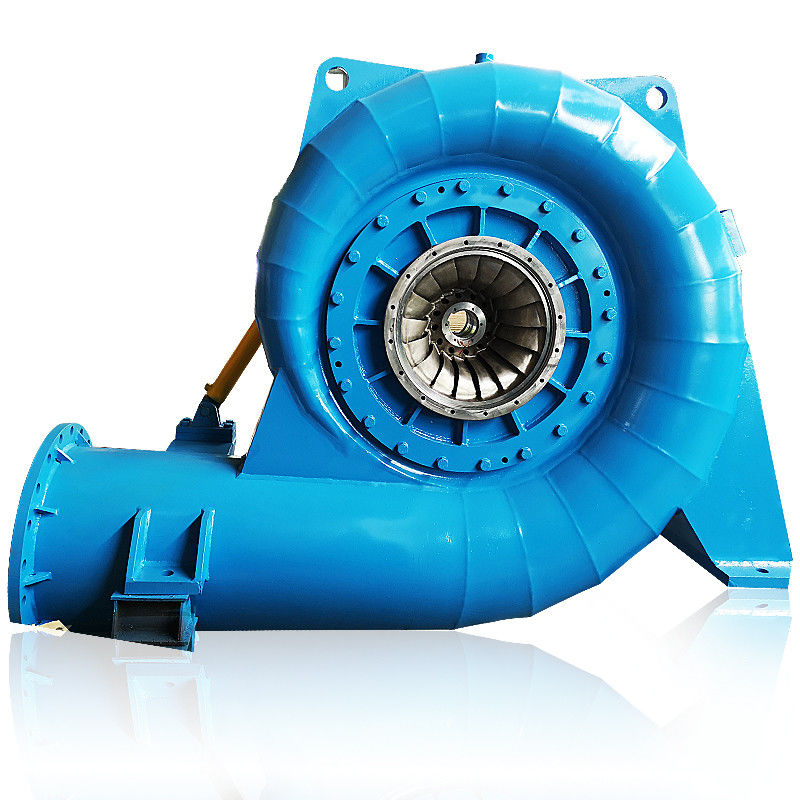

Francis Turbine, also called mixed flow turbine and variable pressure turbine, is widely used in hydropower plants with low, middle and high water head ranging from 25m onwards to 550m commonly 30 to 300m. It has advantages such as: working stable, structure compact. Most import of all, the Francis water turbine we made would work with high efficiency of about 92% to 94.5%.
2. Product Paramenters
|
Water Head |
25m-300m |
|
Runner Diameters |
0.45m-5m |
|
Power Range |
100KW to 70MW |
|
Frequency |
50HZ/60HZ |
|
Generator Voltage |
400V, 800V, 6300V, 10500V |
|
Layout pattern |
Horizontal or Vertical |
|
Material(blades) |
Stainless Steel ZG0Cr13Ni4Mo |
|
Excitation |
Brushless or Static excitation system |
|
Generator Insulation |
F/F |
|
Lifespan |
30~50 years |
|
Manufacturer |
Deyang Dongsen Hydropower Equipment Co., Ltd. |
3. Application
4. Our advantages
1) We have senior engineering and technical experts, professional hydro-generator design team and installation team
2) Provide complete proposal for hydro power plant from water to wire
3) Abundant foreign power plant project implementation experience
4) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase
5.Main Products
Our Main Products are Francis Turbine, Turgo Turbine, Pelton Turbine, Kaplan Turbine, Tubular Turbine and Hydro Generator.
