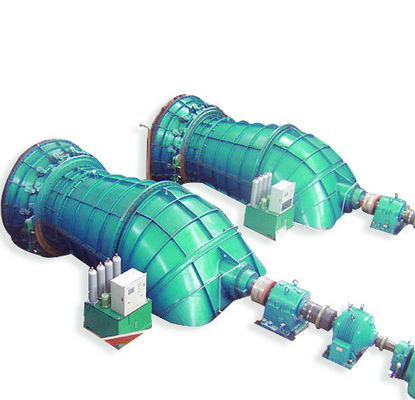

factory price water turbine electric generator/Tubular Turbine Generator/Alternative Energy Generators
1. Product Description
The tubular turbine is a new type of unit for the development of low-head hydraulic resources. It is suitable for 25m heads.The flow passage of this type of machine is linear, which is a kind of horizontal shaft turbine. The runner shape is similar to the axial flow, and there are also fixed and rotating blades. Because the water flow basically moves along the axial direction in the flow passage without turning, the water flow capacity and hydraulic efficiency of the unit are greatly improved.
2. Product Details
|
Name
|
Tubular Turbine Generator Set |
|
Description
|
100Kw 200Kw 500Kw Tubular Turbine Water Generator |
|
Flow
|
2.5m³/s |
|
Output
|
500Kw |
|
Warter Head |
3-30M |
|
Voltage
|
6300V |
|
Frequency
|
50Hz/60Hz |
|
Runner speed |
750rpm |
|
Insulation Level
|
F/F |
|
Application
|
Hydropower Plant |
|
Warranty
|
1 Year |
|
Life Span
|
30-50 Years |
|
Manufacturer
|
Deyang Dongsen Hydropower Equipment Co., Ltd. |
3. Project Application
This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.
We could supply Francis turbine, Pleton turbine, Kaplan turbine, Propeller turbine, Tubular turbine etc. as well as butterfly valves, gate valves, ball valves, and all kinds of electrical panels.
DSSD is an experience EPC supplier for hydropower plant and served for more than 500 hydropower plants and our engineers have more than 30 years' experience.
5.FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacturer supplied equipment for more than 500HPPs. The engineers have over 30 years' experiences. Our factory is in Deyang city, Sichuan, you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us and discuss the details.
2.What Kind of hydropower micro should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
4: What the packing of the equipment?
We will use wooden box or plastic film to protect the products.
