6 Nozzle 1300m Pelton Wheel Hydro Turbine Runner

6 Nozzle 1300m Pelton Wheel Hydro Turbine Runner

hydro runner

runner in hydro power plant

Place of Origin:

china

Brand Name:

DSSD

Certification:

iso,tuv

Model Number:

pelton runner

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Efficiency:
85%-93%
Runner Material:
Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Warranty:
1 Year
Rated Rotor Speed:
200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification:
CE CCC
Speed Range:
150RPM-1000RPM
Type:
Pelton Turbine Wheel
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
3 months
Payment Terms
D/P, D/A, L/C, T/T
Supply Ability
1000SET
Product Description

Pelton Wheel Water Turbines/Hydro Turbine Runner/Water Powered Generator







1,Product Paramenters



Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement, nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow.



Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.



Water Head 50m - 1300m
Power range 50KW-20MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Runner diameters 0.35m-4m
Layout pattern Horizontal or Vertical
Material Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Lifespan 50 years
Nozzle numbers 1-6





2,Product display

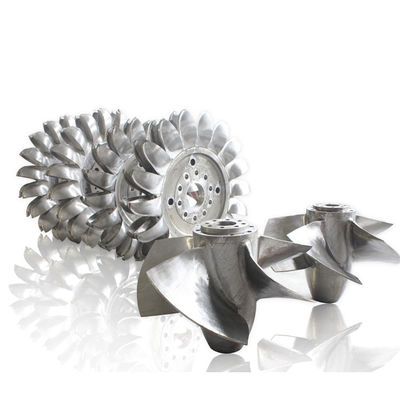

6 Nozzle 1300m Pelton Wheel Hydro Turbine Runner 06 Nozzle 1300m Pelton Wheel Hydro Turbine Runner 16 Nozzle 1300m Pelton Wheel Hydro Turbine Runner 2





3,About DSSD





    Deyang Dongsen Hydropower Equipment Co., Ltd. is located in Deyang City, Sichuan province, China, and established in 2 0 0 7.

    Deyang is one of the three major manufacturing bases in China. It offers strong support of resource allocation for us. Dongsen is a professional comprehensive engineering company, especially in hydropower projects fileds. Our main business is designing and manufacturing hydraulic turbine generator sets as well as E P C for hydro-power stations, providing new hydro equipment, auxiliaries, installing transmission lines, designing projects, upgrading capacity, maintaining equipment and investing hydropower stations. Our products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine generator sets with capacity from 1 0 0 kilowatt to 5 0, 0 0 0 kilowatt.

    Dongsen's technical team has 2 0 years experience in hydropower equipment, and we have 4 development staffs and 37 skillful technicians. Dongsen has strong technical competence, modern production capacity, scientific management. We passed I S O 9 0 0 1: 2 0 0 8 quality system certification.

    Dongsen has already provided reliable products and excellent services for more than 5 0 0 hydropower stations. Our motto is Customer, Quality and Reputation is the first. We acquired high reputation from customers and cooperators. Today, The One Belt One Road policy provides us more opportunities to do business all over the world. Dongsen is pursuing to be a top-class hydropower equipment supplier. Dongsen sincerely welcome you to visit our factory and be our cooperator.
