Hydro Powered Tubular Water Turbine

Hydro Powered Tubular Water Turbine
Features Gallery Product Description Request A Quote
Color: Custom Color
Product Name: Tubular Turbina Generator
Efficiency: 85%-93%
Runner Material: Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Oem: Yes
Rated Rotor Speed: 200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification: CE
Speed Range: 150RPM-1000RPM
High Light:

micro hydroelectric turbine


water powered turbine


Hydro Powered Tubular Water Turbine

Basic Infomation
Place of Origin: china,deyang
Brand Name: DSSD
Certification: iso,tuv,sgs
Model Number: Tubular turbine generator
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 5-8 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 500 SET
Product Description


hydro powered tubular water turbine and generator for low water head hydro power plant


Hydro Powered Tubular Water Turbine And Generator For Low Water Head Hydro Power Plant



1. Product Description

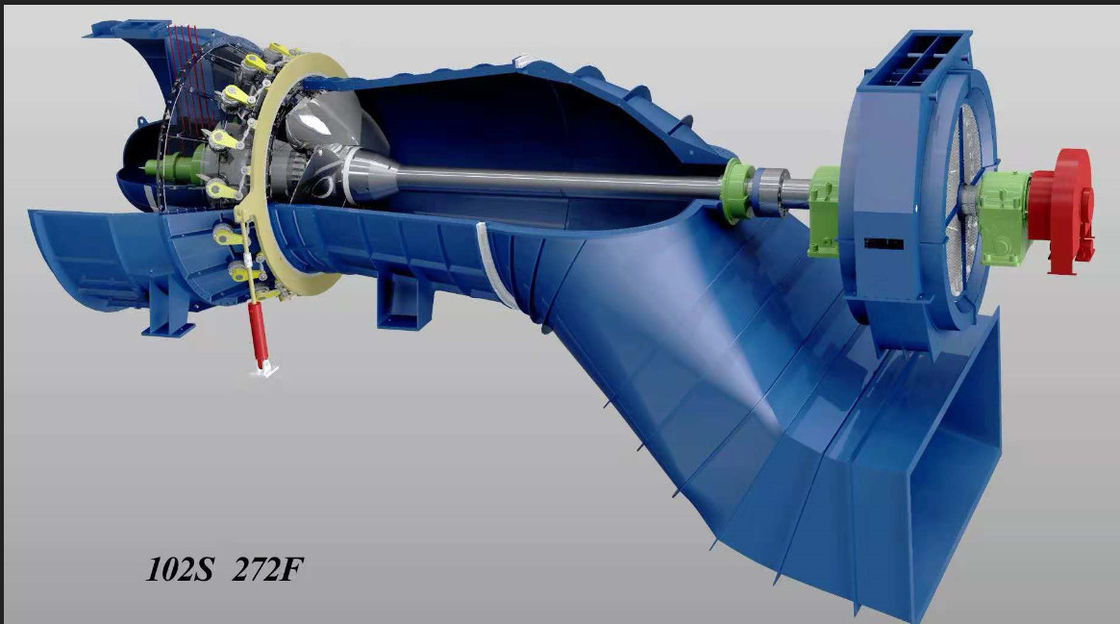

Tubular Water Turbine:

tubular turbine is a new hi-tech product. It is well suitable for hydropower plants with water head ranging from 5 m to 20 m and unit capacity below 15MW. It has the following particular advantages: Its efficiency is higher than shaft-extension type tubular units and axial flow units; its cost is lower than axial flow units and bulb tubular units, and it is convenient to operate and maintain. tubular turbine is divided into fixed blade type and moveable blade type.


Hydro Powered Tubular Water Turbine 0Hydro Powered Tubular Water Turbine 1



2. Product Details



Water Head 5m-20m
Runner Diameters
According to the design
Power Range
100KW to 70MW
Generator Voltage
400V, 800V, 6300V, 10500V
Layout pattern
Horizontal or Vertical
Stainless Steel ZG0Cr13Ni4Mo
Brushless or Static excitation system
Generator Insulation
30~50 years
Deyang Dongsen Hydropower Equipment Co., Ltd.


Hydro Powered Tubular Water Turbine 2Hydro Powered Tubular Water Turbine 3



1: What Kind of water turbine should I choose?

Please tell me the water head,water flow,frequency and output power,we will provice a solution.


2: Can we offer you all equipment for hydro power plant?

Yes, We can offer you water turbine, hydro turbine generator, pressure governor, turbine wheel, control screenand so on.


3: Can you do the EPC for the hydro power plant?

Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.


4: what the packing of the equipment?

We will use wooden box to protect product
