Name: 70MW River Turbine Generator
Brand: DSSD
SKU: Turbine Water Generator
Rating: 4.7 (138 reviews)

Home > products > Turbine Spare Parts >

70MW River Turbine Generator

water turbine parts

hydro turbine parts

Place of Origin:

china

Brand Name:

DSSD

Certification:

iso,tuv

Model Number:

Turbine Water Generator

Request A Quote

Product Details

Material:

Stainless Steel

Efficiency:

85%-93%

Runner Material:

Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron

Oem:

Yes

Rated Rotor Speed:

200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm

Color:

Green Or Blue,Customized Color

Speed Range:

150RPM-1000RPM

Type:

Generator/hydro Generator

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Wooden packing

Delivery Time

3 months

Payment Terms

D/P, D/A, L/C, T/T

Supply Ability

1000SET

Main Valve Flange And Wafer Switch Type Electronic Butterfly Valve Or By Pass Valve Turbine Spare Parts

Get Best Price

Water Brake System Turbine Spare Parts Electricity Automation Equipment

Get Best Price

Normally Open / Closed Type Snip Pin Signaler Micro Machining

Get Best Price

Industrial Automatic Water Filter Plant CNC Machining For Power Station

Get Best Price

008618990234753

tanjasmine551@gmail.com

00-86-2443007

Contact Now

Product Description

Alternative Energy Generators/Water Powered Generator/River Turbine Generator

Product Paramenters

Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type
Components including stator, rotor,base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 100Kw to 70Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.

Material	Steel plate/Copper
Shaft type	Vertical/Horizontal
Power range	50KW-70MW
Speed range	150RPM-1000RPM
Voltage range	400V-10KV
Frequency	50HZ/60HZ
Efficiency	92%-96%
Generator current	200A-920A
Excitation method	Brushless/Thyristor
Application	On-grid/Off-grid

Hydroelectric generator consists of the following main parts. Dynamos generate pulsing direct current through the use of a commutator. Alternators generate alternating current. Mechanically a generator consists of a rotating part and a stationary part.

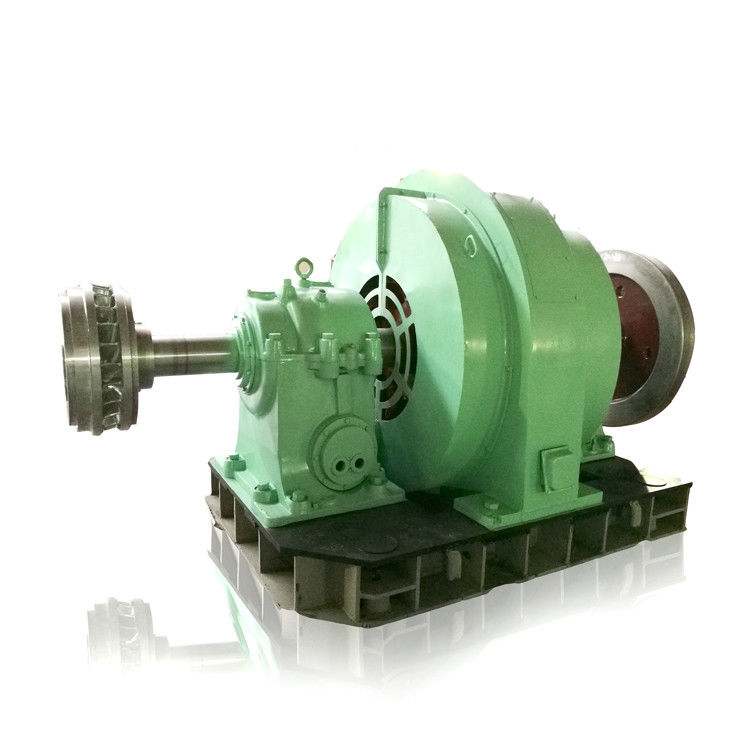

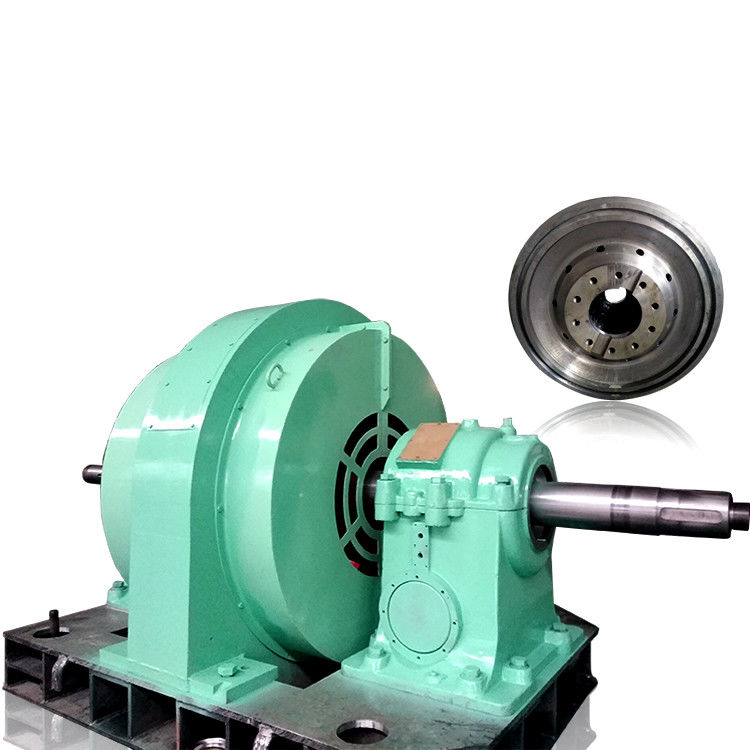

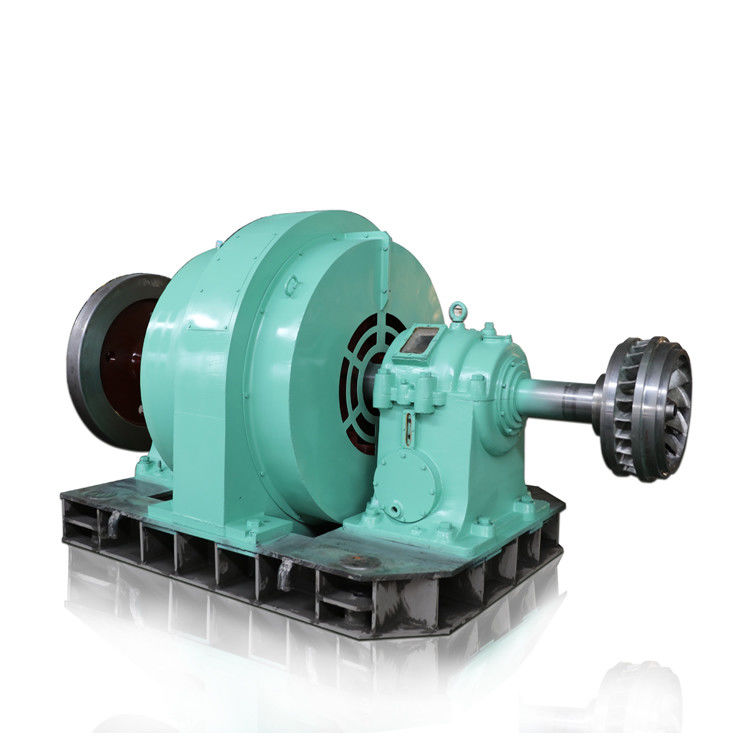

70MW River Turbine Generator 0 70MW River Turbine Generator 1 70MW River Turbine Generator 2

About us

Deyang Dongsen Hydropower Equipment Co., Ltd. is located in Deyang City, Sichuan province, China, and established in 2 0 0 7. Deyang is one of the three major manufacturing bases in China. It offers strong support of resource allocation for us. Dongsen is a professional comprehensive engineering company, especially in hydropower projects fileds. Our main business is designing and manufacturing hydraulic turbine generator sets as well as E P C for hydro-power stations, providing new hydro equipment, auxiliaries, installing transmission lines, designing projects, upgrading capacity, maintaining equipment and investing hydropower stations. Our products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine generator sets with capacity from 1 0 0 kilowatt to 5 0, 0 0 0 kilowatt. Dongsen's technical team has 2 0 years experience in hydropower equipment, and we have 4 development staffs and 37 skillful technicians. Dongsen has strong technical competence, modern production capacity, scientific management. We passed I S O 9 0 0 1: 2 0 0 8 quality system certification. Dongsen has already provided reliable products and excellent services for more than 5 0 0 hydropower stations. Our motto is Customer, Quality and Reputation is the first. We acquired high reputation from customers and cooperators. Today, The One Belt One Road policy provides us more opportunities to do business all over the world. Dongsen is pursuing to be a top-class hydropower equipment supplier.

'Dongsen sincerely welcome you to visit our factory and be our cooperator.

Our Advantages

1.DSSD has senior engineering and technical experts, professional hydro-generator design team and installation team

2.Provide complete proposal for hydro power plant from water to wire

3.Abundant foreign power plant project implementation experience

4.Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase

5.More than 20years of industry experience, install commissioning more than 100 equipment each year

6.Power generation equipment has been provided for more than 500 power stations at home and abroad
