Customized Oil Immersed Type Power Transformer For Hydor Power Plant

1
MOQ
Negotiation
Price

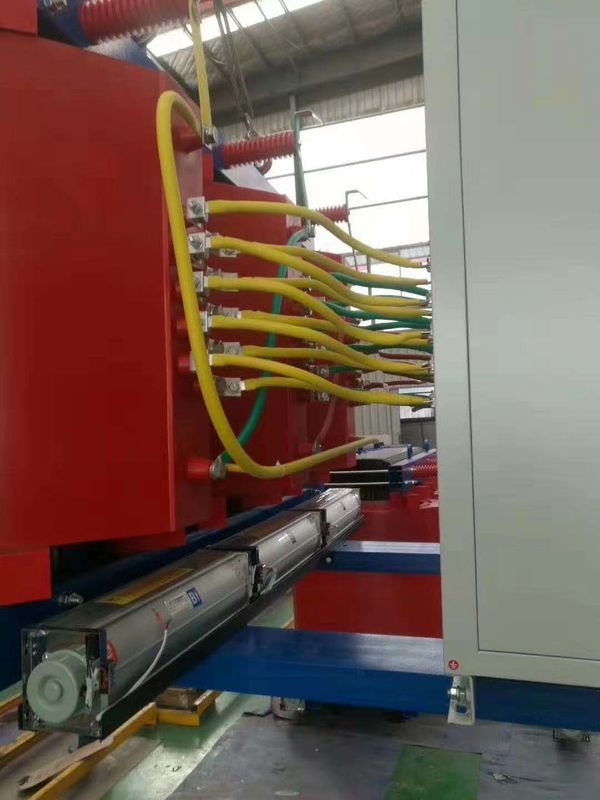

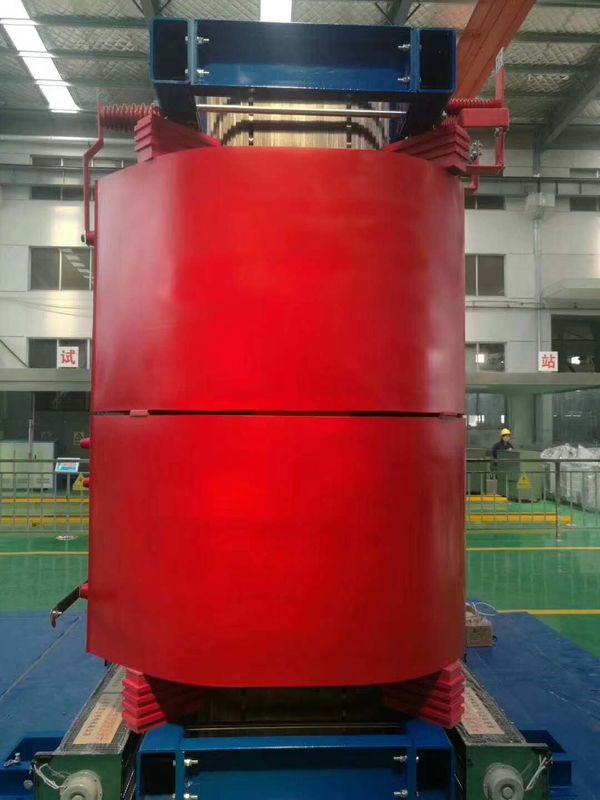

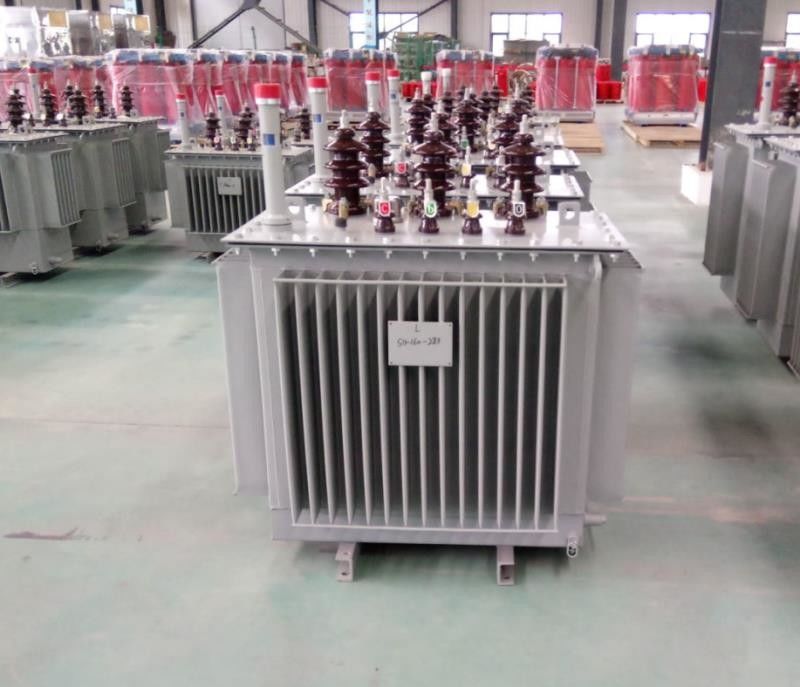

Customized Oil Immersed Type Power Transformer For Hydor Power Plant
Features Gallery Product Description Request A Quote
Features
Specifications
Efficiency: 91%-93%
Rated Rotor Speed: 750rpm 1000rpm
Certification: CE,sgs,iso
Speed Range: 350RPM-1000RPM
Micro Machining Or Not: Micro Machining
Material Capabilities: Stainless Steel,Hardened Metals
Process: Cnc Machining,Cnc Machining+deburrs,CNC Milling&turning Machine,turning
Color: As Per Customer's Requirements
Tolerance: +-0.02mm
Material: Copper
Product Name: High Quality CNC Milling/Machining/Stamping Spare Parts,OEM Parts
Size: Customer's Requst,Customized Drawings Are Accepted,Customized Size,standard
Packing: Pallet,Carton,Wooden Case
Warranty: 1 Year,NA
High Light:

water turbine parts

,

water generator parts
Basic Infomation
Place of Origin: china.sichuan
Brand Name: DSSD
Certification: iso,tuv
Model Number: Customized Oil Immersed Power Transformer Hydor Power Plant
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 3 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Product Description

Customized Oil Immersed Power Transformer Hydor Power Plant





skills requirement:









(kVA)

Rated capacity

 Voltage combination and range of tapping Vector group

(KW)

No-load loss

(KW)

load loss

(%)

No load current

(%)

Short circuit impedance

(kV)

High voltage

 Range of tapping

(kV)

Low voltage
630 35 ±2×2.5%±5

3.15

6.3

10.5

 Yd11 0.830 7.86 0.65 6.5
800 0.980 9.40 0.65
1000 1.15 11.5 0.65
1250 1.40 13.9 0.55
1600 1.69 16.6 0.45
2000 2.17 18.3 0.45
2500 2.56 19.6 0.45
3150 35-38.5 ±2×2.5%±5

3.15

6.3

10.5

 3.04 23.0 0.45 7.0
4000 3.61 27.3 0.45
5000 4.32 31.3 0.45
6300 5.24 35.0 0.45 8.0
8000 35-38.5 ±2×2.5%±5

3.15

3.3

6.3

6.6

10.5

 YNd11 7.20 38.4 0.35
10000 8.70 45.3 0.35
12500 10.0 53.8 0.30
16000 12.1 65.8 0.30
20000 14.4 79.5 0.30
25000 17.0 94.0 0.25 10.0
31500 20.2 112 0.25







Customized Oil Immersed Type Power Transformer For Hydor Power Plant 0
