high quality widely used customized turbine winch

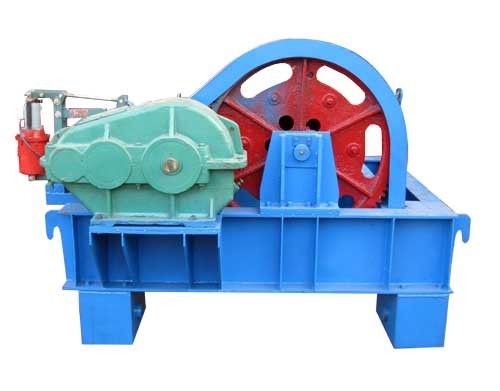

High Quality Widely Used Customized Turbine Winch
• Drum & drum shaft:
The drum diameter not less than 19 times of the wire rope diameter.The drum wall can withstand the wrapped tight force of wire rope; the side can withstand the lateral force produced by wire rope.The distance between drum side plate peripheral to the outermost roll rope not less than twice of the wire rope diameter.
Reducer is mainly composed of transmission parts, shaft, bearing, box and its accessories.The function of reducer is to match speed and transfer torque between motor and working machine or actuator.Hydraulic pusherThe hydraulic pusher is power source of brake. The abnormal use will lead to the brake fail to work.
• Electrical equipment:
Electric systems are Siemens brand Schneider brand or CHINT brand---Best in China. Include Overload protection system, Shock protection system, Low voltage protect function system, Explosion-proof system system. Has a good safety performance.
1. What material will be lifted you use the winch?
2. the voltage is V HZ 3 phase.
A. 220V/50HZ B.380v C.415V or as your require
3. the speed is m/min
A. 10m/min B.11m/min C.5m/min
4. the rope capacity is m
A. 100 B.150 C.200 D.300
