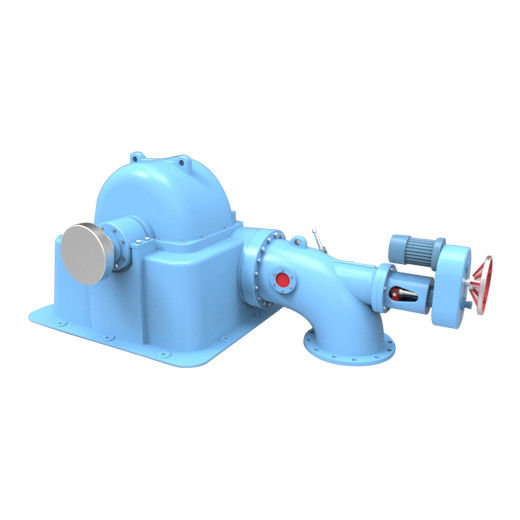

Impulse Turgo Turbine Generator Hydro Power Plant Turbine 15m-400m Water Head

Turbin Water Generators/Turgo Turbine Generator/Turgo Turbine Generator for Mini Hydro

PRODUCT DESCRIPTION



Turgo Water Turbine is widely used in hydro power plants .The Turgo turbine is an impulse water turbine designed for medium head applications. It is a modification of Pelton wheel where the runnner is a cast wheel whose shape generallly resembes a fian blade that is closed on the outer edges. Operational Turgo turbines achieve efficiencies of about 87%. In factory and lad tests, Turgo turbines perform with efficiencies of up to 90%. It works with net heads between 15 and 300m.











PRODUCT DETAILS

---

Water Head	15m-400m
Runner Diameters	0.45m-5m
Power Range	100KW to 70MW
Frequency	50HZ/60HZ
Generator Voltage	400V, 800V, 6300V, 10500V
Layout pattern	Horizontal or Vertical
Material(blades)	Stainless Steel ZG0Cr13Ni4Mo
Excitation	Brushless or Static excitation system
Generator Insulation	F/F
Lifespan	30~50 years
Manufacturer	Deyang Dongsen Hydropower Equipment Co., Ltd.

Deyang Dongsen Hydropower Equipment Co., Ltd. is located in Deyang City, Sichuan province, China, and established in 2 0 07.Deyang is one of the three major manufacturing bases in China. It offers strong support of resource allocation for us. Dongsen is a professional comprehensive engineering company, especially in hydropower projects fileds. Our main business is designing and manufacturing hydraulic turbine generator sets as well as E P C for hydro-power stations, providing new hydro equipment, auxiliaries, installing transmission lines, designing projects, upgrading capacity, maintaining equipment and investing hydropower stations. Our products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine generator sets with capacity from 1 0 0 kilowatt to 5 0, 0 0 0 kilowatt. Dongsen's technical team has 2 0 years experience in hydropower equipment,
and we have 4 development staffs and 37 skillful technicians. Dongsen has strong technical competence, modern production capacity, scientific management. We passed I S O 9 0 0 1: 2 0 0 8 quality system certification. Dongsen has already provided reliable products and excellent services for more than 5 0 0 hydropower stations. Our motto is Customer, Quality and Reputation is the first. We acquired high reputation from customers and cooperators. Today, The One Belt One Road policy provides us more opportunities to do business all over the world. Dongsen is pursuing to be a top-class hydropower equipment supplier. Dongsen sincerely welcome you to visit our factory and be our cooperator.
