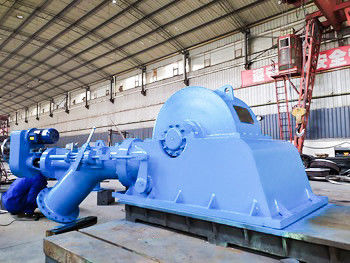

High Efficiency 100kw Turgo Water Turbine For Medium Head Applications

High Efficiency 100kw Turgo Water Turbine For Medium Head Applications

turgo water turbine

turgo hydro generator

Place of Origin:

china

Brand Name:

DSSD

Certification:

iso,tuv

Model Number:

kaplan turbine

Contact Us

Request A Quote
Product Details
Efficiency:
85%-93%
Runner Material:
Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Certification:
CE
Warranty:
1 Year
Product Name:
Water Turbine,Hydro Power Generator Stator And Rotor,river Dam Small Hydro Pelton Wheel Hydro Turbine,Hydro Turbine Type Equipment Water Turbine And Generator,Pelton Water Turbina Wheel With Nozzles And Pelton Generator For Sale
Color:
Green Or Customer's Requirements,Customized Color
Rated Voltage:
400V 800V 6300V 10500V
Electricity Generator Type:
Hydro Power
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
6 months
Payment Terms
D/P, D/A, L/C, T/T
Supply Ability
1000SET
Product Description

Small Hydro Turbine/Turgo Turbine/Portable Water Power Generator





1. Brief Introduction



The Turgo turbine is an impulse water turbine designed for medium head applications. It is a modification of Pelton wheel where the runner is a cast wheel whose shape generally resembles a fan blade that is closed on the outer edges. Operational Turgo turbines achieve efficiencies of about 87%. In factory and load tests, Turgo turbines perform with efficiencies of up to 90%. It works with net head between 15m and 300m.



2. Product Paramenters



Water Head 15m-300m
Runner Diameters 0.3m-1m
Power Range 100KW to 70MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.



3.Application



High Efficiency 100kw Turgo Water Turbine For Medium Head Applications 0





4. Our advantages



1) Provide complete proposal for hydro power plant from water to wire



2) Abundant foreign power plant project implementation experience



3) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase



4) More than 20years of industry experience, install commissioning more than 100 equipment each year



5. FAQ



1) Payment terms

L/C, 30% T/T in advance.



2) Delivery period

Normally 6 months after confirmation of orders.



3) Package

We will use wooden box and plastic film to protect the products.



4) What Kind of hydroelectric generator should I choose?

Hydro turbine is a customized product, please let us know the details as follows, then we can provide the correct price for you.

1. Unit Capacity: ___KW

2. Water head:___M

3. Water flow:____M3/s

4. Frequency: 50HZ or 60HZ
