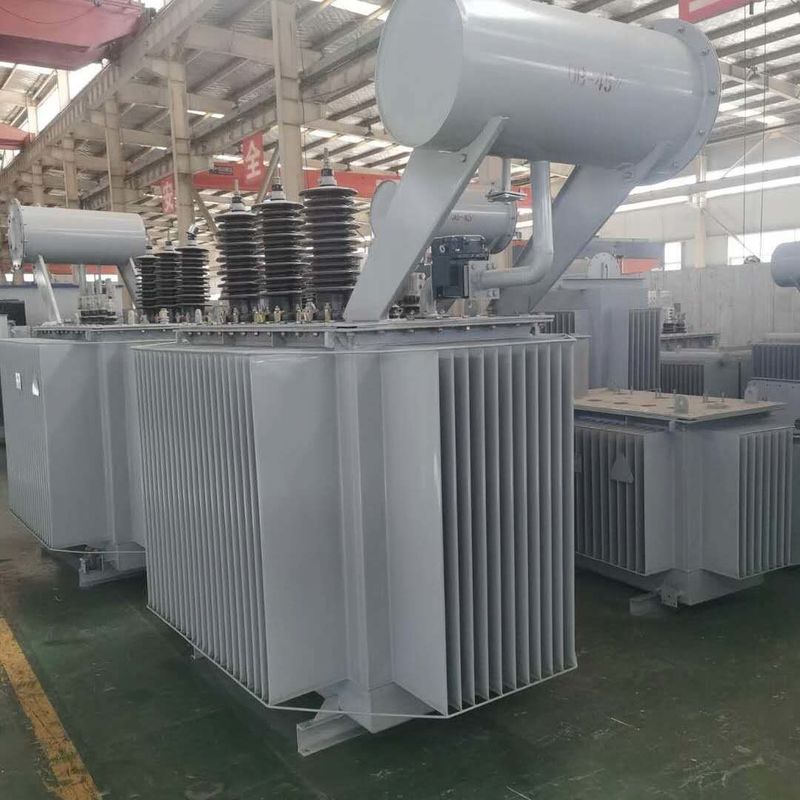

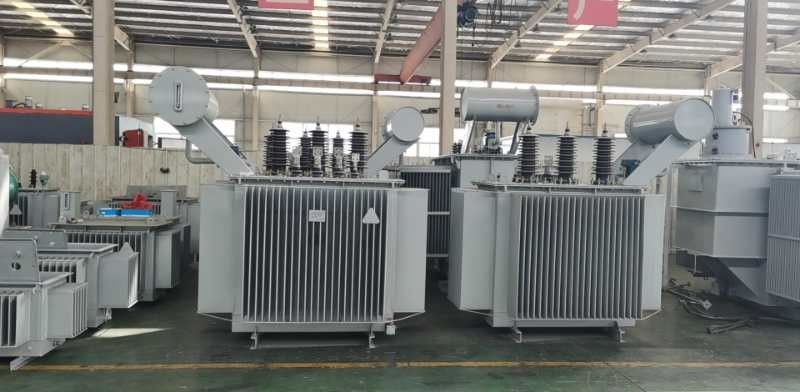

Advanced 22kv Power Distribution Transformer Oil Immersed Type 400 Kva

Advanced 22kv Power Distribution Transformer Oil Immersed Type 400 Kva

oil immersed type transformer

power and distribution transformer

Place of Origin:

china

Brand Name:

DSSD

Model Number:

Transformer

Contact Us

Request A Quote
Product Details
Certification:
CE
Color:
Design According To Customer's Requirements,Customized Color
Voltage:
400V/50-60hz Optional,220/380v,10.5KV Or 13.8KV Etc.
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
1250USD-5000USD
Packaging Details
Wooden packing
Delivery Time
1 Month
Payment Terms
D/A, L/C, D/P, T/T
Supply Ability
1000SET
Product Description

Advanced Level Distribution 22kv Oil Power Transformer 400 Kva





1. Introduction

The performances of model S9-M, S10-M, S11-M 22kv series full-sealed oil-immersed distribution transformes conform to Standards IEC. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its coil is made of quality oxygen-free copper. It adopts radiator oil tank of corrugated shteet type or expansion type. As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air, the oil ageing is retarded, thus prolonging the service life of transformer.



2. Paramenters



Main Technical Parameters for 22KV level S9-M/S10-M/S11- M Series three-phase full-sealed non-excitaiton-tap-changing distribbution transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(W) On-load loss(W) No load
current
(%)
S9 S10 S11 S9 S10 S11
30 22 ±5%
±2x2.5%
0.4 Dyn11
Yyn0
4 130 110 100 600 600 600 2.1
50 170 150 130 870 870 870 2
63 200 180 150 1040 1040 1040 1.9
80 250 200 180 1250 1250 1250 1.8
100 290 230 200 1500 1500 1500 1.6
125 340 270 240 1800 1800 1800 1.5
160 400 310 280 2200 2200 2200 1.4
200 480 380 340 2600 2600 2600 1.2
250 560 460 400 3050 3050 3050 1.2
315 670 540 480 3650 3650 3650 1.1
400 800 650 570 4300 4300 4300 1
500 960 780 680 5150 5150 5150 1
630 4.5 1200 920 810 6200 6200 6200 0.9
800 1400 1120 980 7500 7500 7500 0.8
1000 1700 1320 1150 10300 10300 10300 0.7
1250 1950 1560 1360 12000 12000 12000 0.6
1600 2400 1880 1640 14500 14500 14500 0.6
2000 5 2830 2270 1940 17140 17140 17140 0.6
2500 3350 2690 2300 20260 20260 20260 0.5



3. Packaging&Shipping



Packaging: Wooden case, container or according to client's requirements



Shipping: Land transportation and Ocean transportation
