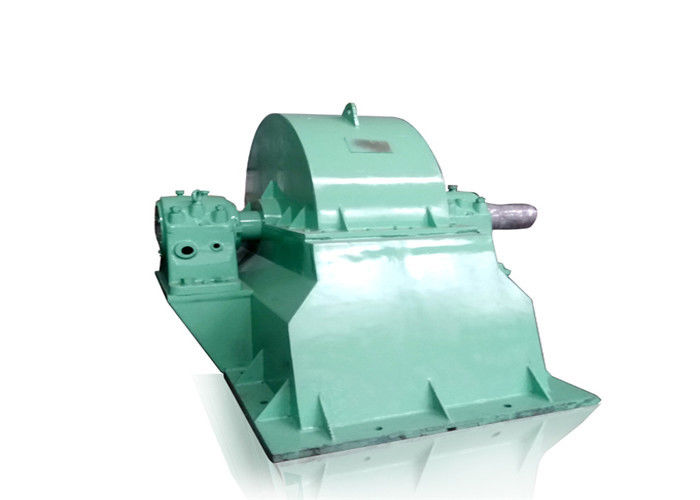

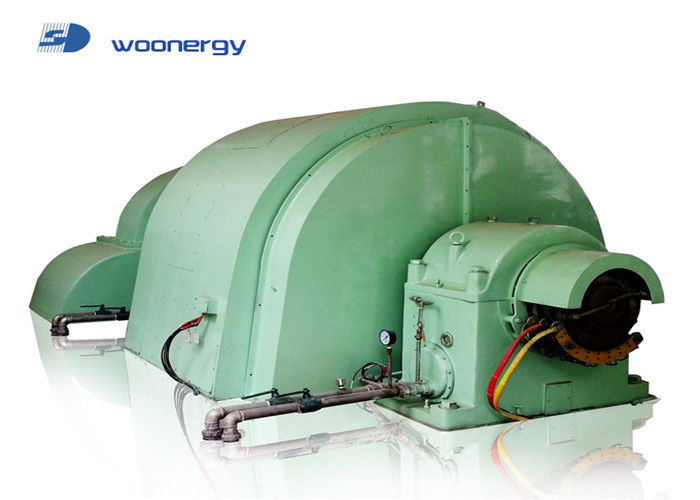

Hydroelectric Generators/Pelton Turbine Generator/Mini Hydro Power Plant
1. Brief Introduction

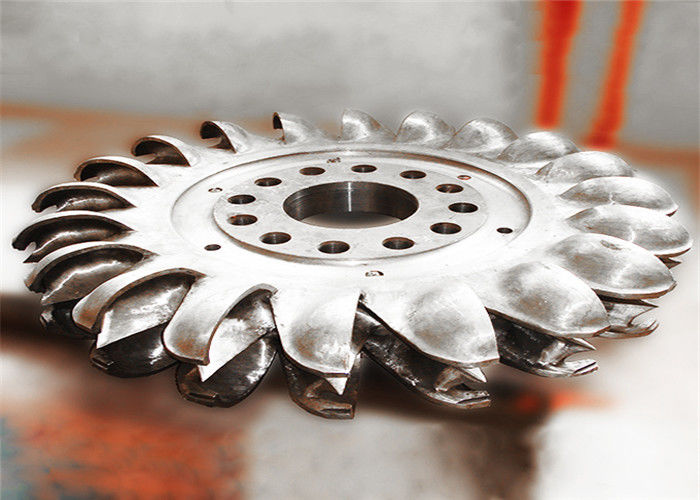

Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement,nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement.
2. Product Paramenters
| Runner range | 45cm-180cm |
| Speed range | 150RPM-1000RPM |
| Efficiency | 85%-93% |
| Description | 100kw-70mw Low Price Pelton Turbine |
| Water head | 90m-600m |
| Nozzle number | Single/Multiple |
| Power range | 100kw-70mw |
| Frequency | 50Hz/60Hz |
| Generator Voltage | 400v,800v,6300v,10500v |
| Layout pattern | Horizontal or Vertical |
| Material | Stainless Steel |
| Excitation | Brushless or Static Excitation System |
| Generator Insulation | F/F |
| Lifespan | 30~50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co.,Ltd |
3.Application
4. Our advantages
1) Provide complete proposal for hydro power plant from water to wire
2) Abundant foreign power plant project implementation experience
3) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase
5. FAQ
1) Payment terms
L/C, 30% T/T in advance.
2) Delivery period
Normally 6 months after confirmation of orders.
3) Package
We will use wooden box and plastic film to protect the products.
4) What Kind of hydroelectric generator should I choose?
This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.
Please can you send me below parameters, so our engineers could support your project?
Where is the plant? How many kw each unit? How many units?
1. Design head: ___m
2. Design flow: ___m³/s
3. Frequency: 50Hz or 60Hz
4. M.a.s.l: ___m
5. Power factor COSφ:
6. Generator output voltage: __V
7. On-grid or Off-grid type? (On-grid type voltage: ____Kv)
8. Basic situation about the project and your company introduction.
