200kw-10mw Francis Water Turbine Generator / Off Grid Hydro Generator

200kw-10mw Francis Water Turbine Generator / Off Grid Hydro Generator

hydropower turbine

hydro power generator water turbine

Place of Origin:

china.deyang city

Brand Name:

DSSD

Certification:

iso,tuv,ce Certification

Model Number:

francis turbine

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Product Name:
Francis Turbine For Sale Francis Turbina Generator Hydropower
Efficiency:
85%-93%
Oem:
Yes
Certification:
CE,TUV ,ISO Certification
Color:
Blue, Green Or Customer's Requirements,Customized Color
Warranty:
3months-1 Year
Power Range:
300kw~10mw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
6 months
Payment Terms
D/P, D/A, L/C, T/T
Supply Ability
1000SET
Product Description

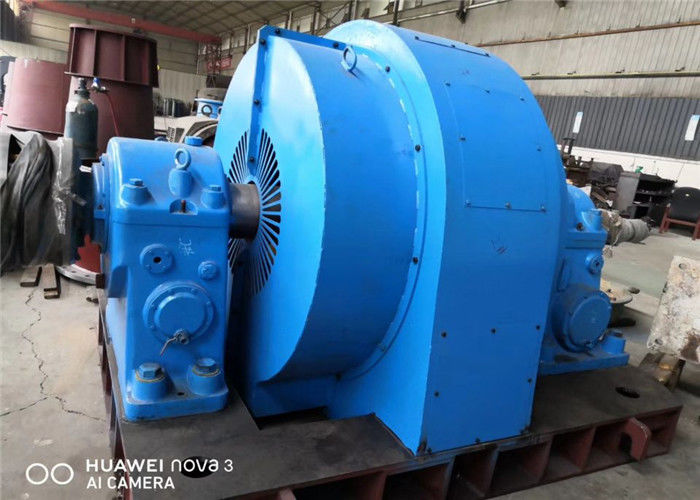

Francis Water Turbine Generator/Off Grid Hydro Power



1. Brief Introduction



Francis Turbine, also called mixed flow turbine and variable pressure turbine, is widely used in hydropower plants with low, middle and high water head ranging from 25m onwards to 550m commonly 30 to 300m. It has advantages such as: working stable, structure compact. Most important of all, the Francis water turbine we made would work with high efficiency of about 92% to 94.5%.



2. Product Paramenters



Water Head 25m-300m
Runner Diameters 0.45m-5m
Power Range 100KW to 70MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.



3. Application

200kw-10mw Francis Water Turbine Generator  / Off Grid Hydro Generator 0







200kw-10mw Francis Water Turbine Generator  / Off Grid Hydro Generator 1

4. Our advantages



1) Provide complete proposal for hydro power plant from water to wire



2) Abundant foreign power plant project implementation experience



3) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase



200kw-10mw Francis Water Turbine Generator  / Off Grid Hydro Generator 2





5. FAQ



1) Payment terms

L/C, 30% T/T in advance.



2) Delivery period

Normally 6 months after confirmation of orders.



3) Package

We will use wooden box and plastic film to protect the products.



4) What Kind of hydroelectric generator should I choose?

This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.



200kw-10mw Francis Water Turbine Generator  / Off Grid Hydro Generator 3

Please can you send me below parameters, so our engineers could support your project?
Where is the plant? How many kw each unit? How many units?
1. Design head: ___m
2. Design flow: ___m³/s
3. Frequency: 50Hz or 60Hz
4. M.a.s.l: ___m
5. Power factor COSφ:
6. Generator output voltage: __V
7. On-grid or Off-grid type? (On-grid type voltage: ____Kv)
8. Basic situation about the project and your company introduction.
Send enquiry to the supplier

Friendly reminder: The price of this product is not the actual price, because our products are non-standard customized, please contact customer service to provide the water head and flow rate, select the model on-site quotation, and then place the order. Welcome to visit, thank you!
