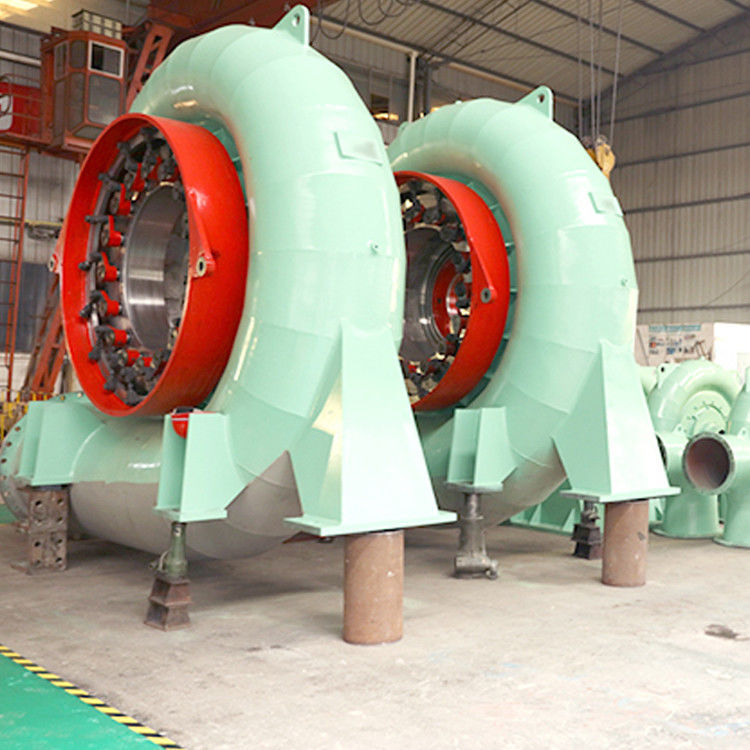

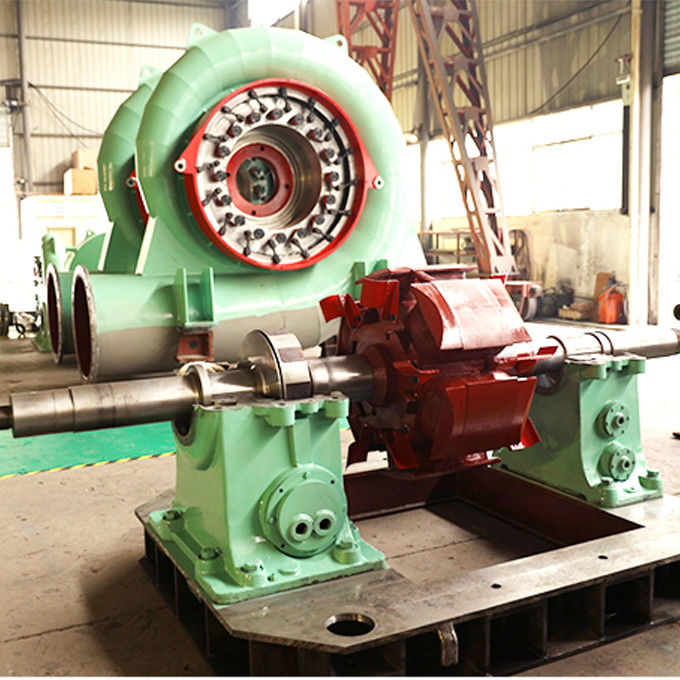

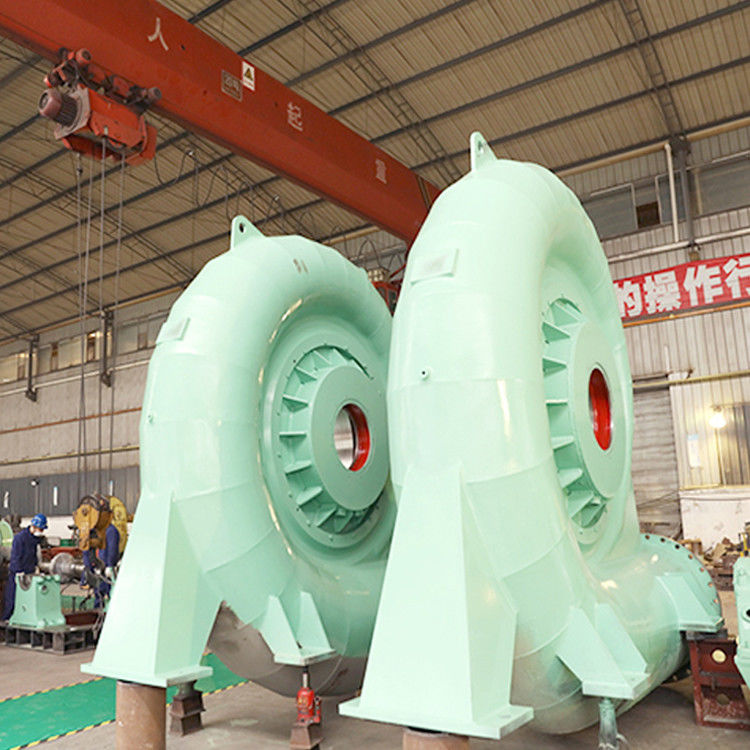

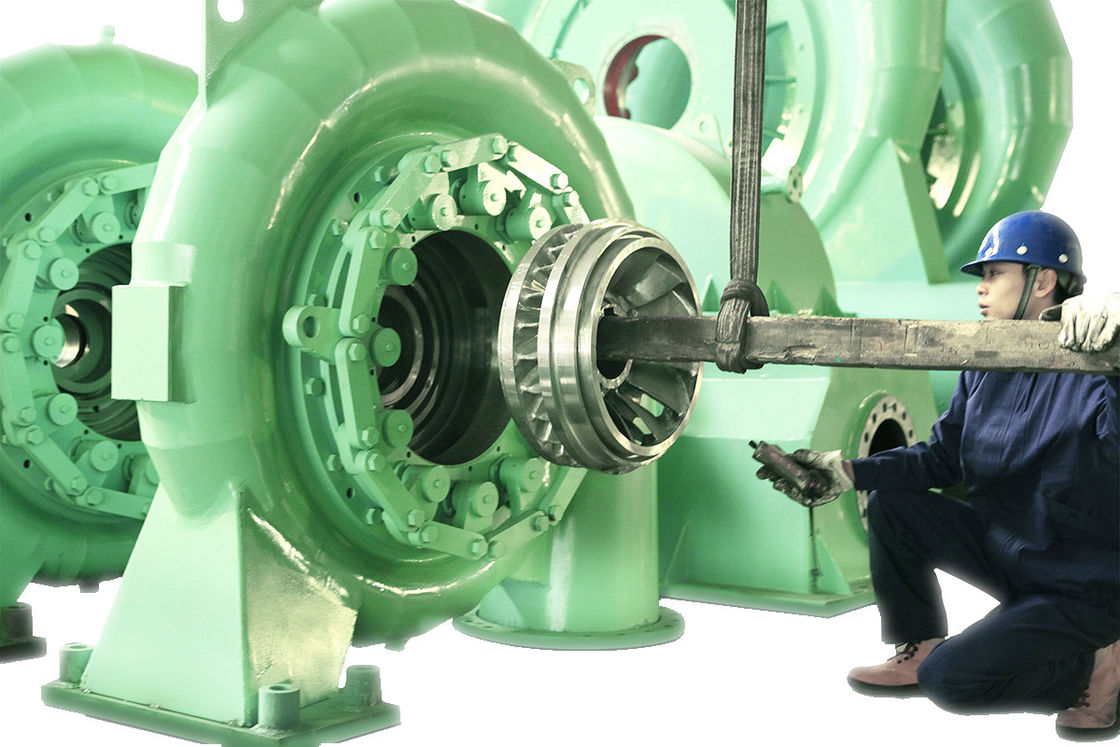

500kw Low Head Francis Turbine Generator Used In Hydroelectric Power Plant

1. Francis turbine has the advantages of compact structure, high efficiency and can adapt to a wide range of water head of turbine type. It is one of the widely used around the world;

2. When the water flow through the turbine wheel, it enters to radial, axial flow, so it is also called the radial axial flow turbine;

3. Francis turbine is also called the Francis turbine. The water flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade;

4. It is applicable to the head from a range of 20 meters of up to 700 meters, has the advantages of simple structure, stable operation, and high efficiency, but it is generally used in the head in the range(50 to 400 meters). Single output from tens of KW to several 101000 tile. At present this kind of turbine maximum output has exceeded 700000 kilowatts. A turbine is one of the most extensively used.



Application


                                                             01. francis turbine 2*2000kw


                                       02.francis turbine 3*630kw


    This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.

our factory
