Impulse Type Turgo Water Turbine Generator For 30-400 meter Water Head
Impulse Type Turgo Water Turbine Generator For 30-400 meter Water Head
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: china
Brand Name: DSSD
Certification: iso,tuv
Model Number: turgo turbine
High Light:

water powered generator


water powered turbine


400m Water Turbine Generator

Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 6 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Efficiency: 85%-93%
Rated Rotor Speed: 200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification: CE
Speed Range: 150RPM-1000RPM
Application: Grid-tie Power System,water Power,Electricity Generation,Hydro Turbine Speed Control,On-grid/Off-grid
Generator Type: 3 Phase AC,Synchronous
Product Name: Turgo Turbine,Hydro Power Generator Stator And Rotor,river Dam Small Hydro Pelton Wheel Hydro Turbine,Hydro Turbine Type Equipment Water Turbine And Generator,Pelton Water Turbina Wheel With Nozzles And Pelton Generator For Sale
Color: Green Or Customer's Requirements,Customized Color
Type: Turgo Turbine
Frequency: 50Hz Or 60Hz
Water Head: From 40m To 250m,4m To 100m,70-200m,20-40 M,30-350m
Product Description

Hydro Water Turgos Turbine Turbine


1. Brief Introduction


Turgo turbine is a type of Impulse turbine need less water head than Pelton turbine, transfers the water dynamic energy through the nozzle, impact on the Turgo runner, and then drive the generator transfer to electrical energy. The main different between Turgo turbine and Pelton turbine is the angle of runner center line and jet center line.Turgo turbine suit to 30-400meter water head, and water flow 30L /s -2000L/s, and output range from 10Kw to 3200Kw; runner diameter form 32cm to 80cm. Turgo turbine designed as horizontal simple structure, less investment, high efficiency, and reliable long service life.

1, Suitable water head : 30-400m

2, Output scope : 10Kw -3200Kw

3, Runner diameter : 32cm -800cm

4,Runner material :cast or welded stainless steel

5, Arrangement type : Horizontal

6, Nozzle numbers : 1-2


2.Product Paramenters


Water Head 15m-300m
Runner Diameters 0.3m-1m
Power Range 100KW to 2MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.

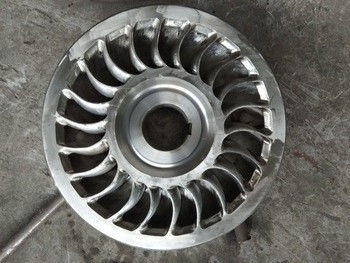

Impulse Type Turgo Water Turbine Generator For 30-400 meter Water Head 0



4. Why choose us?


1. More than 30 years of industry experience, install commissioning more than 150 equipment each year

2. Provide complete proposal for hydro power plant from water to wire

3. Abundant foreign power plant project implementation experience

4. Design and manufacture of hydro power generator with voltage 400V

5. FAQ


This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.

Please can you send me below parameters, so our engineers could support your project?

Where is the plant?

1. Design head: ___m

2. Design flow: ___m³/s

3. Frequency: 50Hz or 60Hz?

4. Unit Capacity: ___KWHow many kw each unit? How many units?

5. Power factor COSφ:

6. Generator output voltage: __V

7. On-grid or Off-grid type? (On-grid type voltage: ____Kv)

8. M.a.s.l: ___ m

9. Basic situation about the project and your company introduction.
