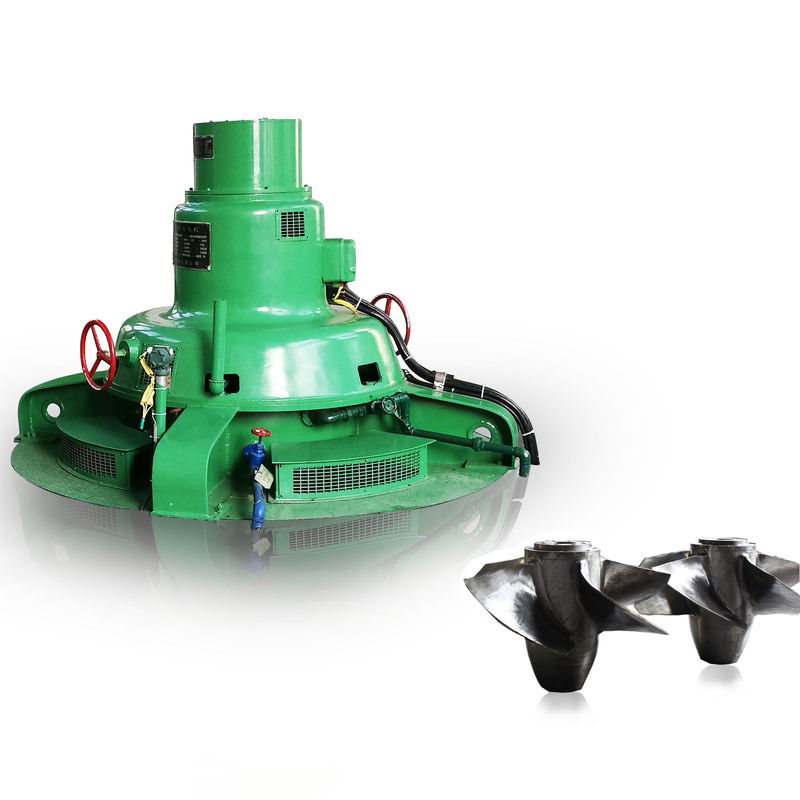

Axial Flow Type Micro Hydro Turbine Generator With Fixed / Adjustable Blades

Axial Flow Type Micro Hydro Turbine Generator With Fixed / Adjustable Blades

hydro power generator

water powered generator

200rpm Micro Hydro Turbine Generator

Place of Origin:

china

Brand Name:

DSSD

Certification:

iso,tuv

Model Number:

kaplan turbine

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Efficiency:
85%-93%
Runner Material:
Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Oem:
Yes
Rated Rotor Speed:
200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification:
CE
Speed Range:
150RPM-1000RPM
Application:
Grid-tie Power System,water Power,Electricity Generation,Hydro Turbine Speed Control,On-grid/Off-grid
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
6 months
Payment Terms
D/P, D/A, L/C, T/T
Supply Ability
1000SET
Product Description

Micro Hydro Turbine Price/Hydro Generator Kaplan Turbine/Blue





1. Brief Introduction



The propeller and Kaplan turbines are reaction turbines of the axial flow type.The difference between the propeller and Kaplan turbines is the propeller turbine has fixed runner blades while the Kaplan turbine has adjustable runner blades.



2. Product Paramenters



Water Head 5m-60m
Runner Diameters 0.5m-5m
Power Range 100KW to 70MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd


3. Application



Axial Flow Type Micro Hydro Turbine Generator With Fixed / Adjustable Blades 0





4. Our advantages



1) We have senior engineering and technical experts, professional hydro-generator design team and installation team



2) Provide complete proposal for hydro power plant from water to wire



3) Abundant foreign power plant project implementation experience



4) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase



5. FAQ



1) Payment terms

L/C, 30% T/T in advance.



2) Delivery period

Normally 6 months after confirmation of orders.



3) Package

We will use wooden box and plastic film to protect the products.



4) What Kind of hydroelectric generator should I choose?

Hydro turbine is a customized product, please let us know the details as follows, then we can provide the correct price for you.

1. Unit Capacity: ___KW

2. Water head:___M

3. Water flow:____M3/s

4. Frequency: 50HZ or 60HZ
