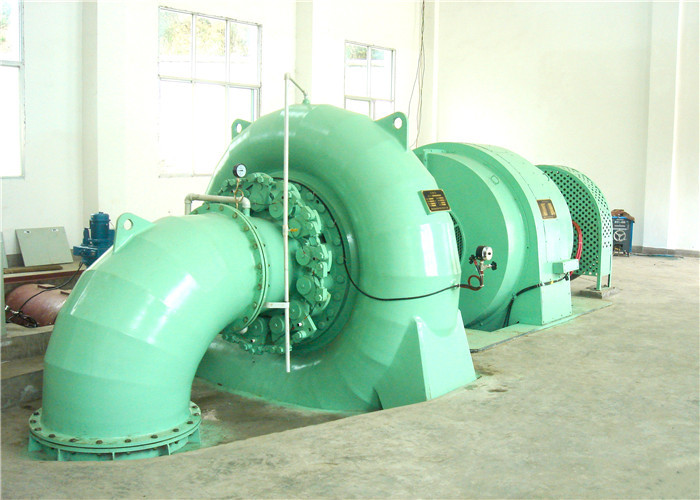

500KW Francis Turbine Generator Hydroelectric Water Turbine Long Using Life

500KW Francis Turbine Generator Hydroelectric Water Turbine Long Using Life

francis hydro turbine

francis water turbine

Place of Origin:

china

Brand Name:

DSSD

Certification:

iso,tuv

Model Number:

francis turbine

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Product Name:
Water Turbine
Efficiency:
85%-93%
Runner Material:
Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Color:
Green Or Customized Color
Rated Rotor Speed:
200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification:
CE
Frequency:
50HZ/60HZ
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
6 months
Payment Terms
D/P, D/A, L/C, T/T
Supply Ability
1000SET
Product Description

Alternative Energy Generators Full Set/Francis Turbine Generator/Water Turbine 500KW







Product Description



Francis Turbine are mostly suitable for hydro-power stations with medium or high head. The Francis type turbines manufactured by the Fuchun are compact in structure, reasonable in design, convenient in operation and maintenance and excellent in efficiency. also called mixed flow turbine and variable pressure turbine, is widely used in hydropower plants with low, middle and high water head ranging from 25m onwards to 550m commonly 30 to 300m. It has advantages such as: working stable, structure compact. Most import of all, the Francis water turbine we made would work with high efficiency of about 92% to 94.5%.



product show





Product Details

500KW Francis Turbine Generator Hydroelectric Water Turbine Long Using Life 1

Water Head

25m-300m



Runner Diameters

0.45m-5m



Power Range

100KW to 20MW



Frequency

50HZ/60HZ



Generator Voltage

400V, 800V, 6300V, 10500V



Layout pattern

Horizontal or Vertical



Material(blades)

Stainless Steel ZG0Cr13Ni4Mo



Excitation

Brushless or Static excitation system



Generator Insulation


F/F



Lifespan

30~50 years



Manufacturer

Deyang Dongsen Hydropower Equipment Co., Ltd.









Project Application




500KW Francis Turbine Generator Hydroelectric Water Turbine Long Using Life 2



                                                 01 Project Application



500KW Francis Turbine Generator Hydroelectric Water Turbine Long Using Life 3



                                                  02 Project Application



This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.

our factory

Main Product

MAIN PRODUCTS



We could supply Francis turbine, Pleton turbine, Kaplan turbine, Propeller turbine, Tubular turbine etc. as well as butterfly valves, gate valves, ball valves, and all kinds of electrical panels.



DSSD is an experience EPC supplier for hydropower plant and served for more than 500 hydropower plants and our engineers have more than 30 years' experience.



ONE STOP PURCHASE FROM WATER TO WIRE DESIGN TO POWER



                                    YOUR BEST PARTNER

500KW Francis Turbine Generator Hydroelectric Water Turbine Long Using Life 4





Company Information





Deyang Dongsen Hydropower Equipment Co., Ltd. is a professional comprehensive technology engineering company including the design, manufacturing, installation and maintenance of hydropower equipment as well as in the hydropower station investment.



We have five main water turbine generator set categories: Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine. Each type of turbine generator set capacity could be 100~50000KW.



Our company is located in Deyang, one of the three major manufacturing bases of China's heavy industry. We have our independent factory, office as well as living area. Having provided equipment more than 500 hydropower stations with our 70 professional staffs, Dongsen has a high reputation in the water turbine generator set manufacturing industry.



The ISO9001:2008 quality management system and BV, TUV factory audit would guarantee the high quality of our products. 30 years' experience engineers and the new design will be your best support for hydropower projects.



We are sincerely welcome your visit and long cooperation.
