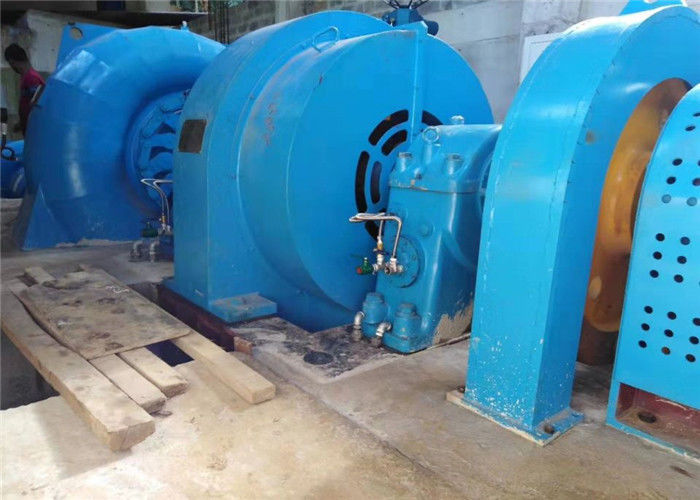

Francis Horizontal Vertical Hydro Power Turbine
1. Brief Introduction

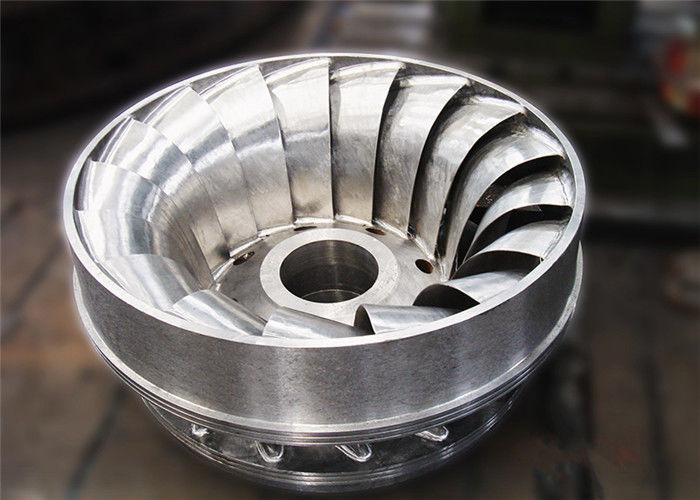

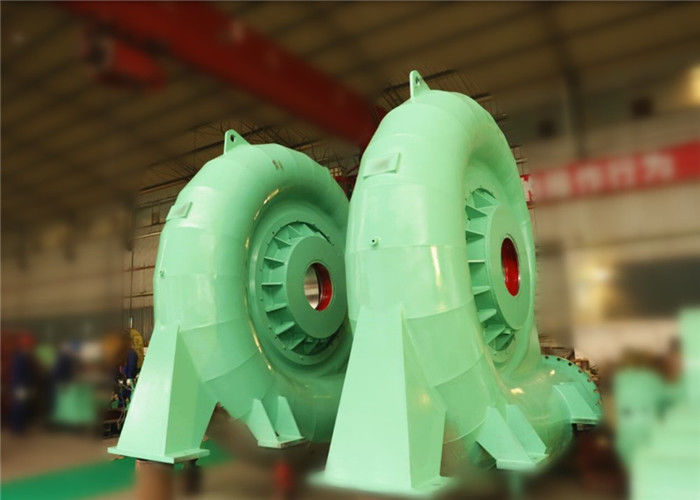

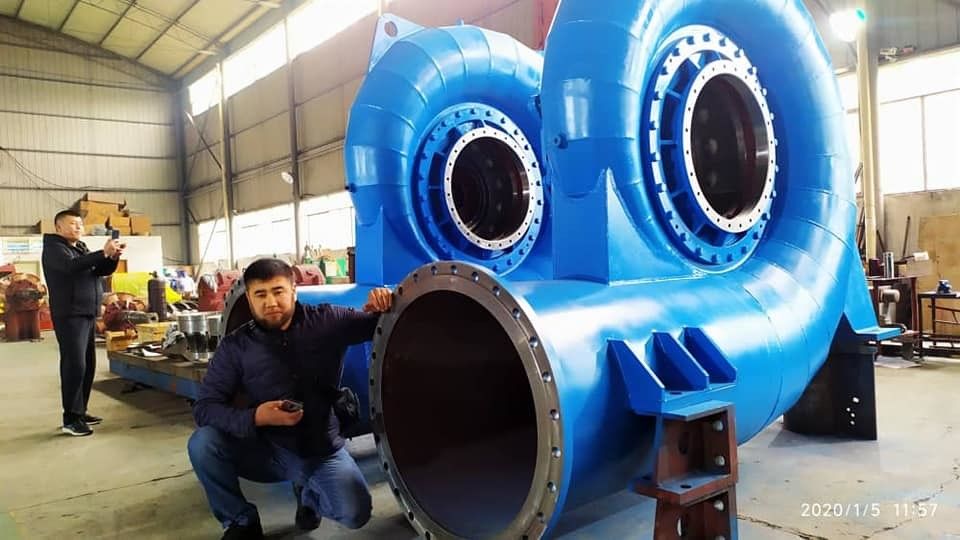

This is a Francis Turbine, it also named mixed flow turbine generator. it has the advange of compact structure and high efficiency, its applied water head from 20-150 meters, It is one of the most widely applied hydro turbine around the world.
Our Francis turbine capacity range from 300KW to 10MW, with fly wheel design, our francis turbine max efficiency could reach 97%. This turbine can be off-grid and on-grid running, its control system can be full automatic and semi-automatic.
The motor we used is brushless excitation motor, which is very easy to maintain, the customer doesn't have to change the carbon brush frequently, its voltage is very stable.
2. Product Paramenters
|Power Range||100KW to 20MW|
|Generator Voltage||400V, 800V, 6300V, 10500V|
|Layout pattern||Horizontal or Vertical|
|Material(blades)||Stainless Steel ZG0Cr13Ni4Mo|
|Excitation||Brushless or Static excitation system|
|Manufacturer||Deyang Dongsen Hydropower Equipment Co., Ltd.|
4. Our advantages
1) We have senior engineering and technical experts, professional hydro-generator design team and installation team
2) Provide complete proposal for hydro power plant from water to wire
3) Abundant foreign power plant project implementation experience
4) Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase
Our main products included:
(1) Kaplan turbine generators series.
(2) Turgo turbine generators series.
(3) Tubular turbine generators series.
(4) Francis turbine generators series.
(5) Pelton turbine generators series .
1) Delivery period
Normally 6 months after confirmation of orders.
We will use wooden box and plastic film to protect the products.
3) What Kind of hydroelectric generator should I choose?
Normally when you require, please let us know the details as follows, then we can provide the correct price for you.
1. Unit Capacity: ___KW
3. Water flow:____M3/s
4. Frequency: 50HZ or 60HZ
