Place of Origin:
deyang china
Brand Name:
DSSD
Certification:
iso,tuv
Model Number:
kaplan turbine generator
Contact Us

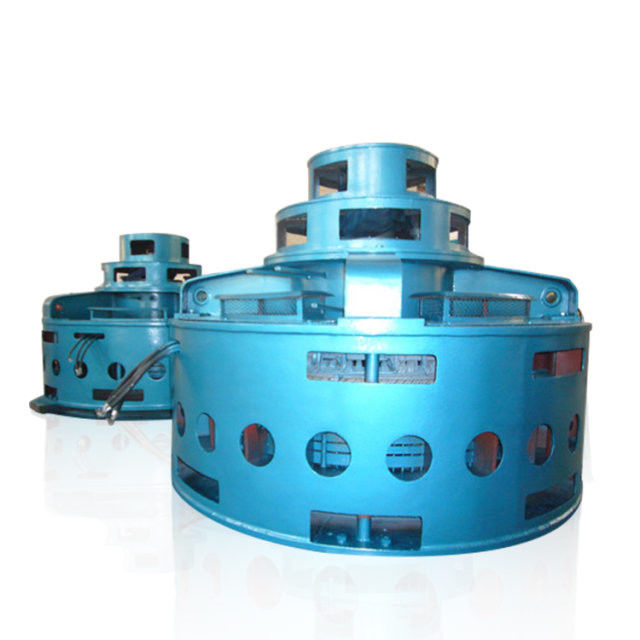

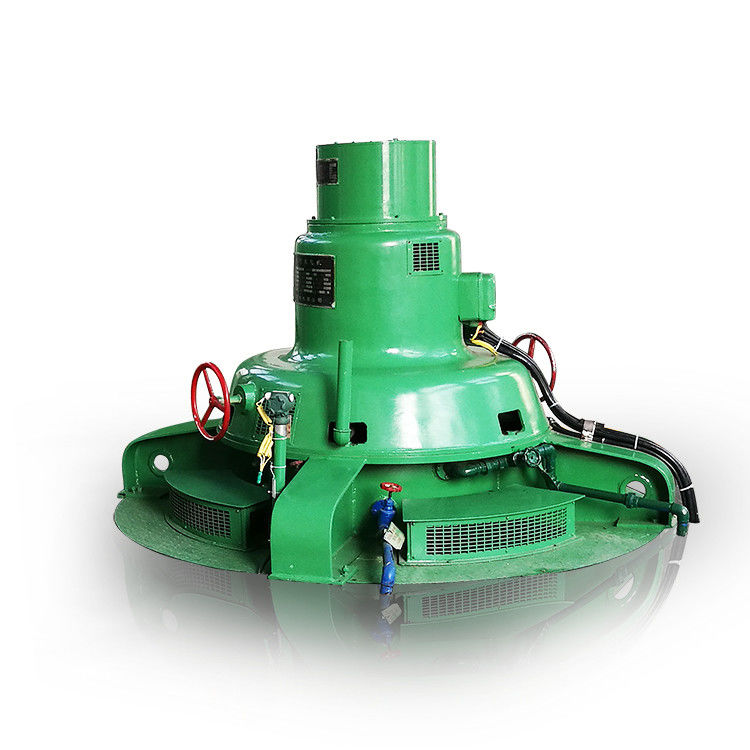

Small Water Turbine Generator And Micro Water Turbine Generator For Hydro Power Plant EPC Project
Axial Flow Turbine is used in hydropower plants with low and middle water head commonly ranging from 3m to 30m. It can be divided into Propeller /Fix Blade Type (ZD) and Kaplan/ Movable Blade Type (ZZ), Propeller turbine is used in the power plant whose flow varies little. Kaplan turbine is used in the power plant with the flow varying much; its adjustable blades can change the angle automatically so that it can guarantee high efficient operation under different flow and load.
Product Details

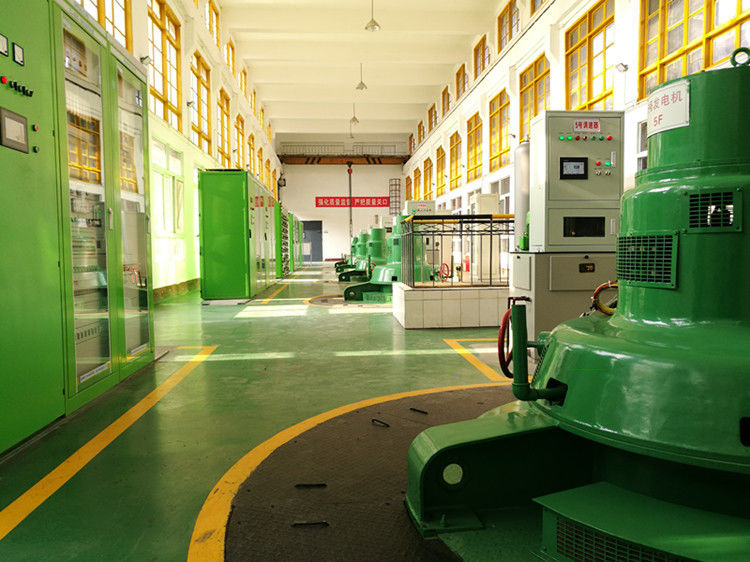

Power House
| Water Head | 15m-300m |
| Runner Diameters | 2m-11m |
| Power Range | 500KW to 50MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or Static excitation system |
| Generator Insulation | F/F |
| Lifespan | 30~60 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co., Ltd. |
We are sincerely welcome your visit and long cooperation.
