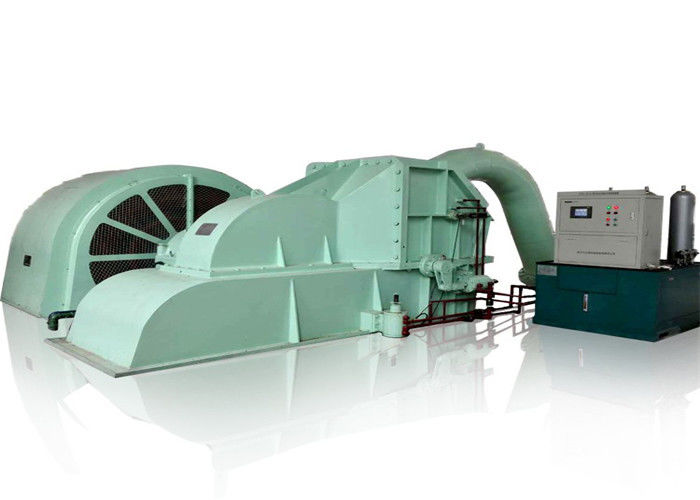

Pelton Type 150kw Hydro Turbine Generator ,Micro Hydroelectric Turbine
1
MOQ
Negotiation
Price
Pelton Type 150kw Hydro Turbine Generator ,Micro Hydroelectric Turbine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: DSSD
Certification: iso,tuv
Model Number: francis turbine
High Light:

pelton hydro turbine

,

pelton wheel hydro generator

Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 6 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Specifications
Rated Rotor Speed: 200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification: CE
Voltage: 400V/50-60hz Optional,220/380v,10.5KV Or 13.8KV Etc.
Generator Type: 3 Phase AC,Synchronous
Color: Green Or Custom Color
Output Voltage (v): 400
Electricity Generator Type: Hydro Power
Power Range: 50KW-70MW
Product Description

Hight Head Pelton Turbine/Pelton Turbine Generator/High Quality Pelton Turbine





1. Product Description



Pelton turbine also called a free-jet turbine or Pelton wheel, a type of Impulse turbine, named after L. A. Pelton who invented it in 1880. Water Passes through nozzles and strikes spoon-shaped buckets or cups arranged On the periphery of a runner, which causes the runner to rotate, producing Mechanical energy. The runner is fixed on a shaft, and the rotational motion Of the turbine is transmitted by the shaft to a generator.



Pelton Type 150kw Hydro Turbine Generator ,Micro Hydroelectric Turbine 0

Pelton Turbine is used in hydropower plants with middle and high water head, generally ranging from 90 m to

600 m, the maximum water head can reach 1200 m. It can be divided into single nozzle type and multiple

nozzle type.





 2. Product Details

Pelton Type 150kw Hydro Turbine Generator ,Micro Hydroelectric Turbine 1


3.Project Application



Pelton Type 150kw Hydro Turbine Generator ,Micro Hydroelectric Turbine 2

                                                                 01.Project Application

Pelton Type 150kw Hydro Turbine Generator ,Micro Hydroelectric Turbine 3

                                                                02.Project Application



This belongs to customized products. We could design products according to your requirement.

All of our products are strictly designed and manufactured under ISO9001 quality management

system and TUV, BV.our factory



4. Main Product

We could supply Francis turbine, Pleton turbine, Kaplan turbine, Propeller turbine, Tubular turbine etc.

as well as butterfly valves, gate valves, ball valves, and all kinds of electrical panels.



DSSD is an experience EPC supplier for hydropower plant and served for more than 500 hydropower

plants and our engineers have more than 30 years' experience.





 5.About us



DSSD Hydro  -

Deyang Dongsen Hydropower Equipment Co., Ltd. is located in Deyang City, Sichuan province, China, and established in 2 0 0 7.Deyang is one of the three major manufacturing bases in China. It offers strong support of resource allocation for us. Dongsen is a professional comprehensive engineering company, especially in hydropower projects fileds. Our main business is designing and manufacturing hydraulic turbine generator sets as well as E P C for hydro-power stations, providing new hydro equipment, auxiliaries, installing transmission lines, designing projects, upgrading capacity, maintaining equipment and investing hydropower stations. Our products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine generator sets with capacity from 1 0 0 kilowatt to 5 0, 0 0 0 kilowatt. Dongsen's technical team has 2 0 years experience in hydropower equipment, and we have 4 development staffs and 37 skillful technicians. Dongsen has strong technical competence, modern production capacity, scientific management. We passed I S O 9 0 0 1: 2 0 0 8 quality system certification. Dongsen has already provided reliable products and excellent services for more than 5 0 0 hydropower stations. Our motto is Customer, Quality and Reputation is the first. We acquired high reputation from customers and cooperators. Today, The One Belt One Road policy provides us more opportunities to do business all over the world. Dongsen is pursuing to be a top-class hydropower equipment supplier. Dongsen sincerely welcome you to visit our factory and be our cooperator.



  6.FAQ



1. You are a trading company or a manufacture?


We are a hydro turbine generator manufacturer supplied equipment for more than 500HPPs. The engineers have over 30 years' experiences. Our factory is in Deyang city, Sichuan, you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us and discuss the details.

2. What Kind of hydropower micro should I choose?


We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.

3: Can you do the EPC for the hydro power plant?


Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.

4: What the packing of the equipment?


We will use wooden box or plastic film to protect the products.
