100 Kw Francis Turbine Generator / Water Turbine Power Generator Compact Structure
1
MOQ
Negotiation
Price
100 Kw Francis Turbine Generator / Water Turbine Power Generator Compact Structure
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: DSSD
Certification: iso,tuv
Model Number: francis turbine
High Light:

francis hydro turbine

,

francis water turbine

Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 6 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Specifications
Material: Stainless Steel
Product Name: Francis Turbine For Sale Francis Turbina Generator Hydropower
Efficiency: 85%-93%
Runner Material: Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Oem: Yes
Rated Rotor Speed: 200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification: CE
Speed Range: 150RPM-1000RPM
Product Description

100 Kw Generator/Francis Turbine Generator/Francis Turbine for Mini Hydroelectric





1. Product Description



1). Francis turbine has the advantages of compact structure, high efficiency and can adapt to a wide range of water head of turbine type. It is one of the widely used around the world;



2). When the water flow through the turbine wheel, it enters to radial, axial flow, so it is also called the radial axial flow turbine;



3). Francis turbine is also called the Francis turbine. The water flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade;



4). It is applicable to the head from a range of 20 meters of up to 700 meters, has the advantages of simple structure, stable operation, and high efficiency, but it is generally used in the head in the range(50 to 400 meters). Single output from tens of KW to several 101000 tile. At present this kind of turbine maximum output has exceeded 700000 kilowatts. A turbine is one of the most extensively used.

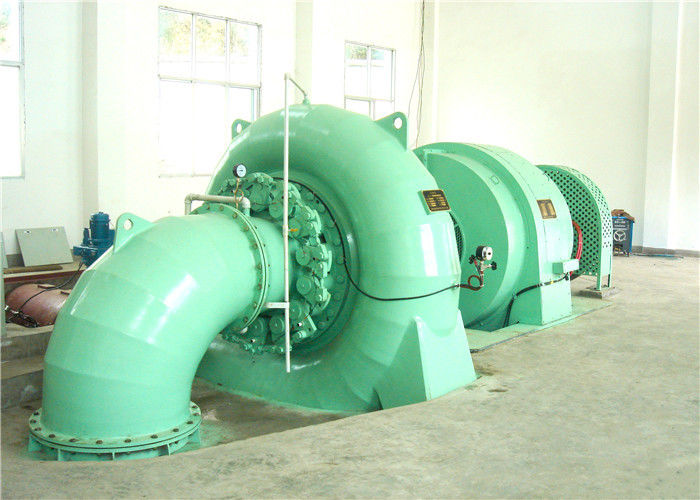

100 Kw Francis Turbine Generator / Water Turbine Power Generator Compact Structure 0





2. Product Details

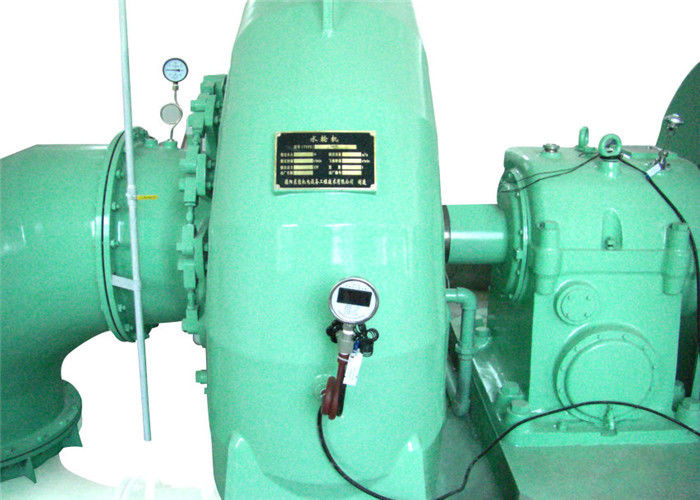

100 Kw Francis Turbine Generator / Water Turbine Power Generator Compact Structure 1











Water Head 25m-300m
Runner Diameters 0.45m-5m
Power Range 100KW to 70MW
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V, 10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co., Ltd.




3. Project Application

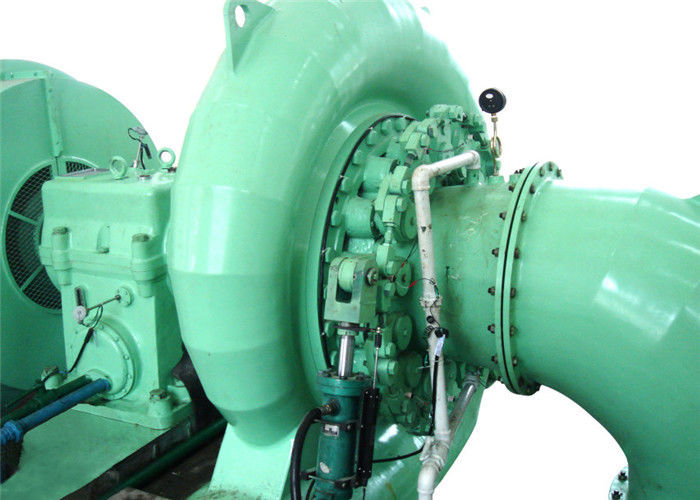

100 Kw Francis Turbine Generator / Water Turbine Power Generator Compact Structure 2



                                                                                  01Application Case



100 Kw Francis Turbine Generator / Water Turbine Power Generator Compact Structure 3



                                                                                       02Application Case



This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.

our factory



4. Main Product



We could supply Francis turbine, Pleton turbine, Kaplan turbine, Propeller turbine, Tubular turbine etc. as well as butterfly valves, gate valves, ball valves, and all kinds of electrical panels.



DSSD is an experience EPC supplier for hydropower plant and served for more than 500 hydropower plants and our engineers have more than 30 years' experience.
