Pelton Wheel Micro Hydro Generator Runner 45cm-180cm CE Certification
1
MOQ
Negotiation
Price
Pelton Wheel Micro Hydro Generator Runner 45cm-180cm CE Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: DSSD
Certification: iso,tuv
Model Number: pelton runner
High Light:

water turbine runner

,

runner in hydro power plant

Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 3 months
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 1000SET
Specifications
Material: Stainless Steel
Efficiency: 85%-93%
Runner Material: Stainless Steel ZG06Cr13Ni4Mo Or Casting Iron
Oem: Yes
Rated Rotor Speed: 200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Certification: CE
Speed Range: 150RPM-1000RPM
Type: Generator,Water Turbine,hydro Turbine,pelton Turbine,Water Turbine/hydro Generator
Product Description

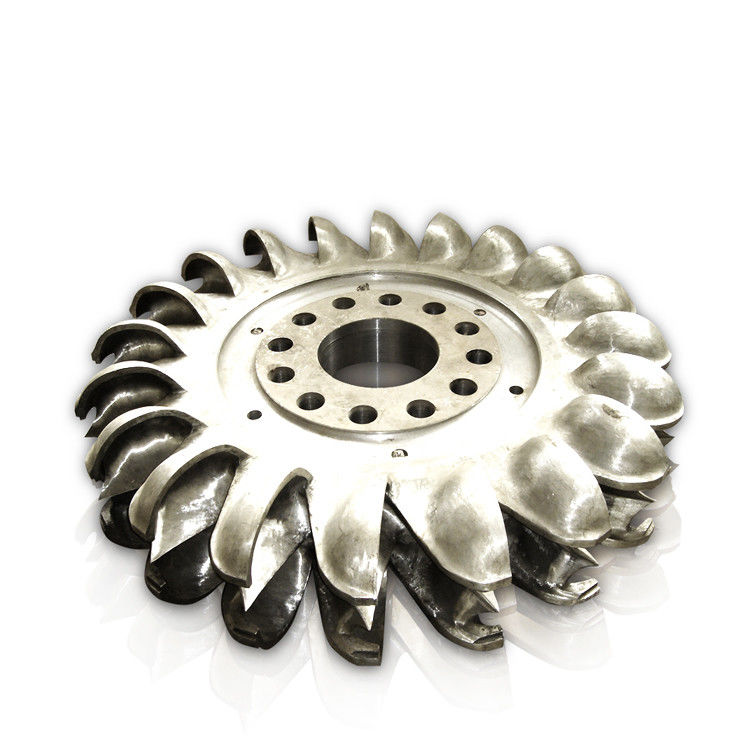

Pelton Hydro Turbine Runner



Product Paramenters





The working wheel of the impact turbine only partly passes water, and part of the water bucket works, so the flow rate of the turbine is small, so the output of the impact turbine is relatively small under a certain head and diameter of the working wheel. In addition, the speed of the full turbine is relatively low (this is because the absolute speed of the runner inlet is large and the peripheral speed is small), and the output is small, resulting in a low specific speed, so the impact turbine is suitable for high head and small flow.



Runner range 45cm-180cm
Speed range 150RPM-1000RPM
Efficiency 85%-93%
Description 100kw-70mw Low Price Pelton Turbine
Water head 90m-600m
Nozzle number Single/Multiple
Power range 300kw-20mw
Frequency 50Hz/60Hz
Generator Voltage 400v,800v,6300v,10500v
Layout pattern Horizontal or Vertical
Material Stainless Steel
Excitation Brushless or Static Excitation System
Generator Insulation F/F
Lifespan 30~50 years
Manufacturer Deyang Dongsen Hydropower Equipment Co.,Ltd



Application



Pelton Wheel Micro Hydro Generator Runner 45cm-180cm CE Certification 0





Our main products included:

(1) Kaplan turbine generators series.

(2) Turgo turbine generators series.

(3) Tubular turbine generators series.

(4) Francis turbine generators series.

(5) Pelton turbine generators series .





What Kind of hydroelectric generator should I choose?

This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.

Please can you send me below parameters, so our engineers could support your project?

Where is the plant?

1.Design head: ___m

2.Design flow: ___m³/s

3.Frequency: 50Hz or 60Hz?

4. Unit Capacity: ___KWHow many kw each unit? How many units?

5. Power factor COSφ:

6.Generator output voltage: __V

7.On-grid or Off-grid type? (On-grid type voltage: ____Kv)

8. M.a.s.l: ___ m

9.Basic situation about the project and your company introduction.
